Summary of Contents for Forest EasyTouch Remote

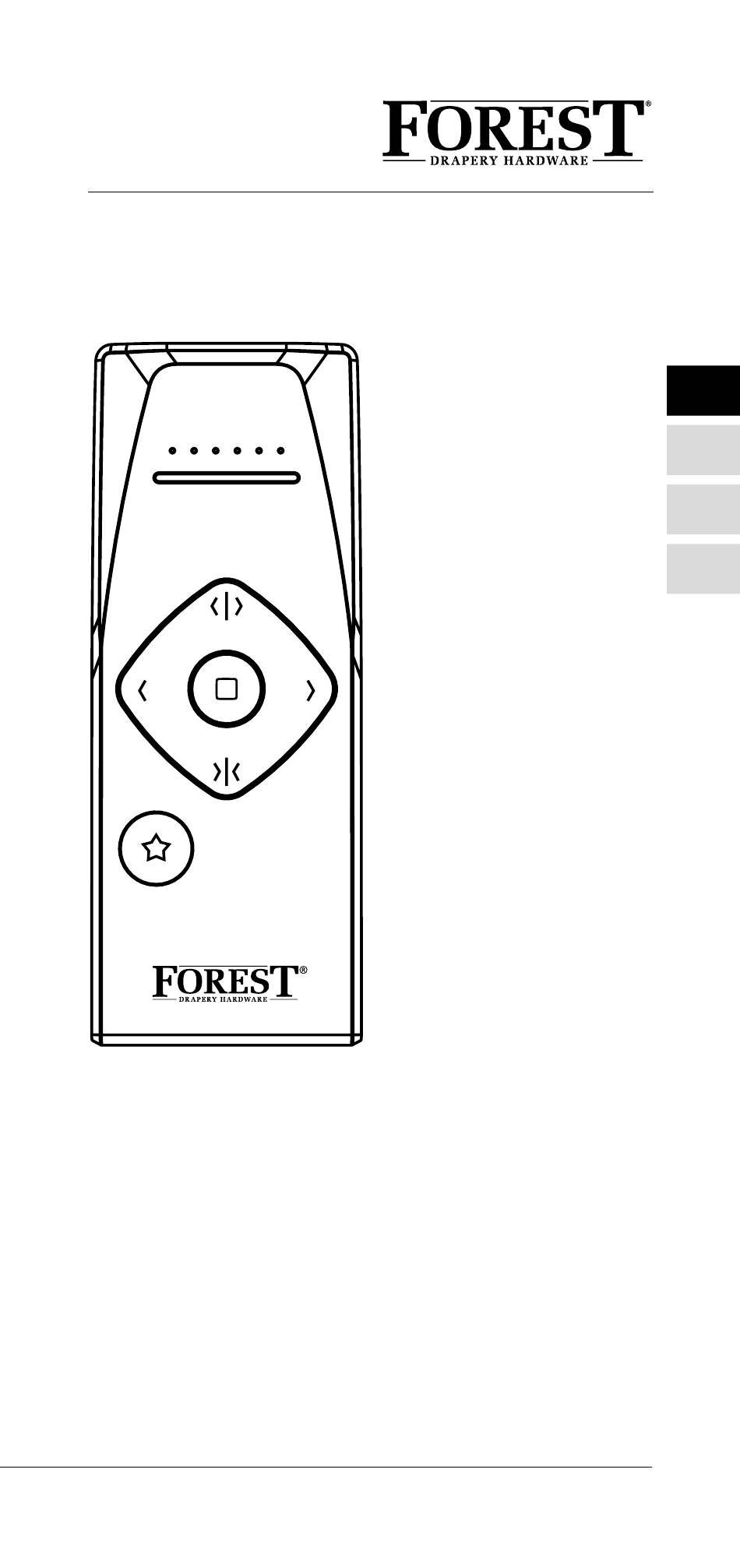

- Page 1 EasyTouch ® Remote USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Your EasyTouch remote control ® - Introduction - Accessories - Supported protocols - Declaration Of Conformity - Overview of the remote control - Functionality 2. Get started - Inserting the batteries - Motor pairing 3. How to use - Control the curtains - Child lock - Set number of active channels... -
Page 3: Your Easytouch ® Remote Control
, Forest tubular ® motors and Forest LED systems. In this manual, you will find all the information you need to get the most out of your Forest remote. GENERAL Please read this manual and the safety instructions carefully before using this Forest product. -
Page 4: Accessories
2x 3x20 stainless steel screw FEATURES & BENEFITS • 6-channel Forest RF control • Low battery alert • Child lock function • Utilizes Forest Link RF technology • Backwards compatible with original Forest RF protocol • 5 Year warranty SUPPORTED PROTOCOLS... -
Page 5: Declaration Of Conformity
DECLARATION OF CONFORMITY EU Declaration of Conformity Hereby we, the undersigned: Manufacturer: Forest Group Nederland B.V. Address; city, Country: Teugseweg 42, 7418 AM Deventer, The Netherlands Telephone number: +31 0570 622 850 Declare that this DoC is issued under our sole responsibility and that this product is:... -
Page 6: Overview Of The Remote Control

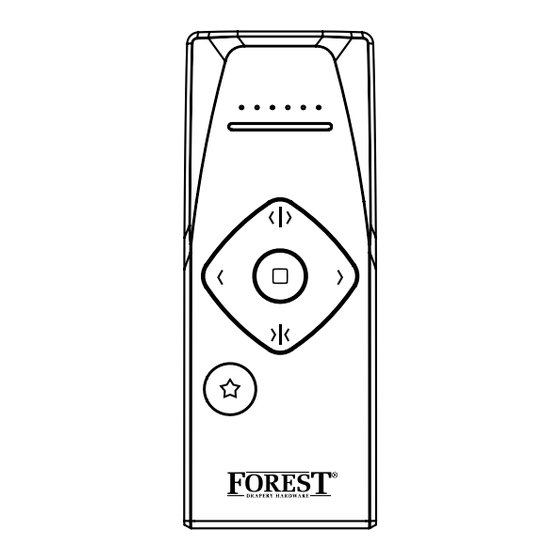

OVERVIEW OF THE REMOTE CONTROL Channel FRONT LED bar Stop Open Channel - Channel + Favourite Close BACK Program button 2x AAA battery YOUR EASYTOUCH REMOTE CONTROL ®... -
Page 7: Functionality
The Program button, enables users to access programming functions** This function works only with motors equipped with the Forest Link protocol. ** Refer to your motor’s manual for the functions of the program button. YOUR EASYTOUCH REMOTE CONTROL ®... -
Page 8: Get Started
2. Get started INSERTING THE BATTERIES 1. Press the cover on the back of the remote control and slide it upwards to reveal the battery compartment. 2. Insert the batteries, paying attention to match the (+) and (-) ends of the batteries with the symbols inside the battery compartment. -
Page 9: Motor Pairing
MOTOR PAIRING The remote control needs to be paired with the Forest device before it can be operated. To pair the remote control with the Forest motor or LED system, please refer to the user manual of the respective Forest motor or visit the webpage with all manuals and videos. -
Page 10: How To Use
3. How to use CONTROL THE CURTAINS 1. Navigate with LED indicates the channel number 3. Then press to open or close the curtains 4. Press to stop the curtains from moving CHILD LOCK: LOCKS ALL PROGRAMMING FUNCTIONS 1. Press for 10 seconds LED flickers once 3. -
Page 11: Set Up Favourites Function
[2 seconds] . The Favourites position is now cleared. Important: The Favourites function can only be set if the end positions are configured. This function only works with Forest motors that are equipped with the Forest Link protocol. HOW TO USE... -
Page 12: Notice
Do not dispose of the product with household waste. Ensure that you return it to a collection point or depot for recycling purposes. Forest Group (Netherlands) BV hereby declares that the product complies with the requirements of Directive 2014/53/EU. NOTICE... -
Page 13: Fcc Regulations
FCC REGULATIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 14: Support & Technical Specifications
If the batteries are almost empty, you need to replace them. • The EasyTouch remote control only works ® with Forest devices, such as Forest Shuttle ® Forest tubular motors with internal receiver and Forest LED systems with RF receiver. SUPPORT & TECHNICAL SPECIFICATION... -
Page 15: Technical Specification
• Transmit range indoor max. 30mtr • Transmit power max. < 0 dBm (ERP) • Working temperature 0°C - +50°C • Frequency 433.92MHz±100KHz • Radiocoding: Original Forest Protocol followed by Forest Link • Dimension: 130x50x20 • Weight: 78g incl. batteries (55g excl.) The images in this document are not binding. - Page 16 SCAN FOR INSTRUCTION VIDEO OR MANUAL www.forestgroup.com/en/installation-guides...
