TECHNICAL SPECIFICATION:
● 3V battery type CR2450
● battery life < 3 years
● frequency 433.92MHz
● transmit power max. 10mW
channel leds
1
2
3
4
5
6
OPEN/UP
button
STOP
button
CLOSE/DOWN
button
channel up/down
BATTERY EMPTY:
After changing the battery, programmed receivers will stay in memory of wall
switch. Please follow the local regulations for disposal of the empty battery.
You can recognize these Shuttle motors by the white antenna cable

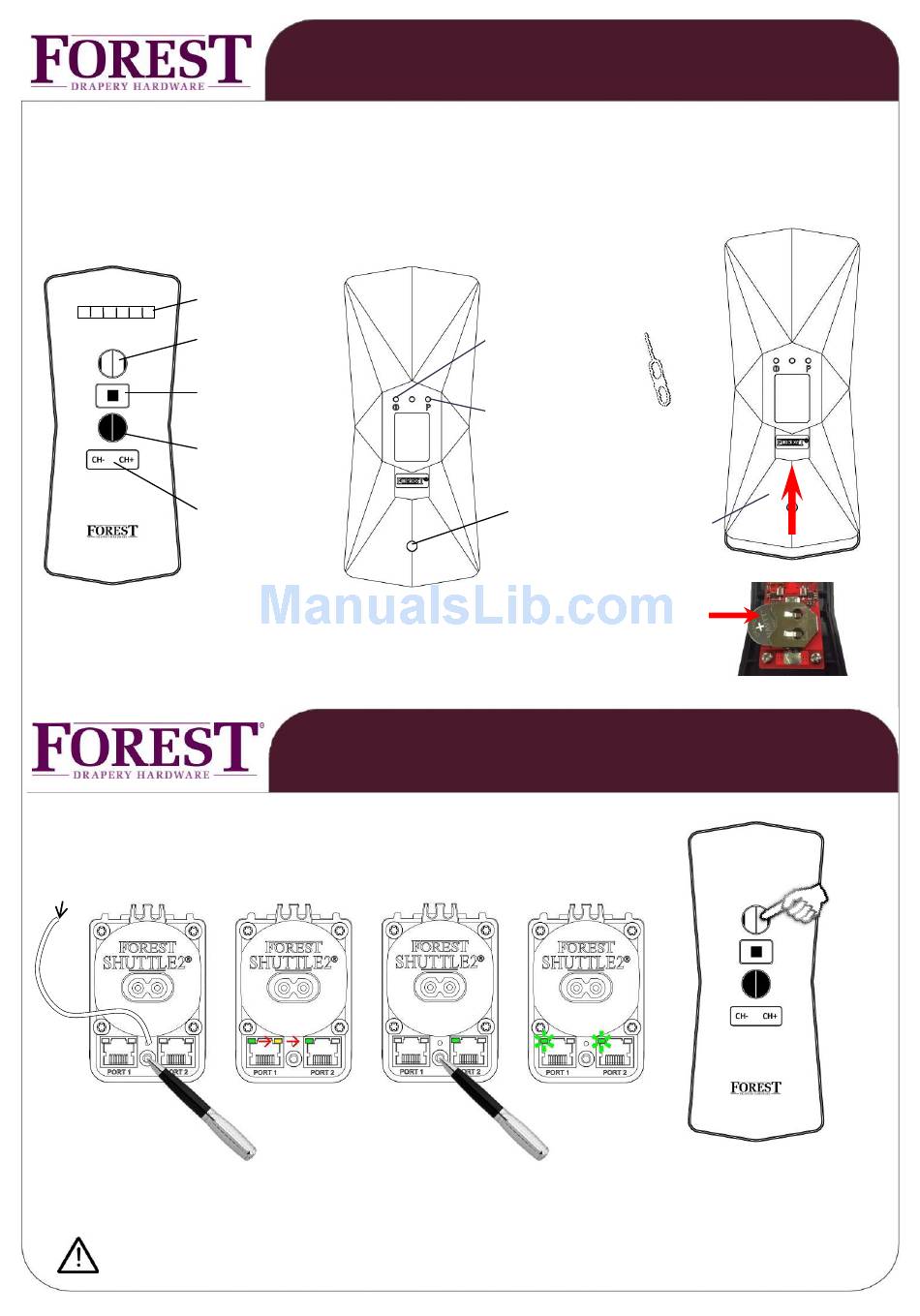

To program a Diamond Remote to a Shuttle S / L / M Receiver:
antenna
3x
Same procedure, but press CLOSE instead of OPEN, will erase the programmed channel.
Do not mount the motor within 1 meter from other equipment and receivers.
This will interfere with the receiver.
07/2016 WDOC Diamond remote

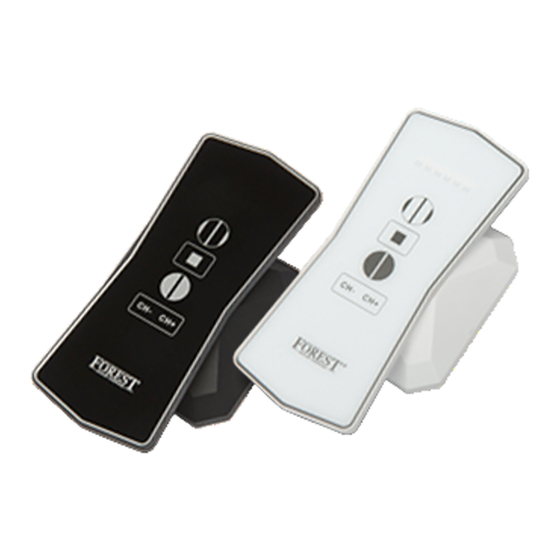

FOREST DIAMOND REMOTE – 520109X460
FOREST SHUTTLE S / L / M RECEIVER PROGRAMMING
LED MOVES FROM
1
st
→2
nd
→3
rd
LED
1x for 5 sec.
www.forestgroup.nl
● transmit range indoor max. 30mtr
● working temperature -10°C - +50°C
● each channel can control up to 20 receivers
switch on/off (keep
pressed 3 seconds)
P button (for program-
ming tubular motor)
INSERT BATTERY:
1. remove screw
2. slide back cover upwards
to open remote and slide
in battery, +side up
LED STARTS BLINKING
press 1x OPEN button
v1.4
