Technical specification and battery
Display, unlock and mode setting
Switching between 15 and 2 channels
Set time and day
Set automatic timer
TECHNICAL SPECIFICATION:
● 2x Alkaline battery type AAA, LR03
● battery life < 3 years
● frequency 433.92MHz
● transmit power max. 10mW
BATTERY EMPTY:
After changing the battery, programmed receivers will stay in memory of Diamond Sense remote.
Please follow the local regulations for disposal of the empty battery.
03/2019 WDOC Diamond Sense

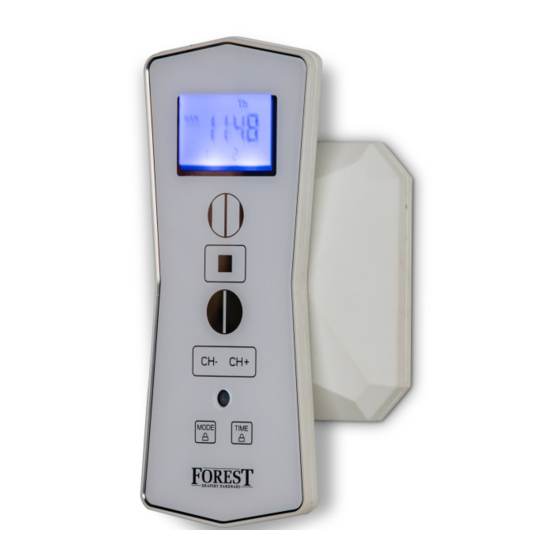

FOREST DIAMOND SENSE REMOTE – 520109X460
Content:
1
2
3
3
4
● transmit range indoor max. 30mtr
● working temperature -10°C - +50°C
● each channel can control up to 20 receivers

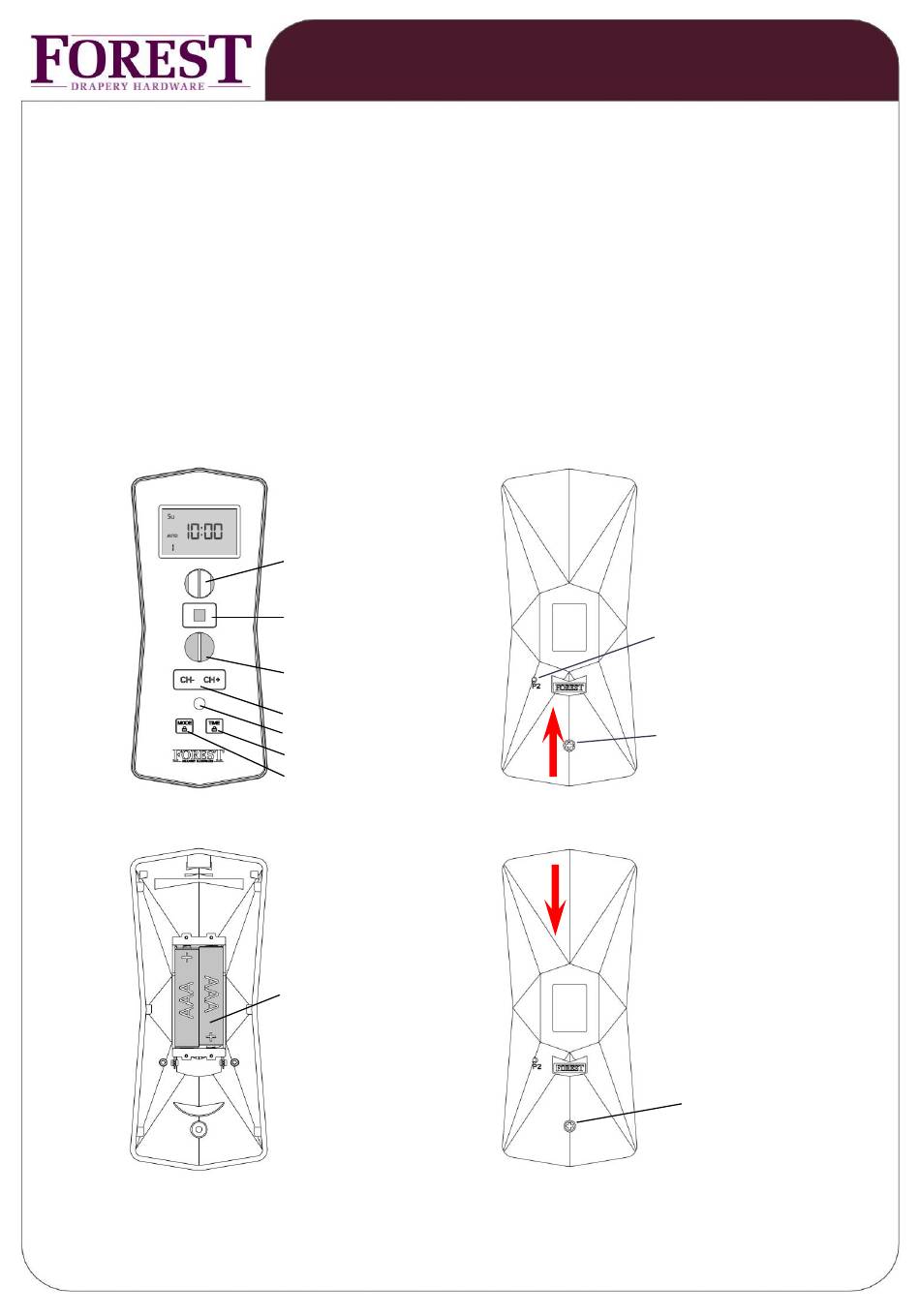

OPEN/UP
button
STOP
button
CLOSE/DOWN
button
channel up/down
movement sensor
TIME button
MODE button
insert 2x AAA battery
mind the + and -
www.forestgroup.com
Programming Shuttle motor S / M / L
Programming Shuttle click-on receiver
Programming external receiver
Programming tubular and BS motor
P2 button (for program-
ming tubular motor)
INSERT BATTERY:
remove the screw and
slide back cover upwards
to open remote
slide the back cover
downwards and fix
the screw
5
6
7
8
v1.2
Advertisement
Related Manuals for Forest DIAMOND SENSE REMOTE
Summary of Contents for Forest DIAMOND SENSE REMOTE
- Page 1 BATTERY EMPTY: After changing the battery, programmed receivers will stay in memory of Diamond Sense remote. Please follow the local regulations for disposal of the empty battery. www.forestgroup.com 03/2019 WDOC Diamond Sense...
- Page 2 FOREST DIAMOND SENSE REMOTE – SETTINGS DISPLAY: day of the week mode time channel no. UNLOCK THE MODE AND TIME BUTTONS: Keep both buttons MODE and TIME pressed for about 4 seconds until the display shows ‘LOC’. Now you can set the mode and time.
- Page 3 FOREST DIAMOND SENSE REMOTE – SET TIME SWITCHING BETWEEN 15 AND 2 CHANNELS: Default setting of the Diamond Sense is 15 channels. Channel 1 up to 15 can be used. When desired, for example when you only have one or two motorized systems, you can change the setting to 2...
- Page 4 FOREST DIAMOND SENSE REMOTE – SET TIMERS SET AUTOMATIC OPEN AND CLOSE TIME (first unlock the buttons: press and hold MODE and TIME): In total up to 9 OPEN and 9 CLOSE timing positions can be set. For example use 4 points: Position 1: Ma-Tu-We-Th-Fr ...
- Page 5 FOREST SHUTTLE S / L / M RECEIVER PROGRAMMING You can recognize these Shuttle motors by the white antenna cable. To program a Diamond Sense to a Shuttle S / L / M Receiver, first select the desired channel and proceed:...
- Page 6 1 of the Forest Shuttle M • working temperature -10°C - +50°C • controlled by Forest Multi Remote and Forest Multi Wall Switch RF control led program button Do not mount within 1 meter from other equipment and receivers.
- Page 7 FOREST FMS/BCS MULTI RECEIVER ̶ 5104011500 TECHNICAL SPECIFICATION FMS/BCS RECEIVER: ● power: 100 - 240Vac 50/60Hz – 500Wmax. ● controls one tubular or FMS motor. When more motors → use group relay ● can also be used as wall switch ●...
- Page 8 TUBULAR MOTOR AND BS 24V DOUBLE SHAFT MOTOR BUILD-IN RECEIVER AND ELECTRONIC LIMIT SETTING PROGRAMMING REMOTE ADD MORE REMOTES OR TO TUBULAR MOTOR: CHANNELS TO TUBULAR MOTOR CANCEL ALL REMOTES press button on motor, motor will ①st remote: press P button two times press P button one time turn short to acknowledge ①...
