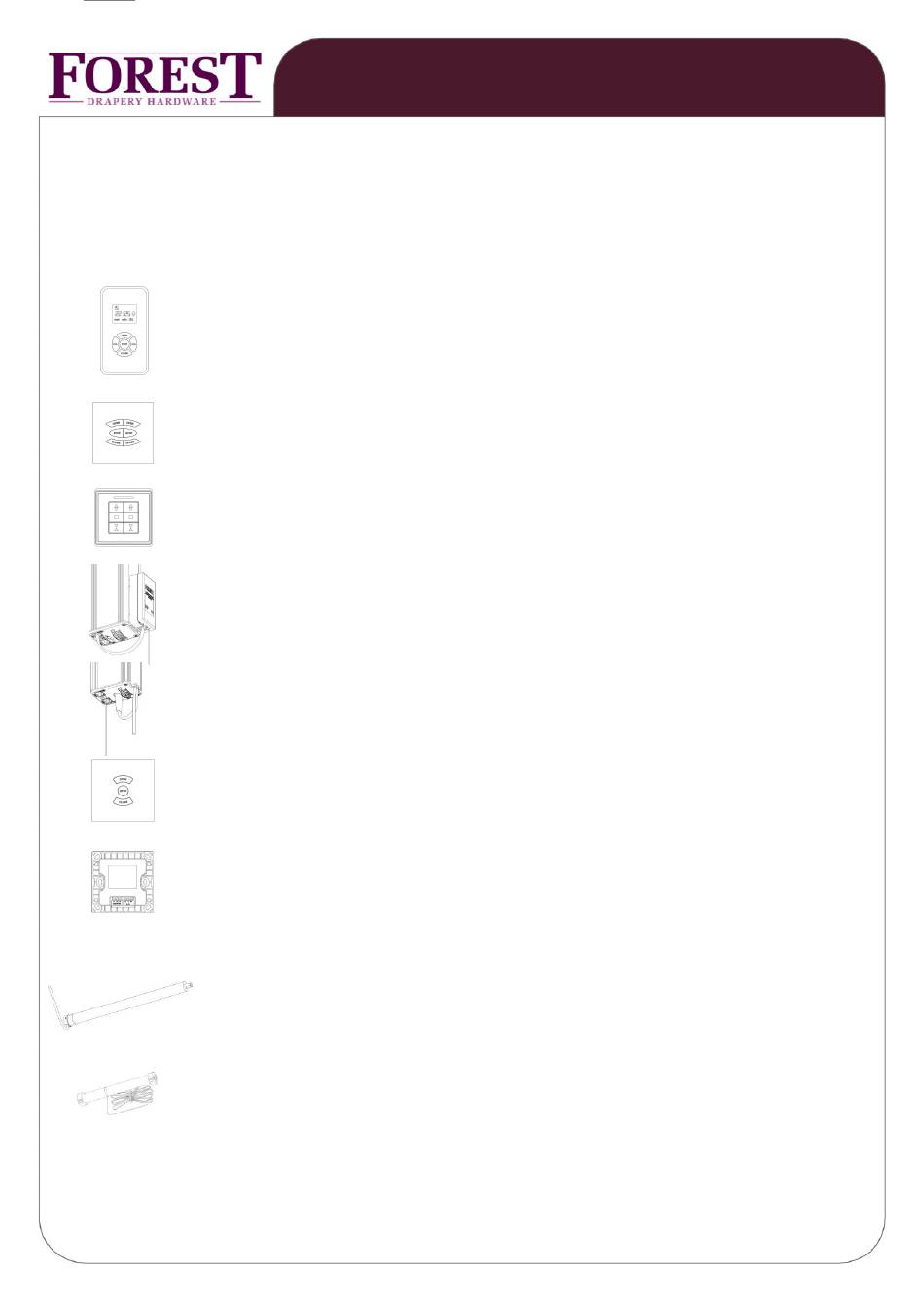

1
CONTENT
Forest FMS/BCS Multi receiver - 5201.01.1500
-
-
Tubular motor with build in receiver and electronic limit setting
-
wiring diagram
-
-
BS double shaft motor 24V - 3648.00.0000
-
programming remote
-
08/2014 WDOC MULTI REMOTE
MULTI RF MANUAL
www.forestgroup.nl
2
4
4
5
5
6
6
7
8
9
10
12
13
v1.91
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Forest 5201.00.X64X
Summary of Contents for Forest 5201.00.X64X
-
Page 1: Table Of Contents
Forest Multi wall switch LED – 5201.00.1480 Forest Multi receiver click-on – 5201.00.1362 Forest Shuttle S / L receiver programming – 5232.00.0000/1 Forest Multi receiver / wall switch for Shuttle M – 5201001360/1361 Forest FMS/BCS Multi receiver – 5201.01.1500 programming remote... -
Page 2: Forest Multi Remote - 5201.00.X64X
FOREST MULTI REMOTE – 520100X46X TECHNICAL SPECIFICATION: ● 3V battery CR2430 ● transmit range indoors max. 30mtr ● battery life < 3 years ● working temperature -10°C - +50°C ● frequency 433.92MHz ● modes: manual, timer and dynamic timer (15 minutes + and -) ●... - Page 3 FOREST MULTI REMOTE – 520100X46X MODE EXPLANATION: Mode manual (man): remote can only be used manually. Timer function is switched off. Mode automatic (auto): timer is switched on, only for the selected channel. Select channel 00 (all channels) to engage on all timers.
-
Page 4: Forest Multi Wall Switch Rf - 5201001470
FOREST MULTI WALL SWITCH RF - 5201001470 TECHNICAL SPECIFICATION: ● 3V battery CR2032 ● transmit range indoor max. 30mtr ● battery life < 3 years ● working temperature -10°C - +50°C ● frequency 433.92MHz ● each channel can control up to 20 receivers ●... -
Page 5: Forest Multi Receiver Click On - 5201001362
connect to port 1 of the Forest Shuttle M working temperature -10°C - +50°C controlled by Forest Multi Remote and Forest Multi Wall Switch RF control led program button PROGRAMMING REMOTE / WALL CANCEL ONE CHANNEL OF... -
Page 6: Forest Multi Receiver / Wall Switch For Shuttle M - 5201001360/1361
● can also be used as wall switch ● cable 3,5mtr → 5201001361 ● terminal max 2,5mm² ● connect to port 1 of the Forest Shuttle M ● working temperature -10°C - +50°C ● working temperature -10°C - +50°C ● controlled by Forest Multi Remote and... -
Page 7: Wiring Diagram
WIRING DIAGRAM FOREST FMS / TUBULAR MOTOR TO 5201011500 www.forestgroup.nl 08/2014 WDOC MULTI REMOTE v1.91... - Page 8 TUBULAR MOTOR BUILD-IN RECEIVERAND ELECTRONIC LIMIT SETTING TECHNICAL SPECIFICATION: ● 3416600099 – 6Nm, 33rpm, build-in receiver, electronic limit setting (110V) ● 3416600110 – 3Nm, 28rpm, build-in receiver, mechanical limit setting (230V) ● 3416600112 – 6Nm, 28rpm, build-in receiver, electronic limit setting (230V) ●...
-
Page 9: Programming Remote
TUBULAR MOTOR BUILD-IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING NOTE: during programming, keep the remote or wireless wall switch within 2 mtr from the receiver/motor PROGRAMMING REMOTE / WALL ADD MORE REMOTES / WALL SWITCHES / CANCEL ALL REMOTES OR SWITCH TO TUBULAR MOTOR: CHANNELS TO TUBULAR MOTOR WALL SWITCHES... -
Page 10: Setting End Limits
TUBULAR MOTOR BUILD IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING ADJUSTING UPPER AND LOWER END LIMITS: IMPORTANT: - when more motors are programmed to one channel, end limits of all motors will be adjusted - during programming, keep the remote or wireless wall switch within 2 mtr from the receiver/motor press P2 button one time press OPEN button one time press P2 button one time... - Page 11 TUBULAR MOTOR BUILD IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING CANCELLATION OF UPPER AND LOWER END LIMITS: IMPORTANT: When cancelling end limits, all motors programmed to that channel will be cancelled press P2 button one time press CLOSE button one time press P2 button one time 1x P2 1x P2...
- Page 12 ● has to be used with Multi remote and/or Multi wall switch RF ● only to be used in Forest BS system and with Forest power supply for BS motor IMPORTANT: WHEN USING THE QUICK LOCK CORD ROLL, BE SURE TO LOCK THE CORD BEFORE USING THE MOTOR...
-
Page 13: Setting End Limits
BS 24V DOUBLE SHAFT MOTOR - 36.4800.0000 BUILD-IN RECEIVER - ELECTRONIC LIMIT SETTING SET UPPER END LIMIT SET LOWER END LIMIT DELETE LIMITS press P2 button once, press P2 button once, press P2 button twice, motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge: 1xP2...
