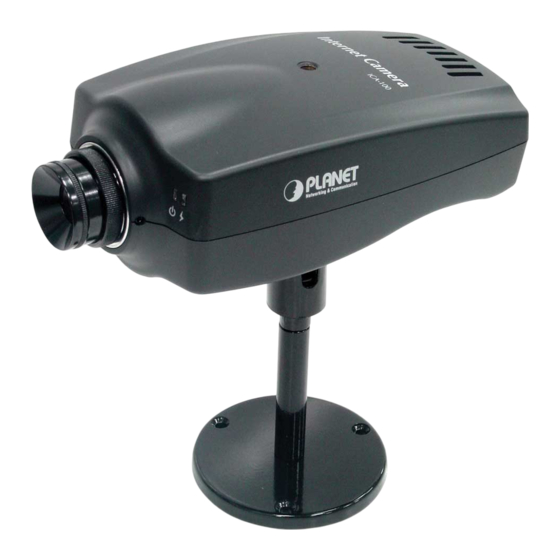

Internet Camera
ICA-100
ICA-100W
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICA-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet ICA-100

Summary of Contents for Planet ICA-100

  • Page 1 Internet Camera ICA-100 ICA-100W Quick Installation Guide...

  • Page 2: Table Of Contents

    Internet Camera Quick Installation Guide ABLE OF ONTENTS REQUIREMENTS..............3 PHYSICAL INSTALLATION ............4 ICA-100 .................4 ICA-100W................5 CONFIGURATION BY WEB............6 .................6 REPARATION ........6 ONNECTING TO THE NTERNET AMERA ................7 ............7 YSTEM ONFIGURATION CONFIGURATION BY IPVIEW UTILITY......12 ............... 12 NSTALLATION ..............16 AUNCH ...............

  • Page 3: Requirements

    • VGA card resolution: 800x600 or above *Image view means the ICA-100 series will need either Java or ActiveX for motion picture ** IPView Application, the software that can have further management of the ICA-100 series. This software can be found in the CD-ROM.

  • Page 4: Physical Installation

    ICA-100 1.Connect an Ethernet cable Connect one end of an Ethernet cable to the LAN port located on the ICA-100 rear panel and attach the other end to the network device (hub or switch). 2.Attach the external power supply Connect the provided power adapter to the ICA-100’s connector labeled "5VDC"...

  • Page 5: Ica-100W

    Internet Camera Quick Installation Guide ICA-100W 1.Attach Wireless Antenna (LAN+WLAN or WLAN mode) Screw the 2 external Antenna provided into the antenna connector located on ICA-100W’s rear panel. 2.Connect an Ethernet cable (LAN or LAN+WLAN mode) Connect one end of an Ethernet cable to the LAN port located on the ICA-100W’s rear panel and attach the other end to the network device (hub or switch).

  • Page 6: Configuration By Web

    Internet Camera Quick Installation Guide Configuration by Web There are two methods to configure the Internet Camera: Web and IPView. The ICA-100 series contains an HTTP server. This enables you to connect to it, and configure it, using your Web Browser.

  • Page 7: Home Page

    Camera. There are many options in the system menu bar used for setting Internet Camera. Please select “System” to continue. System Configuration The System page (see the following figure) contains a list of commands/ settings that are required for ICA-100 series. - 7 -...
  • Page 8 Internet Camera Quick Installation Guide - 8 -...
  • Page 9 IP Assignment: There are two options to select from the IP Assignment. Note: Access to ICA-100 series is done through assigning a proper IP address. Please make sure to use a vacant IP address when you assign the IP address for ICA-100 series.
  • Page 10 Internet Camera Quick Installation Guide Wireless Interface: (ICA-100W only) Connection Mode: Use the Connection Mode to determine the type of wireless communication for ICA-100W. There are three choices of Infrastructure mode, 802.11 Adhoc mode and Adhoc mode. The default setting for the Connection Mode is Infrastructure.
  • Page 11 Save/Cancel: After making sure all settings in the System are correct, click on the “Save” icon to store the settings for ICA-100 series. You can alternatively click on the “Cancel” icon to restore all settings to the values last saved to or retrieved from ICA-100 series.

  • Page 12: Configuration By Ipview Utility

    Internet Camera Quick Installation Guide Configuration by IPView Utility Installation STEP 1 Insert the CD-ROM into the CD-ROM drive to initiate the autorun program. Once completed a menu screen will appear as follows: STEP 2 To install the IPView Application, click on the "IPView" hyperlink to activate the installation procedure for the application program.
  • Page 13 Internet Camera Quick Installation Guide 2. Enter “D:\IPView\ipviewsetup.exe” in the appeared box, where “D” is the letter of your CD-ROM drive. 3. Click on “OK” button. STEP 3 The Welcome screen will appear. Click on the “Next” button to proceed with the installation. STEP 4 The License Agreement prompt will appear as below.
  • Page 14 Internet Camera Quick Installation Guide STEP 5 A prompt will appear and in the Destination Location dialog box, you may click on “Next” to accept the recommended destination location or click on “Browse” to select another location. After specifying the desired destination location, click on “Next”...
  • Page 15 Internet Camera Quick Installation Guide STEP 6 The Select Program Folder prompt will appear providing information of where the IPView application will be located, click on “Next” to continue. Click on “Back” can return to the previous screens. - 15 -...

  • Page 16: Launch Ipview

    Internet Camera Quick Installation Guide STEP 7 Please wait until “InstallShield Wizard Complete” prompt is shown. Click on the “Finish” icon to complete the installation procedure. Launch IPView After successfully installing the IPView, the application program is automatically installed to \Program Files\IPView. Click on Start Menu/Programs/IPView/IPView to launch the program.
  • Page 17 Internet Camera Quick Installation Guide Once IPView is executed, a Login dialog box will appear, you must enter the default User Name: admin into the respective field and click on “OK” to log into the application. - 17 -...
  • Page 18 Internet Camera Quick Installation Guide After login, the IPView application is executed and it’s interface will appear as follows in the default List View. - 18 -...

  • Page 19: Add Camera

    “Add” icon to add a new camera. If the IP Address is entered incorrectly, a dialog box will appear to notify the error. If ICA-100 series are installed on Internet and have real IP addresses, they can only be added by entering correct IP address.
  • Page 20 Internet Camera Quick Installation Guide Click on the “Search” icon and IPView will detect and search all the available camera’s that are installed on the local area network as depicted below: If you want to change the IP address of the Internet Camera, click “Change IP”...
  • Page 21 Internet Camera Quick Installation Guide Note: The PC and the Internet Camera must be on the same subnet. That is, if the Internet Camera is with default IP, 192.168.0.20, the PC must be configured to an IP address and subnet mask in 192.168.0.x segment. For example: IP: 192.168.0.2, subnet mask: 255.255.255.0.
  • Page 22 Internet Camera Quick Installation Guide Just click OK if has not set the User Name and Password to ICA-100 series. The screen with the added Internet Camera is as the following. You can then double-click the Internet Camera you want to configure and the Camera Property window will be shown as the following.
  • Page 23 Internet Camera Quick Installation Guide For detailed information about using IPView, please refer to the User’s Manual on bundled CD. - 23 -...
  • Page 24 EMQ-ICA100...
