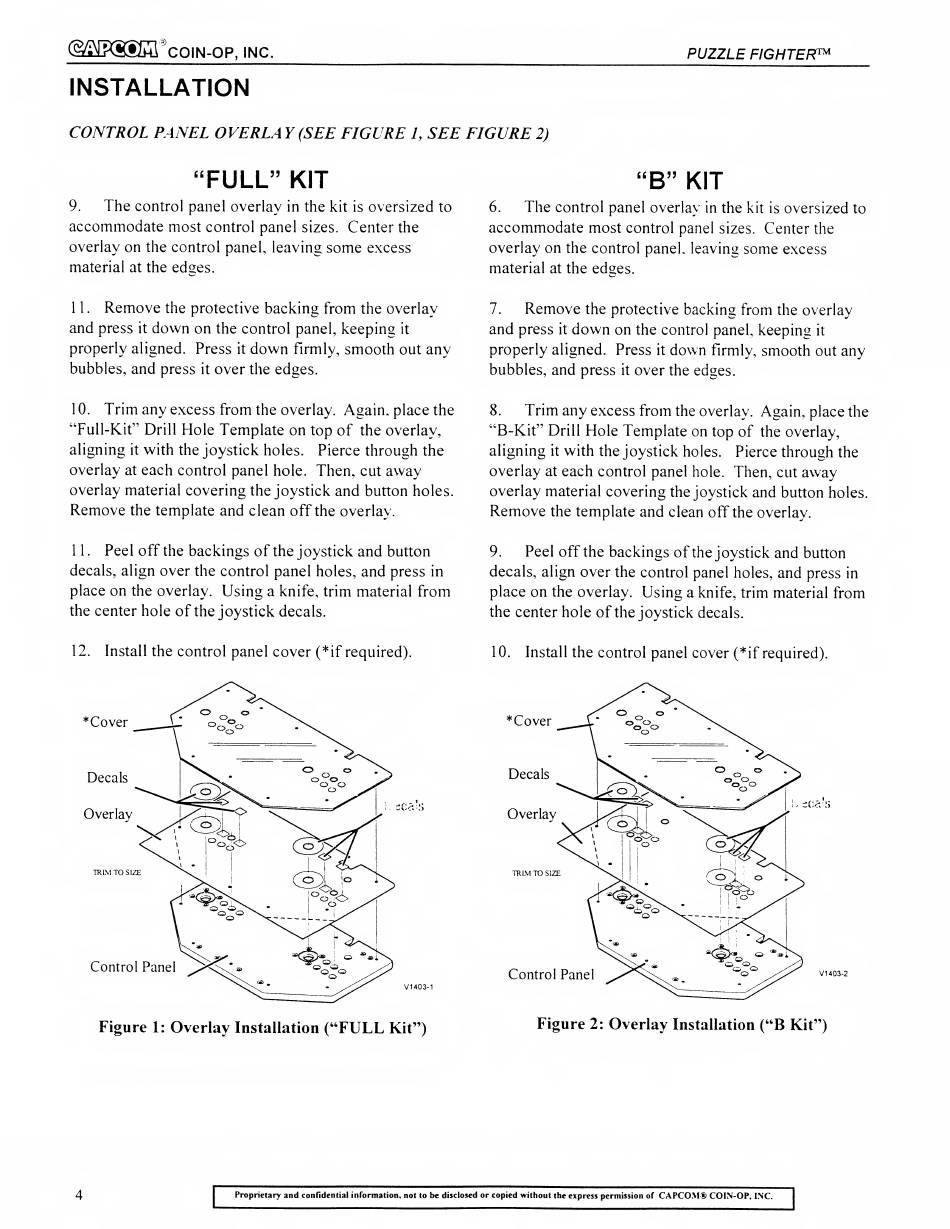

Capcom Puzzle Fighter Operator's Manual page 8

(SMPSSffif
COIN-OP,
INC.
PUZZLE FIGHTER™
INSTALLATION
CONTROL PANEL OVERLA
Y
(SEE
FIGURE
1,
SEE FIGURE
2)
"FULL"
KIT
9.
The
control panel overlay
in
the
kit
is
oversized
to
accommodate most
control panel
sizes.
Center
the
overlay on
the control panel, leaving
some
excess
material
at
the edges.
1 1
.
Remove
the protective
backing from
the
overlay
and
press
it
down
on
the control panel, keeping
it
properly aligned. Press
it
down
firmly,
smooth
out
any
bubbles, and
press
it
over
the edges.
10.
Trim any
excess
from
the overlay.
Again,
place the
"Full-Kit"
Drill
Hole Template on
top
of
the overlay,
aligning
it
with
the joystick holes. Pierce through the
overlay
at
each
control panel
hole.
Then,
cut
away
overlay
material
covering
the joystick
and
button
holes.
Remove
the
template and
clean off
the overlay.
1 1
Peel off
the
backings of
the joystick
and
button
decals, align
over
the control panel
holes,
and
press
in
place
on
the overlay.
Using
a knife, trim material
from
the center hole of
the joystick decals.
12. Install the control panel
cover
(*if required).
"B"
KIT
6.
The
control panel overlay
in
the
kit
is
oversized
to
accommodate
most
control panel
sizes.
Center
the
overlay on
the control panel, leaving
some
excess
material
at
the edges.
7.
Remove
the protective backing from
the overlay
and
press
it
down
on
the control panel,
keeping
it
properly aligned. Press
it
down
firmly,
smooth
out
any
bubbles, and
press
it
over
the edges.
8.
Trim any
excess
from
the overlay. Again, place the
"B-Kit"
Drill
Hole Template
on
top of
the overlay,
aligning
it
with
the joystick
holes. Pierce
through
the
overlay
at
each
control panel
hole.
Then,
cut
away
overlay
material covering
the joystick
and
button
holes.
Remove
the template
and
clean off the overlay.
9.
Peel off the backings of
the joystick
and
button
decals, align over
the control panel
holes,
and
press
in
place
on
the overlay. Using
a knife, trim material from
the center hole of
the joystick
decals.
1
0.
Install the control panel cover
(*if required).
*Cover
TRIM TO
SIZE
Control Panel
Figure
1:
Overlay
Installation
("FULL
Kit")
*Cover
TRLMTOSIZE
Control
Figure
2:
Overlay
Installation
("B
Kit")
Proprietary and
confidential
information, not
to
be
disclosed
or copied without
the express permission of
CAPCOM®
COIN-OP,
INC.
