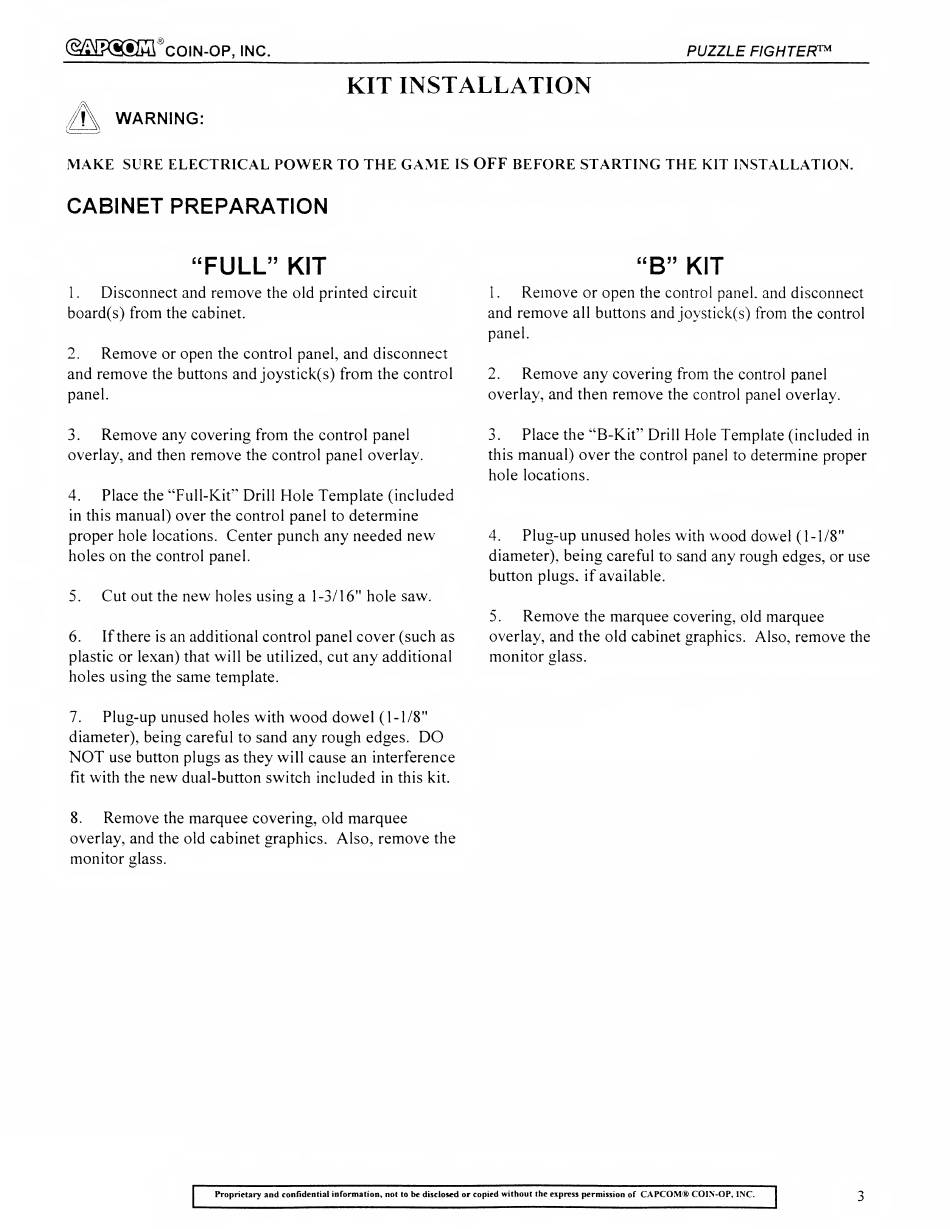

PUZZLE FIGHTER™
KIT
INSTALLATION
T\
WARNING:
MAKE
SURE ELECTRICAL
POWER TO THE
GAME
IS
OFF BEFORE STARTING THE
KIT INSTALLATION.
CABINET PREPARATION
"FULL"
KIT
1
Disconnect and
remove
the old printed circuit
board(s)
from
the cabinet.
2.
Remove
or
open
the control panel,
and
disconnect
and remove
the buttons
and
joystick(s)
from
the control
panel.
3.
Remove
any covering from
the control
panel
overlay,
and
then
remove
the control panel overlay.
4.
Place the "Full-Kit"
Drill
Hole Template
(included
in this
manual) over
the control panel
to
determine
proper hole
locations.
Center
punch any needed
new
holes
on
the control panel.
5.
Cut
out the
new
holes using a 1-3/16" hole saw.
6. If
there
is
an additional control panel
cover (such
as
plastic
or lexan)
that will
be
utilized,
cut
any
additional
holes using the
same
template.
"B"
KIT
1
Remove
or
open
the control panel,
and
disconnect
and
remove
all
buttons
and
joystick(s)
from
the control
panel.
2.
Remove
any
covering from
the control panel
overlay,
and then
remove
the control panel overlay.
3.
Place the "B-Kit"
Drill
Hole Template
(included
in
this
manual) over
the control panel
to
determine proper
hole
locations.
4.
Plug-up
unused
holes with
wood
dowel (1-1/8"
diameter), being
careful to
sand any rough
edges, or use
button
plugs,
if
available.
5.
Remove
the
marquee
covering, old
marquee
overlay,
and
the old cabinet graphics. Also,
remove
the
monitor
dass.
7.
Plug-up unused holes with
wood
dowel
(1-1/8"
diameter), being
careful to
sand any rough
edges.
DO
NOT
use button plugs as they
will
cause an
interference
fit
with
the
new
dual-button switch included
in this kit.
8.
Remove
the
marquee
covering, old
marquee
overlay, and
the old
cabinet graphics. Also,
remove
the
monitor
glass.
