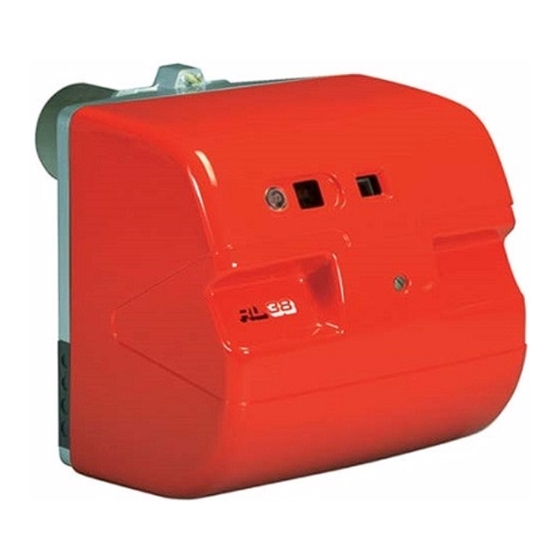

Light oil burner two-stage operation
Hide thumbs Also See for RL 44 MZ:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation, use and maintenance instructions
Light oil burners
GB
Two-stage operation
CODE
3470310
3470311
3470340
3470341
MODEL
RL 44 MZ
RL 44 MZ
RL 44 MZ
RL 44 MZ
20215913 (1) - 05/2024
