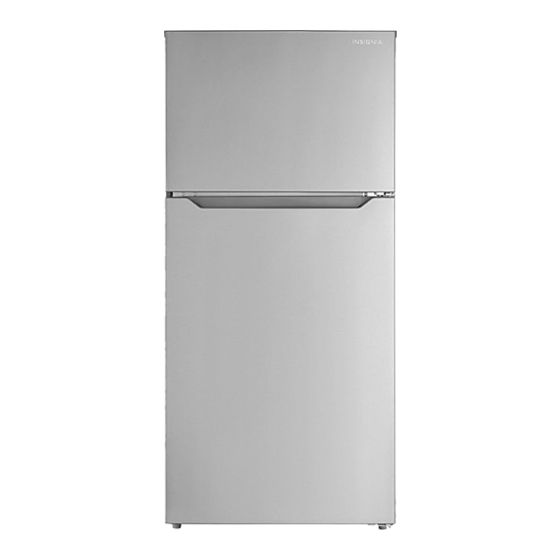

14.2 cu. ft. top mount refrigerator

Advertisement

USER GUIDE
14.2 Cu. Ft. Top Mount
Refrigerator
NS-RTM14SS5/NS-RTM14SS5-C/NS-RTM14WH5-C
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-RTM14SS5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-RTM14SS5

  • Page 1 USER GUIDE 14.2 Cu. Ft. Top Mount Refrigerator NS-RTM14SS5/NS-RTM14SS5-C/NS-RTM14WH5-C Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY .........21 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RTM14SS5, NS-RTM14SS5-C, or NS-RTM14WH5-C represents the state of the art in refrigerator design and is designed for reliable and trouble-free performance.
  • Page 3: Important Safety Instructions

    14.2 Cu. Ft. Top Mount Refrigerator Important Safety Instructions WARNING WARNING: Risk of fire/flammable materials. • This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential type...
  • Page 4: Meaning Of Safety Warning Symbols

    • Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it must be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
  • Page 5 14.2 Cu. Ft. Top Mount Refrigerator Warnings for using • Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. • A damaged power cord must be replaced by the manufacturer, its maintenance department, or related professionals in order to avoid danger.
  • Page 6: Features

    Warnings for disposal • Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it must be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
  • Page 7: Main Components

    14.2 Cu. Ft. Top Mount Refrigerator Main components Freezer shelf Door trays Upper refrigerator shelf Lower refrigerator shelf Crisper drawers Note: The image above is only for reference and may vary from the actual product. Setting up your refrigerator Before using your refrigerator Remove all packing materials, including bottom cushions, foam pads, and tape inside of your refrigerator.
  • Page 8: Leveling Your Refrigerator

    • Place your refrigerator in a well-ventilated indoor location. Leave at least 11 13/16 in. (30 cm) of space above and at least 3 15/16 in. (10 cm) behind and beside your refrigerator for heat dissipation. • Make sure that the floor is flat and strong enough to support your refrigerator when fully loaded.
  • Page 9: Installing An Optional Ice Maker

    Installing an optional ice maker Your refrigerator comes set up for ice maker installation. This refrigerator is compatible with the Insignia NS-ICEF2W2 ice maker (not included). To install, follow the ice maker installation instructions in the ice maker kit manual.
  • Page 10: Reversing The Door Position

    Reversing the door position Part included with the hinge kit: Note: This part comes in a separate package. Left door self-locking fixture (2) Unplug your refrigerator and remove all food from inside and in the door shelves. Using a flathead screwdriver, remove the left cover plate and the right upper hinge cover, then unscrew and remove the upper hinge.
  • Page 11 14.2 Cu. Ft. Top Mount Refrigerator Lay your refrigerator down on its back, then unscrew the lower hinge screws and both adjusting feet. Using pliers and a 3/8 in. socket wrench, remove the lower hinge pin from the hinge, then reinstall it into the hole on the other side of the hinge. Lower hinge Adjusting foot Screw...
  • Page 12 Unscrew and remove the shaft sleeves, door stops, and right door self-locking fixture from both doors, then remove the left door self-locking fixture from the accessory bag and install it onto the left corner of the freezer door body, together with the door stops and shaft sleeves. Door stop Left door self-locking fixture Shaft sleeve...
  • Page 13 14.2 Cu. Ft. Top Mount Refrigerator Install the refrigerator door on the lower left hinge, install the center beam screws, center hinge and tighten the screws on the left side, and install the plug pins, center beam screws, and screw caps on the right side. Plug pins Center beam screw Hinge pin...
  • Page 14: Using Your Refrigerator

    Using your refrigerator Note: If your refrigerator is unplugged or loses power, wait five minutes before restarting it to prevent damage to the compressor. Setting the refrigerator temperature • Turn the refrigerator temperature knob to adjust the temperature to Cold (the highest temperature), Recommended, or Coldest (the lowest temperature).
  • Page 15: Using Your Freezer Compartment

    14.2 Cu. Ft. Top Mount Refrigerator • Large amounts of food will lower the cooling efficiency of your refrigerator. Do not block the air outlet. CAUTION: To prevent damage, never close the refrigerator door while the shelves or crisper drawers are extended. Using the door trays The refrigerator and freezer compartments have door trays.
  • Page 16: Cleaning And Maintaining Your Refrigerator

    • Divide chunks of meat into small pieces for easy access. • Place frozen food into the freezer as quickly as possible after purchase. • Follow package instructions regarding storage times. The storage life of frozen foods varies and the recommended storage time should not be exceeded. •...
  • Page 17: Changing The Interior Led Light

    Remove as many items as you can at one time, and close the door as soon as possible. Obtaining replacement parts Call Insignia Customer Service at 1-877-467-4289. To obtain replacement parts outside the warranty period, visit https://partstore.encompass.com and search for the product model number.
  • Page 18: Troubleshooting

    Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. PROBLEM POSSIBLE SOLUTION My refrigerator Make sure that your refrigerator is plugged in and that the plug is does not operate. pushed completely into the outlet. Make sure that your refrigerator is plugged into a 110V–120V, 60Hz power outlet.
  • Page 19 14.2 Cu. Ft. Top Mount Refrigerator PROBLEM POSSIBLE SOLUTION Moisture is Make sure that the door is closed properly. building up in Move your refrigerator to a dryer location. the interior of my refrigerator. Repackage the food in your refrigerator to make sure that it is sealed.
  • Page 20: Specifications

    Specifications Dimensions without 60 5/8 × 27 5/8 × 28 13/16 in. (154 × 70 × 73.1 cm) handle (H × W × D) Weight 137.8 lbs. (62.5 kg) Capacity 14.2 cu. ft. Power requirements 115V~60Hz Current 1.2A Wattage 130W Power consumption 333 kWh (annual)
  • Page 21: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 22 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
  • Page 23 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2024 Best Buy. All rights reserved. V2 ENGLISH 24-0239...
