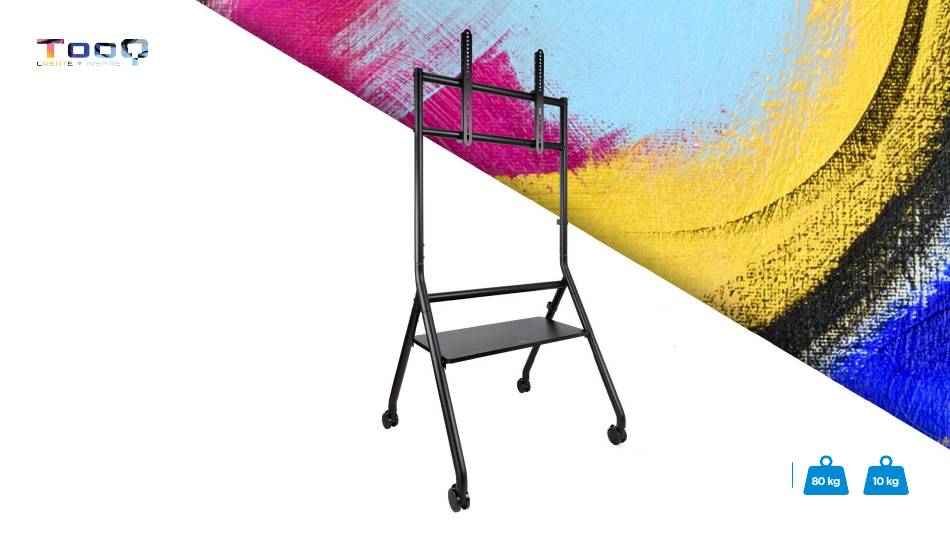

- Page 1 reams F20206M-B User manual FLOOR STAND WITH WEELS FOR 37”-86” SCREENS 37’’- 86’’ VESA: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 For TV For DVD...
- Page 2 Content M-A (x4) M-B (x4) M6x14 M6x16 A (x1) B (x2) C (x3) D (x2) M-C (x4) M-D (x4) M6x30 M8x35 E (x2) F (x2) G (x1) H (x1) I (x4) M-E (x4) M-F (x4) Ø15x Ø8x15 J (x2) K (x4) L (x2) M (x6) N (x16)
-
Page 3: Before Installation
Before installation • Read the instruction manual, if you are in any doubt about the instructions or warnings, contact your local dealer. • Make sure you have received all parts according to the components checklist for installation. If any parts are missing or defective, please contact your local distributor. - Page 4 Installation Note: The components H and G aren´t interchangable. Unlock Lock Lock the brakes on the casters to avoid any sudden movements during installation.
-
Page 5: Installation
Installation... - Page 6 Installation Leave a gap of 4 mm.
- Page 7 Installation If the Shelf A is difficult to install, you can adjust the preset screws on the shelf to make it easy.
- Page 8 Installation...
- Page 9 Installation Note: Tighten the four screws M that used to fix brackets, and then tighten all of other screws.
- Page 10 Installation...
- Page 11 Installation long short...
- Page 12 Installation Hang the TV on the top bracket to make sure the proper mounting holes for the Lower Hooks L. Then remove the TV and attach the lower hooks as shown.
- Page 13 Installation Note: If the caster can’t touch the ground, loosen the lower nut as shown to adjust the caster to proper position, then tighten the upper nut.
-
Page 14: Warranty Information
Warranty information Since 1 January 2022, TooQ offers a 3-year warranty from the time of purchase, so it will always keep the purchase ticket or invoice containing the date of purchase. The distributor or retailer from whom you purchased the product will attend to your claim and offer technical service while the warranty is in force. - Page 15 Find out about all our news! Follow us on social media ©2024 by TooQ Technology, S.L. AII Rights Reserved. tooq.com...
