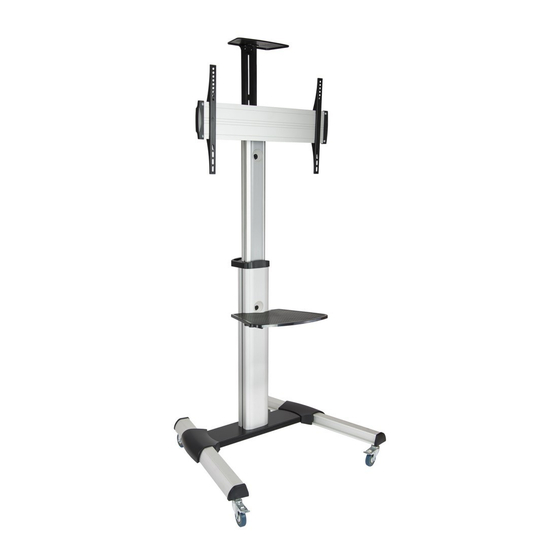

- Page 1 INSTALLATION MANUAL MOBILE FLOOR STAND MOUNT 11. Ajust MONITOR/TV +5°/-12° 1200mm 1250mm 1300mm 1350mm 1400mm 1450mm 1500mm 1550mm 1600mm 200x200 300x300 70" FS1870M-B 400x200 TV 50kg DVD 5kg DVD 5kg 400x400 600x400...
- Page 2 IMPORTANTE: Assicurarsi di aver ricevuto tutte le parti che si accodano alla lista di controllo dei componenti prima dell'installazione. Se mancano o sono difettose parti, telefonare al distibutor locale per una sostituzione. MANUTENZIONE: Controllare che la staffa sia sicura e sicura da utilizzare a intervalli regolari (almeno ogni tre mesi). ©2019 by TOOQ technology, S.L. Released in 2019/06. AII Rights Reserved.
- Page 3 1. Mounting the base 2. Placement of the column of the base...
- Page 4 3. Installation of the plate for support 4. Installing the adapters for support min200mm-max600mm...
- Page 5 5. Hooking the screen to the plate for support M-A/M-B/M-C 6. Installing the DVD shelf M-C M-D/M-E M-D/M-E M-D/M-E...
- Page 6 9. Installation of the connection plate 7. Wiring placement 10. Orientation of the screen 8. Installing the camera shelf...
