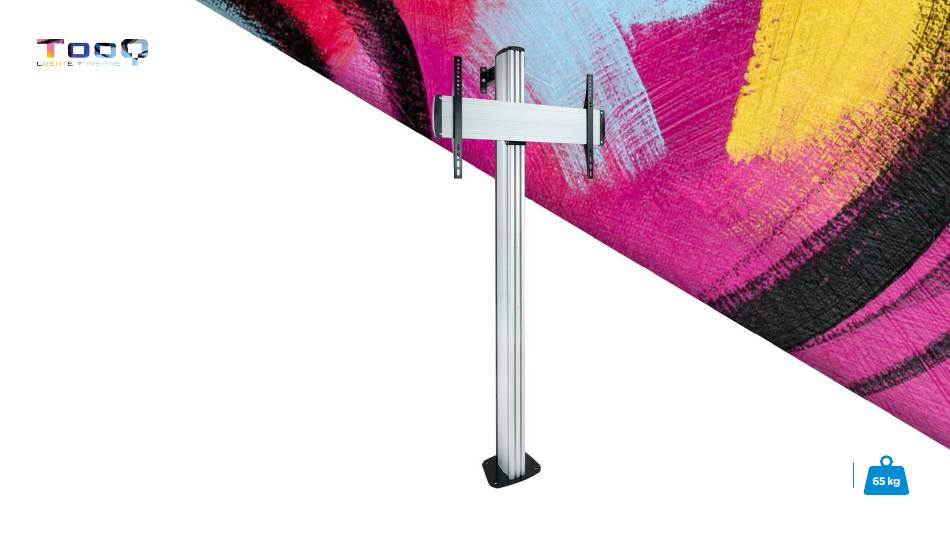

- Page 1 F2270M-B User manual 37’’- 70’’ FLOOR STAND FOR 37”-70” SCREENS VESA: 200x200, 300x300, 400x200, 400x400, 600x400...
- Page 2 Content M-A (x4) M-B (x4) M5x14 M6x14 B (x1) C (x1) D (x2) A (x1) M-C (x4) M-D (x4) M6x30 M8x30 G (x6) H (x1) I (x1) E (x2) F (x1) M-E (x4) M-F (x4) M8x50 J (x6) K (x4) L (x4) M (x6) N (x2)
-
Page 3: Before Installation
Before installation • Read the instruction manual, if you are in any doubt about the instructions or warnings, contact your local dealer. • Make sure you have received all parts according to the components checklist for installation. If any parts are missing or defective, please contact your local distributor. - Page 4 Installation...
-
Page 5: Installation
Installation Insert the clamping piece B into the rail in the Place the clamping plate A on the top of the column centre of the column as shown in the picture.Insert as shown in the drawing. the clamping piece B into the rail in the centre of the column as shown in the picture. - Page 6 Installation Slide 2 clamping pieces B (J) into the upper rail of the column.
- Page 7 Installation...
- Page 8 Installation Anchor the connector (I) to the column. Adjust the profile to the wall.
- Page 9 Installation Slide the washers A (K) along the rails on the back of the universal plate.
- Page 10 Installation Note: Insert the adapter brackets (E) to the universal platen (C). Align the holes in the brackets with the washers. Then insert the four screws, but do not tighten them yet.
- Page 11 Installation Fit the two universal base caps (D) on their ends using the appropriate screws. Tighten all screws using a suitable screwdriver.
- Page 12 Installation Note: Verify proper alignment of all holes. Fit the two universal base caps (D) on their ends using the appropriate screws. Tighten all screws using a suitable screwdriver.
- Page 13 Installation...
- Page 14 Installation CAUTION: Tighten all screws but do not overtighten.
- Page 15 Installation...
- Page 16 Installation...
- Page 17 Installation...
-
Page 18: Warranty Information
Warranty information Since 1 January 2022, TooQ offers a 3-year warranty from the time of purchase, so it will always keep the purchase ticket or invoice containing the date of purchase. The distributor or retailer from whom you purchased the product will attend to your claim and offer technical service while the warranty is in force. - Page 19 Find out about all our news! Follow us on social media ©2024 by TooQ Technology, S.L. AII Rights Reserved. tooq.com...
