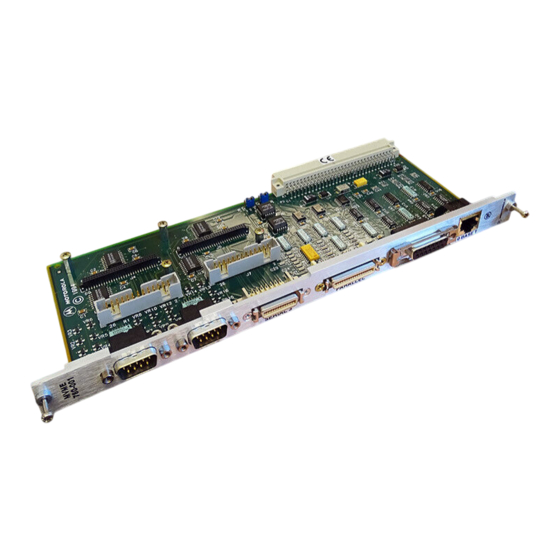

Motorola MVME760-001
Transition Module
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
In Stock
New From Surplus Stock
Buy Today!
https://www.artisantg.com/63884-3
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVME760-001 and is the answer not in the manual?

Questions and answers

Related Manuals for Motorola MVME760-001

Summary of Contents for Motorola MVME760-001

  • Page 1 Motorola MVME760-001 Transition Module In Stock New From Surplus Stock Buy Today! https://www.artisantg.com/63884-3 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 MVME760 Transition Module User’s Manual VME760A/UM1...
  • Page 3 Motorola, Inc. assumes no liability resulting from any omissions in this document, or from the use of the information obtained therein. Motorola reserves the right to revise this document and to make changes from time to time in the content hereof without obligation of Motorola to notify any person of such revision or changes.
  • Page 4 To use this manual you should be familiar with the publications listed in the following section: Related Documentation. Related Documentation The Motorola publications listed below are referenced in this document. If not shipped with this product, manuals may be purchased by contacting your local Motorola sales office.
  • Page 5 Motorola symbol are registered trademarks of Motorola, Inc. AIX™ is a trademarks of IBM. PowerPC™ is a trademark of IBM, and is used by Motorola with permission. All other products mentioned in this document are trademarks or registered trademarks of their respective holders.
  • Page 6 Motorola, Inc. assumes no liability for the customer's failure to comply with these requirements. The safety precautions listed below represent warnings of certain dangers of which Motorola is aware. You, as the user of the product, should follow these warnings and all other safety precautions necessary for the safe operation of the equipment in your operating environment.
  • Page 7 This equipment generates, uses, and can radiate electro- magnetic energy. It may cause or be susceptible to electro- magnetic interference (EMI) if not installed and used in a WARNING cabinet with adequate EMI protection.

  • Page 8: Table Of Contents

    Contents CHAPTER 1 General Information Introduction ........................1-1 Features of the MVME760 Module ................1-1 Specifications ........................1-2 Cooling Requirements ....................1-2 FCC Compliance ......................1-3 General Description ....................... 1-3 CHAPTER 2 Hardware Preparation and Installation Introduction ........................2-1 Unpacking Instruction ....................
  • Page 9 INDEX Index ........................IN-1 viii...
  • Page 10 List of Figures Figure 2-1. MVME760 Connector Locations............ 2-2 Figure 2-2. MVME760 Header Locations............2-3 Figure 2-3. MVME760 Cable Connections ............2-6 Figure 3-1. MVME760 Transition Module Block Diagram ......3-2 Figure 3-2. COM1 and COM2 Configurations ..........3-4 Figure 3-3. Ports 3/4 in EIA-232 DCE Configuration ........3-6 Figure 3-4.
  • Page 12 List of Tables Table 1-1. MVME760 Specifications..............1-2 Table 1-2. Module Type Identification............... 1-4 Table 3-1. Connector P2 Interconnect Signals (MVME760)......3-10 Table 3-2. AUI Connector Pin Assignments (MVME760) ......3-14 Table 3-3. 10BaseT Connector Pin Assignments ..........3-15 Table 3-4. Parallel I/O Connector Signals (MVME760)........ 3-15 Table 3-5.

  • Page 14: 1General Information

    1General Information Introduction This manual provides general information, hardware preparation, installation instructions, and support information for the MVME760 Transition Module. The MVME760 module is used as the interface between host VMEmodules and various peripheral devices. A 64-pin ribbon cable (P/N 30-W2514B02, 17” length) connects the MVME760 Transition Module to the host VMEmodule.

  • Page 15: Specifications

    Specifications Specifications The MVME760 module specifications are shown in Table 1-1. Table 1-1. MVME760 Specifications Characteristics Specifications Power Requirements + 5Vdc, 1A maximum (500 mA typical) +12Vdc, 100mA (w/o LAN transceiver) -12Vdc, 100mA I/O Port Connectors Serial Two EIA-232 async serial ports Two synchronous serial ports Parallel One IEEE Std 1284-I compliant...

  • Page 16: Fcc Compliance

    General Information FCC Compliance The MVME760 module was tested in an FCC-compliant chassis, and meets the requirements for Class A equipment. FCC compliance was achieved under the following conditions: 1. Shielded cables on all external I/O ports. 2. Cable shields connected to earth ground via metal shell connectors bonded to a conductive module front panel.

  • Page 17: Table 1-2. Module Type Identification

    General Description Table 1-2. Module Type Identification Model Module Part Number Number Type SIM705-001 EIA-232 DCE 01-W3876Bxx SIM705-002 EIA-232 DTE 01-W3877Bxx SIM705-003 EIA-530 DCE 01-W3878Bxx SIM705-004 EIA-530 DTE 01-W3879Bxx...

  • Page 18: Introduction

    2Hardware Preparation and Installation Introduction This chapter provides unpacking instructions, hardware preparation, and installation instructions for the MVME760 module. Unpacking Instruction If the carton is damaged upon receipt, request that the Note carrier’s agent be present during unpacking and inspection of the equipment. Unpack the equipment from the shipping carton.

  • Page 19: Figure 2-1. Mvme760 Connector Locations

    MVME760 Module Preparation BASE BOARD TRANSITION MODULE COM1 COM2 SERIAL PORT 3 64-PIN 50-MIL CABLE PARALLEL PORT 10BASET 1544 9410 Figure 2-1. MVME760 Connector Locations...

  • Page 20: Figure 2-2. Mvme760 Header Locations

    Hardware Preparation and Installation SERIAL PORT 4 MVME 760-001 MODULE SERIAL PORT 3 (PORT 4) MODULE (PORT 3) 1.1A. POLYSWITCH 1545 9410 Figure 2-2. MVME760 Header Locations...

  • Page 21: Configuring Serial Ports 3 And 4

    Configuring Serial Ports 3 and 4 Configuring Serial Ports 3 and 4 Headers J9 and J8 are used to configure Serial Port 3 and Serial Port 4, respectively. When the jumper is in position 1-2, the port is configured as a DTE. When the jumper is in position 2-3, the port is configured as a DCE.

  • Page 22: Installation Instructions

    Hardware Preparation and Installation Installation Instructions The basic procedure for installation of the MVME760 module is as follows: 1. Turn all equipment power OFF and disconnect the power cable from the AC power source. Connecting modules while the power is applied may result in damage to components on the module.

  • Page 23: Figure 2-3. Mvme760 Cable Connections

    Installation Instructions MVME760 HOST ENCLOSURE BOUNDARY 1548 9412 Figure 2-3. MVME760 Cable Connections...
  • Page 24 3Support Information Introduction This chapter provides the interconnection signals, parts lists, parts location illustrations, and schematic diagrams for the MVME760 Transition Module. The block diagram for the MVME760 Transition Module is shown in Figure 3-1.

  • Page 25: Chapter 3 Support Information

    Support Information 10BaseT PARALLEL COM1 COM2 SERIAL 3 RJ45 DB15 HD36 HD26 26-PIN 3M SERIAL 3 SERIAL 4 26-PIN 3M BUFFERS BUFFERS P2MX FUNCTION EIA-232 EIA-232 64-PIN DIN CONNECTOR 1549 9410 Figure 3-1. MVME760 Transition Module Block Diagram...

  • Page 26: Com1 And Com2 Serial Ports

    COM1 and COM2 Serial Ports COM1 and COM2 Serial Ports COM1 and COM2 are the two asynchronous serial ports. These two ports are configured as shown in Figure 3-2.

  • Page 27: Figure 3-2. Com1 And Com2 Configurations

    Support Information TXD1 RTS1_ DTR1_ RXD1 CTS1_ COM1 DSR1_ DCD1_ RI1_ TXD2 RTS2_ DTR2_ RXD2 CTS2_ COM2 DSR2_ DCD2_ RI2_ BASE MVME760 BOARD 1550 9410 Figure 3-2. COM1 and COM2 Configurations...

  • Page 28: Serial Ports 3 And 4

    Serial Ports 3 and 4 Serial Ports 3 and 4 Serial Ports 3 and 4 can be individually configured as EIA-232-D DCE, EIA-232-D DTE, EIA-530 DCE, or EIA-530 DTE by installing the appropriate Serial Interface Module. Figure 3-3 and Figure 3-4 show the configuration diagrams for Serial Ports 3 and 4 with the EIA-232 DCE and EIA-232 DTE Serial Interface Modules.

  • Page 29: Figure 3-3. Ports 3/4 In Eia-232 Dce Configuration

    Support Information DB25 Z85230 SCC P2/P2MX (Port 3 only) RTS_ CTS_ DCD_ TXCI TRXC RXCI J9, J8 RTXC TXCO Z8536 CIO DTR_ LLB_ RLB_ DSR_ EIA232-DCE SIM 1554 9411 Figure 3-3. Ports 3/4 in EIA-232 DCE Configuration...

  • Page 30: Figure 3-4. Ports 3/4 In Eia-232 Dte Configuration

    Serial Ports 3 and 4 DB25 Z85230 SCC P2/P2MX (Port 3 only) RTS_ CTS_ DCD_ TXCO TRXC TXCI J9, J8 RTXC RXCI Z8536 CIO DTR_ LLB_ RLB_ DSR_ EIA232-DTE SIM 1555 9411 Figure 3-4. Ports 3/4 in EIA-232 DTE Configuration...

  • Page 31: Figure 3-5. Ports 3/4 In Eia-530 Dce Configuration

    Support Information FRONT PANEL DB25 SIM08 Z85230 P2/P2MX (Port 3 only) EIA-530 DCE PORTS 3, 4 PIN 1 TXD_B PIN 14 TXD_A PIN 2 RXD_B PIN 16 RXD_A PIN 3 RTS_B PIN 19 RTS_ RTS_A PIN 4 CTS_B PIN 13 CTS _ CTS_A PIN 5...

  • Page 32: Figure 3-6. Ports 3/4 In Eia-530 Dte Configuration

    Serial Ports 3 and 4 FRONT PANEL DB25 SIM08 Z85230 P2/P2MX (Port 3 only) EIA-530 DTE PORTS 3, 4 PIN 1 TXD_B PIN 14 TXD_A PIN 2 RXD_B PIN 16 RXD_A PIN 3 RTS_B PIN 19 RTS_ RTS_A PIN 4 CTS_B PIN 13 CTS _...

  • Page 33: P2 Connector

    Support Information P2 Connector P2 is a 64-pin DIN connector providing power and signaling. The 64-pin ribbon cable P/N is 30-W2514B02. Table 3-1 shows the interconnect signals. Note Row B is not populated. Power distribution and signaling are accomplished using rows A and C only.

  • Page 34: Table 3-1. Connector P2 Interconnect Signals (Mvme760)

    P2 Connector Table 3-1. Connector P2 Interconnect Signals (MVME760) (Continued) Number Signal Mnemonic Signal Name and Description SIGNAL GROUND PRSTB_ Refer to the IEEE P1284 D2.00 Standard PRACK_ Refer to the IEEE P1284 D2.00 Standard SIGNAL GROUND PRBSY Refer to the IEEE P1284 D2.00 Standard PRPE Refer to the IEEE P1284 D2.00 Standard PRSEL...
  • Page 35 Support Information Table 3-1. Connector P2 Interconnect Signals (MVME760) (Continued) Number Signal Mnemonic Signal Name and Description DTR1 DATA TERMINAL READY (serial port 1) - a signal from the terminal to the modem indicating that the terminal is ready to send or receive data. RTS1 REQUEST TO SEND (serial port 1) - RTS is supplied by the terminal to the modem when it is required to transmit a...
  • Page 36 P2 Connector Table 3-1. Connector P2 Interconnect Signals (MVME760) (Continued) Number Signal Mnemonic Signal Name and Description DTR2 DATA TERMINAL READY (serial port 2) - a signal from the terminal to the modem indicating that the terminal is ready to send or receive data. SIGNAL GROUND RXD3 RECEIVE DATA (serial port 3) - data that is demodulated...

  • Page 37: Ethernet (Aui And 10Baset) Connectors

    Support Information Ethernet (AUI and 10BaseT) Connectors The MVME760 provides both AUI and 10BaseT interface via the front panel of the MVME760 transition module. The AUI interface and the 10BaseT interface are provided through a standard 2-row DB15 connector and an RJ45 connector respectively. Each pin connection, signal mnemonic, and signal description for the AUI connector is listed in Table 3-2.

  • Page 38: Ieee P1284 Parallel I/O Connector

    IEEE P1284 Parallel I/O Connector Each pin connection, signal mnemonic, and signal description for the 10BaseT connector is listed in the following table. The 10BaseT connector shield is tied to chassis ground. Table 3-3. 10BaseT Connector Pin Assignments Signal Signal Name and Number Mnemonic Description...

  • Page 39: Com1 And Com2 Connectors

    Support Information Table 3-4. Parallel I/O Connector Signals (MVME760) (Continued) Signal Number Mnemonic Signal Name and Description PRD0 See IEEE P1284 D2.00 Standard PRD1 See IEEE P1284 D2.00 Standard PRD2 See IEEE P1284 D2.00 Standard PRD3 See IEEE P1284 D2.00 Standard PRD4 See IEEE P1284 D2.00 Standard PRD5...

  • Page 40: Serial Port 3 Connectors

    Serial Port 3 Connectors Table 3-5. COM1 and COM2 Interconnect Signals (MVME760) (Continued) Signal Number Mnemonic Signal Name and Description RECEIVE DATA - data that is demodulated from the receive line is presented to the terminal by the modem. TRANSMIT DATA - data to be transmitted is furnished on this line to the modem from the terminal.
  • Page 41 Support Information Pin Assignments for Serial Port 3 Connectors Table 3-6. Front-panel 3m-Type Connector Ribbon Connector Mated DB25 Mated DB26 Pin # Signal Name Pin # Signal Name Pin # Pin # No Connect No Connect TXD3 TXD3 RXD3 RXD3 RTS3 RTS3 CTS3...

  • Page 42: Serial Port 4 Connector

    Serial Port 4 Connector Serial Port 4 Connector A 26-pin ribbon-cable (3M-type) header provides the interface to Serial Port 4. Ribbon cable with mating connector can be used to interface to this header. The pin assignments for this connector are shown in the following table.

  • Page 43: Serial I/O Data Rate

    Parts lists are illustrated in Table 3-8. Parts locations are illustrated in Figure 3-7. Model Parts List Parts Location Drawing MVME760 Table 3-8 Figure 3-7 Table 3-8. MVME760 Module Parts List Reference Motorola Designation Part Number Description 84-W8000F01A Printed wiring board (MVME760) CR1,CR2 48NW963A04 Rectifier, Schottky...
  • Page 44 Parts Lists and Locations Table 3-8. MVME760 Module Parts List (Continued) Reference Motorola Designation Part Number Description Capacitor, fixed, 33 µF @15 Vdc 23NW9712A06 C44,47,51 21NW9711A11 Capacitor, fixed, ceramic, 22pF 06NW9650A01 Polyswitch, 1.1A J1, 3 28NW9802H73 Connector, 9-pin plug J2, 7...
  • Page 45 Support Information Table 3-8. MVME760 Module Parts List (Continued) Reference Motorola Designation Part Number Description U14, 15 51NW9637C20 I.C., MC74F257AD, 16-pin 64-W4478C01A Front Panel (MVME760-001) 30-W2514B02 17” length, 64-pin ribbon cable 3-22...

  • Page 46: Figure 3-7. Mvme760 Parts Location Drawing

    Parts Lists and Locations MVME 760-001 1551 9410 Figure 3-7. MVME760 Parts Location Drawing 3-23...

  • Page 47: Schematic Drawings

    Support Information Schematic Drawings Schematic drawings for the MVME760 Transition Module are shown on the following pages. 3-24...
  • Page 48 Index When using this index, keep in mind that a page number indicates only where referenced material begins. It may extend to the page or pages following the page referenced. Numerics 10BaseT Connector Pin Assignments I/O Ports IEEE P1284 Parallel I/O Connector 3-15 3-15 Installation Instructions...
  • Page 49 Index Schematic Drawings 3-22, 3-24 Serial I/O Data Rate 3-20 Serial Interface Modules Serial Port 4 Connector 3-19 Serial Ports 3 and 4 Specifications Storage temperature Unpacking Instruction IN-2...
