Summary of Contents for Monster SBA36G

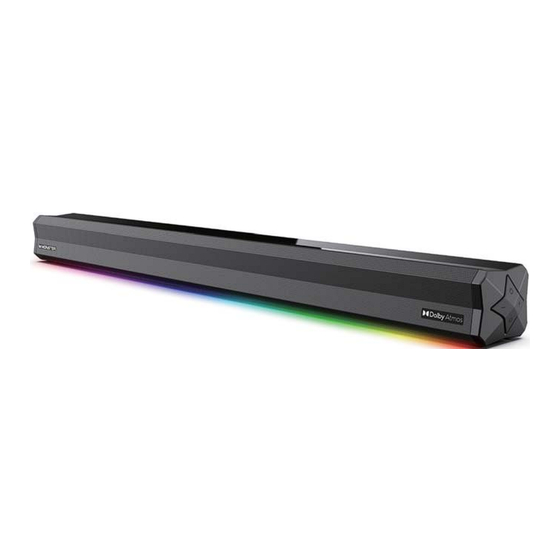

- Page 1 Monster Indoor Outdoor Atmos Soundbar SBA36G MNSBA36G...
- Page 2 Thank you for purchasing the MNSBA36G Soundbar. Please read this user manual carefully and keep for future reference. arning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of...
-
Page 3: Important Safety Instructions
6. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit. 7. -
Page 4: Preparation For Use
9. Refer all servicing to qualified service personal. Servicing is required when the apparatus has been damage in any way, for example, when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. -
Page 5: Fcc Warning
• On top of other stereo equipment that radiate too much heat -Blocking ventilation or in a dusty area. • Areas where there is constant vibration. • Humid or moist places. • Do not place near candles or other flames. •... - Page 6 Waterproof IPX4 The Sound bar provides the robust durability by IPX4 so that it can be used in outdoor environment (When installed and used as per the instructions in this User Manual). The remote control of this product provides durability by IPX4. Despite the IPX4 ratings, your sound bar and remote control is not impervious to water damage in any situation.
-
Page 7: Product Diagram
Product Diagram 8888 LED DISPLAY eARC DC IN VOL- OPTICAL Power/Standby INPUT USB(ONLY UPDATE) VOL+... - Page 8 REMOTE CONTROL : Press the power button to turn on and turn off the unit. 2. PAIR: Press the "PAIR" button more than 2 seconds to connect or disconnect to the pairing device. : Lingt Mode L1-L2-L3-…L10, default in Breath mode L2, long press 2S to enter into monochromatic mode L11, L12….L18.
- Page 9 Place on a flat Surface Place the sound bar horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a cabinet or an a walled shelf.
- Page 10 Follow below steps to mount the sound bar on the wall 1. Make 2 holes on the wall with distance same as the wall bracket on the soundbar 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way make sure leave some space 3.
-
Page 11: Powering On/Off
OPERATE INSTRUCTIONS Setting the Soundbar 1. Plug in the power cord and the display will light up (Standby mode) 2. Switch on the sound bar by pressing “POWER” button on sound bar or on remote controller. After switching on, the default input mode will appear on display. 3. - Page 12 INPUT PAIR MODE GAME BASS TREB RESET BASS TREB MODE L1: Constant lighting/Constant red on/Constant green on/Constant blue on/Constant white on/ Constant yellow on/Constant purple on/Constant pink on/Constant orange on, 7 colors auto-loop ( each color for 2 secs), APP named SPIN MODE L2: Breathing light mode/Red breathing light/Green breathing light/Blue breathing light/White breathing light/Yellow breathing light/Purple breathing light/Pink breathing light/Orange breathing light, colors breathing mode auto-loop, APP named Breath...
- Page 13 BT mode and LED display on the sound bar will flicker in the Bluetooth pairing mode. 2. Activate the pairing function on your phone or other compatible device and select “MONSTER SBA36G” by BT connection. 3. When successfully paired, you will hear a tone and LED display will turn on “...
-
Page 14: Optical Mode
Optical Mode -Remove the cap of optical cable (keep the cap for the future use); check the direction of the plug. Connect the soundbar and TV with the optical cable. -Use this mode to play music from a TV with optical digital output on the sound bar. In TV sound settings, select the soundbar optical connection (output for audio). - Page 15 POSSIBLE CAUSE SOLUTION PROBLEM/TROUBLE Another input source is selected. Select an appropriate input source. Cancel the mute function. The mute function is activated. The volume of sound bar or TV/other device Increase the volume level on sound bar or is adjusted too low. by remote control or on TV.
- Page 16 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Sound quality of audio Move the device closer to the sound bar, play from a connected or remove any obstacle between the device and Bluetooth device is The Bluetooth reception is poor. the sound bar. poor and connection is not stable.
- Page 17 Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Dolby Vision, Dolby Atmos and the double -D symbol are trademarks of Dolby Laboratories. What is DOLBY ATMOS®? Dolby Atmos® transports you from the ordinary into the extraordinary with breathtaking, moving audio that fills your room and flows above and around you.
-
Page 18: Package Contents
Package Contents INPUT PAIR MODE GAME BASS TREB RESET BASS TREB Soundbar X 1 Remote Control X 1 HDMI Cable 1m *1 QSG *1 Wall Mounting Adapter 1.5m *1 User Manual X 1 Remote control battery Bracket Sets X 1 Specifications Model MNSBA36G...
