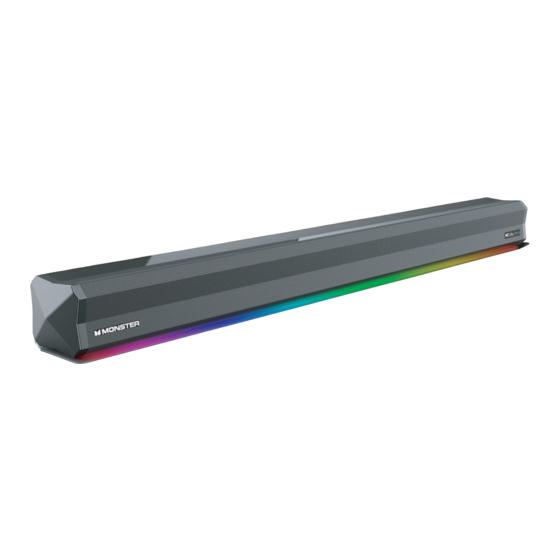

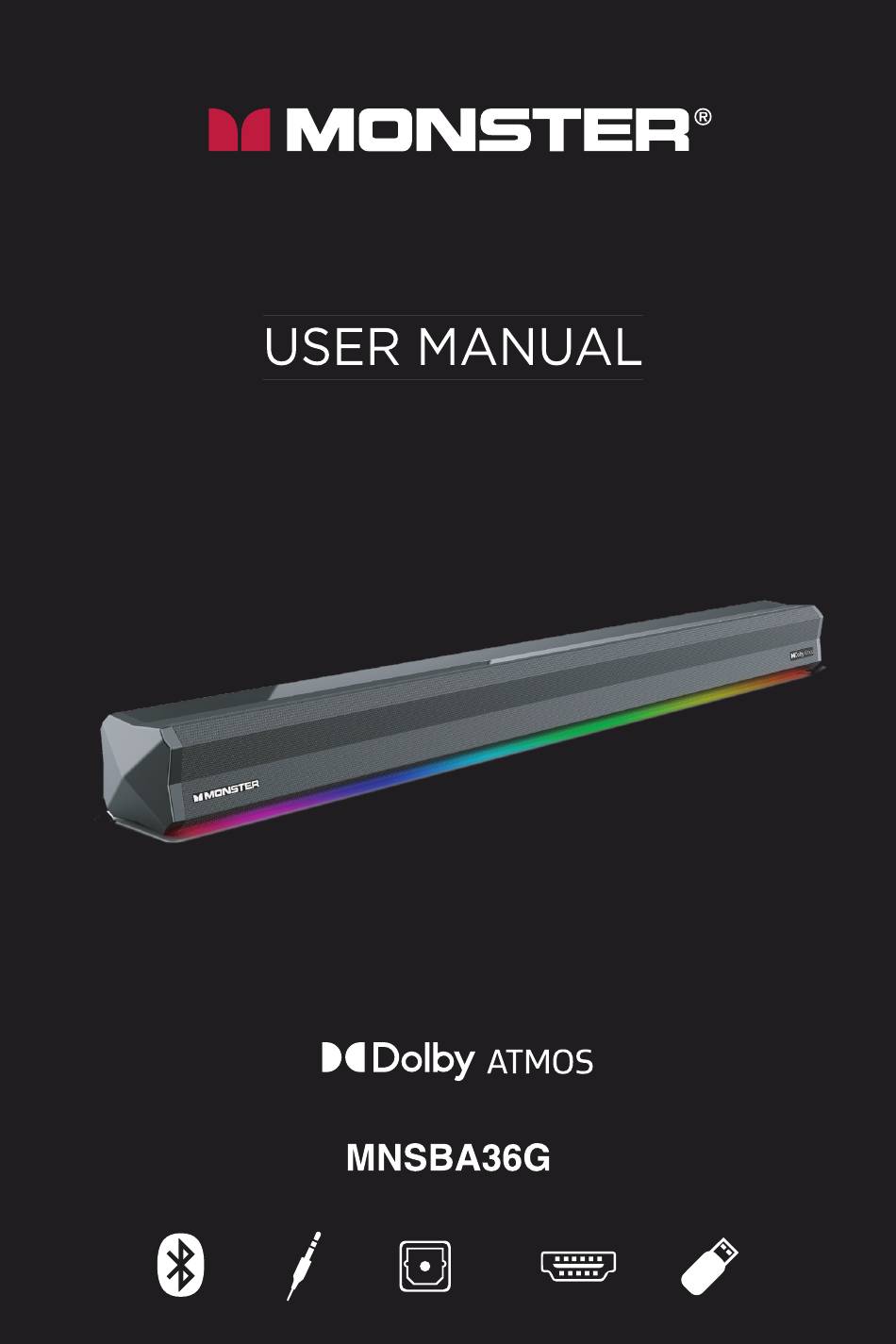

- Page 1 MONSTER AII-IN-ONE 36" INDOOR OUTDOOR ATMOS SOUNDBAR...
-
Page 2: Important Safety Instruction
Important Safety Instruction Thank you for purchasing the MNSBA36G Soundbar. Please read this user manual carefully and keep for future reference. Warning Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. -
Page 3: Important Safety Instructions
7. The apparatus must not be exposed to dripping or splashing liquid, no objects filled with liquids such as vases, should be placed on the apparatus. 8. To prevent fire or shock hazard, do not expose this equipment to direct heat, rain, moisture or dust. -
Page 4: Preparation For Use
Preparation for Use Unpacking and Set Up • Remove the soundbar from the carton and remove all packing material from the soundbar. Save the packing material, if possible, in case the soundbar ever needs to be serviced or transported. • The original carton and packing material is the only safe way to pack your soundbar to protect it from damage in transit. -
Page 5: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 6: Product Diagram
Product Diagram 8888 LED DISPLAY eARC DC IN VOL- OPTICAL Power/Standby INPUT VOL+... - Page 7 REMOTE CONTROL : Press the power button to turn on and turn off the unit. 2. PAIR: Press the "PAIR" button more than 2 seconds to connect or disconnect to the pairing device. : Light Mode L1-L2-L3-…L10, default in Breath mode L2, long press 2S to enter into monochromatic mode L11, L12….L17.
-
Page 8: Positioning The Soundbar
Positioning the Soundbar Place on a flat Surface Place the soundbar horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a cabinet or an a walled shelf. - Page 9 Follow below steps to mount the soundbar on the wall 1. Make 2 holes on the wall with distance same as the wall bracket on the soundbar. 2. Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way make sure leave some space.
-
Page 10: Powering On/Off
OPERATE INSTRUCTIONS Setting the soundbar 1. Plug in the power adapter and the display will light up (Standby mode) 2. Switch on the soundbar by pressing “POWER” button on soundbar or on remote controller. After switching on, the default input mode will appear on display. 3. - Page 11 INPUT PAIR MODE GAME BASS TREB RESET BASS TREB MODE L1: Constant lighting/Constant red on/Constant green on/Constant blue on/Constant white on/ Constant yellow on/Constant purple on/Constant pink on/Constant orange on, 7 colors auto-loop ( each color for 2 secs), APP named SPIN MODE L2: Breathing light mode/Red breathing light/Green breathing light/Blue breathing light/White breathing light/Yellow breathing light/Purple breathing light/Pink breathing light/Orange breathing light, colors breathing mode auto-loop, APP named Breath...
- Page 12 BT mode and LED display on the soundbar will flicker in the Bluetooth pairing mode. 2. Activate the pairing function on your phone or other compatible device and select “MONSTER SBA36G” by BT connection. 3. When successfully paired, you will hear a tone and LED display will turn on “...
-
Page 13: Optical Mode
Optical Mode -Remove the cap of optical cable (keep the cap for the future use); check the direction of the plug. Connect the soundbar and TV with the optical cable. -Use this mode to play music from a TV with optical digital output on the soundbar. In TV sound settings, select the soundbar optical connection (output for audio). - Page 14 POSSIBLE CAUSE SOLUTION PROBLEM/TROUBLE Another input source is selected. Select an appropriate input source. Cancel the mute function. The mute function is activated. The volume of soundbar or TV/other device Increase the volume level on soundbar or is adjusted too low. by remote control or on TV.
- Page 15 PROBLEM/TROUBLE POSSIBLE CAUSE SOLUTION Sound quality of audio Move the device closer to the soundbar, play from a connected or remove any obstacle between the device and The Bluetooth reception is poor. Bluetooth device is the soundbar. poor and connection is not stable.
- Page 16 Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Dolby Vision, Dolby Atmos and the double -D symbol are trademarks of Dolby Laboratories. What is DOLBY ATMOS®? Dolby Atmos® transports you from the ordinary into the extraordinary with breathtaking, moving audio that fills your room and flows above and around you.
-
Page 17: Package Contents
Package Contents INPUT PAIR MODE GAME BASS TREB RESET BASS TREB HDMI Cable 1m *1 Soundbar X 1 Remote Control X 1 Wall Mounting Adapter 1.5m *1 User Manual X 1 Remote control battery QSG *1 Bracket Sets X 1 Source... - Page 18 DISPUTES Model: MNSBA36G ALL DISPUTES ARISING IN ANY WAY FROM THIS LIMITED WARRANTY OR THE SALE, CONDI- TION OR PERFORMANCE OF THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH FINAL AND BINDING ARBITRATION, AND NOT BY A COURT OR JURY. Any such dispute shall not be combined or consolidated with a dispute involving any other person’s or entity’s Product or claim, and specifically, without limitation of the foregoing, shall not...
Need help?
Do you have a question about the MNSBA36G and is the answer not in the manual?
Questions and answers
Will the soundbar work with arc? TV doesn't have earc
Yes, the Monster MNSBA36G soundbar will work with a TV that has ARC but not eARC. However, for the full Dolby Atmos experience, eARC is required. When connected via ARC, some advanced audio features may not be supported.
This answer is automatically generated
@Chip If either your TV or soundbar does not have eArc capabilities, or if the content being played is not in eArc compatible format, you will not be able to fully utilize this feature. While your setup that was described in your question post, may still work, the picture and sound quality will not be upgraded to their full potential. Therefore, it is important to consider these factors when choosing your home entertainment setup to ensure the best audio and visual experience possible.
