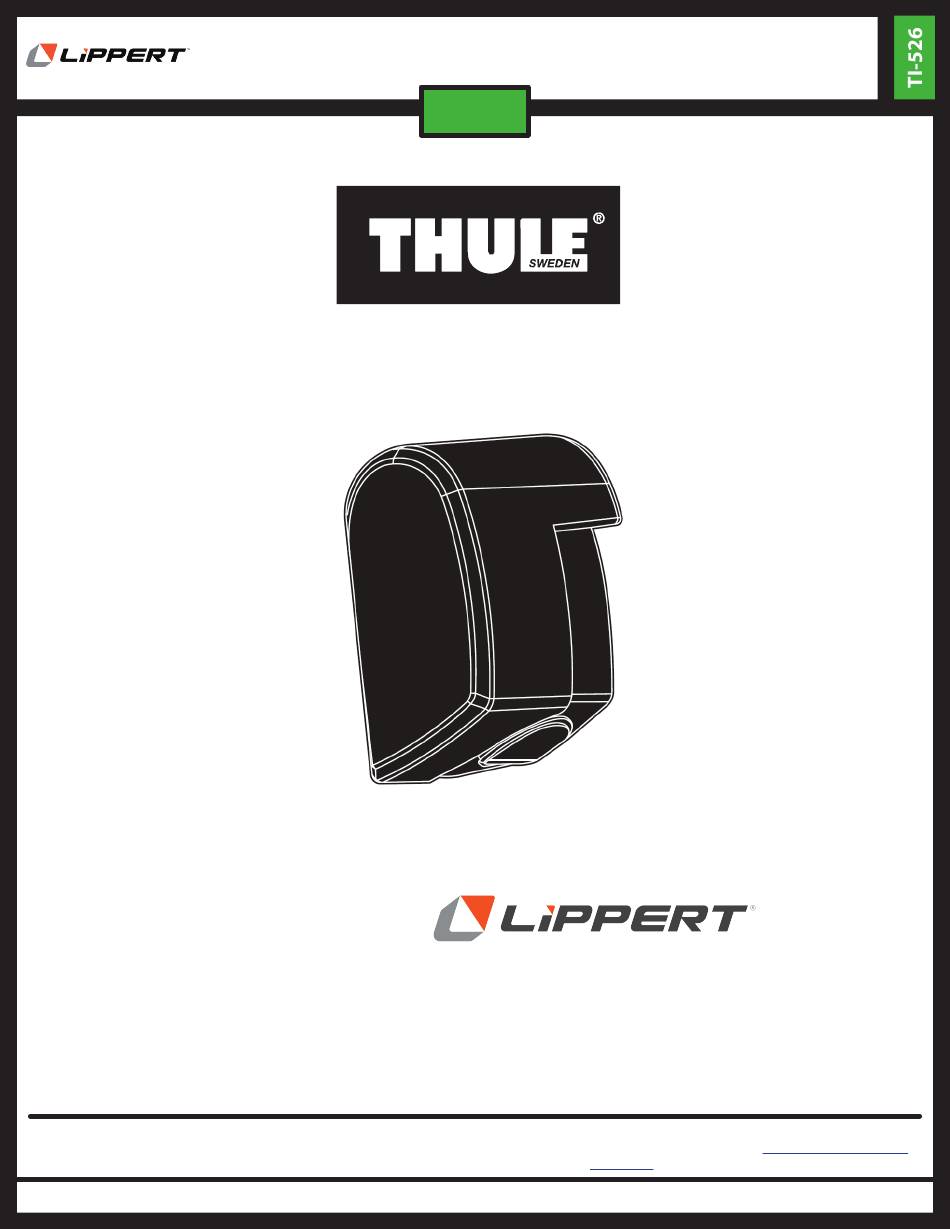

THULE CROWN 5200
MOTOR KIT 12V TH
AWNING
301199, 301294
Manufactured for
Lippert provides this and other Thule product manuals for download
from its website at https://support.lci1.com/thule-awnings.
As a supplier of a broad array of highly-engineered components in the recreation and transportation product markets, safety, education and customer satisfaction are
our primary concerns. Should you have any questions, please do not hesitate to contact us at 432-LIPPERT (432-547-7378) or by email at customerservice@lci1.com.
Self-help tips, technical documents, product videos and a training class schedule are available at
lippert.com
or by downloading the LippertNOW app.
Page 1
Rev: 07.15.2024
CCD-0008882
Advertisement
Table of Contents
Related Manuals for Lippert Thule 301199
Summary of Contents for Lippert Thule 301199
- Page 1 As a supplier of a broad array of highly-engineered components in the recreation and transportation product markets, safety, education and customer satisfaction are our primary concerns. Should you have any questions, please do not hesitate to contact us at 432-LIPPERT (432-547-7378) or by email at customerservice@lci1.com.
-
Page 2: Installation
INSTALLATION √ Instructions Thule CROWN 5200 Motor Kit 12V TH 301199, 301294 Bring your life 5AT911-02 | 3380043100 thule.com 2023-04-05... - Page 4 Markise - Markiza - Anleitung Instrukcje AWNING - INSTRUCTIONS Luifel - Toldo - Instructies Instruções Store - Markýza - Instructions Návod Tendalino - Ponjava - Istruzioni Navodila Safety Toldo - Güneşlik - Awnings Instrucciones Talimatlar 遮阳篷 - Markisen - 说明 Instruktioner オーニング...
- Page 5 INSTALLATION INSTALLATION 1 WARNINGS & INFO Instructions Safety 2 CONTENT 3 TOOLS TX20 5AT911-02...
- Page 6 INSTALLATION 4 INSTALLATION MAX. MAX. 5AT911-02...
- Page 7 INSTALLATION 5AT911-02...
- Page 8 INSTALLATION 5AT911-02...
-
Page 9: Electrical Installation
INSTALLATION 5 ELECTRICAL INSTALLATION OPERATION ONLY BY SWITCH WITH MOMENTARY CONTACT! Control Box Control Box Switch Switch Motor 12V DC THULE MOTOR 12V THULE CONTROL BOX Motor 12V DC TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Supply 12V DC Supply 12V DC Current Nominal: 10A / Peak: 20,5A Maximum Voltage 18V DC... - Page 10 INSTALLATION Thule Awning Control Box TO 5200 12V RED/ROT/ROOD/ BLACK/SCHWARZ/ Warning Codes LED ROUGE/ROSSO/ROJO/ ZWART/NOIR/NERO/ Motor not connected RÖD/PUNAINEN/RØD/ NEGRO/SVART/ Motor short circuit Motor RØD/CZERWONY/ MUSTA/SORT/SVART/ blocked/end Motor VERMELHO/ČERVENÁ/ CZARNY/PRETO/ time out < 9V RDEČE/KIRMIZI/红/レッ ČERNÁ/ČRNA/SIYAH/ > 18V ド/레드 黑色/ブラック/블랙 Button in &...
-
Page 11: Troubleshooting
INSTALLATION TROUBLESHOOTING 6 MANUAL OVERRIDE 1/16 Inch 5AT911-02 1/16 Inch... - Page 12 INSTALLATION 5/16 Inch 5/16 Inch 5AT911-02...
- Page 13 Thule NV, Kortrijkstraat 343 – BE 8930 Menen, BELGIUM infoRV@thule.com www.thule.com 5AT911-02 © Thule Group 2023. All rights reserved.
