- Page 1 USER GUIDE iTECHBC25 INTELLIGENT BATTERY CHARGER...
- Page 2 Step 4. Flip the power switch, the LED lights should now be on. Step 5. Verify that the iTECHBC25 is functioning properly. You will know the iTECHBC25 is outputting power when the power, charging, and battery type LEDs are solid.
-
Page 3: Table Of Contents
CONTENTS Product Overview Display Panel LED Charge Indicator Unit Operation Multistage Charging Process Fault LED Indicators Installation Install Location Secure Mounting Maintenance Selection of Cable Size Safety Precautions Contact Us Back page... -
Page 4: Product Overview

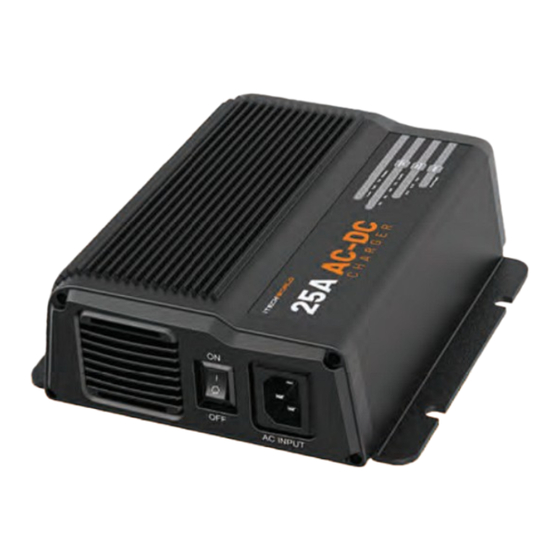

TEMPERATURE SENSOR PORT OUTPUT FUSE REMOTE (COMING SOON) Introducing the iTECHBC25 Battery Charger, a smart and multi-stage lithium battery charger that incorporates the latest switch-mode battery charging technology. Engineered for 12-Volt batteries, this charger ensures rapid and charging without voltage drop. -
Page 5: Key Features
The iTECHBC25 not only enhances the longevity of battery cells but also acts as a safeguard against premature battery failure. Additionally, it features an innovative power supply function designed to awaken and recharge iTechworld lithium batteries out of safe mode, effectively revitalising your batteries. -
Page 6: Led Charge Indicator
Fault Power supply LED This mode allows the iTECHBC25 to output a stable voltage and current without being connected to a battery. UNIT OPERATION: Ensure the switch on the front panel is set to the OFF position, and the 240V AC supply is disconnected. -
Page 7: Multistage Charging Process
Stage 4 - Maintenance outputting power. Once your battery drops below a predetermined level (depending on your battery type), the iTECHBC25 will kick back in, maintaining your battery' s state of charge. FAULT LED INDICATORS: Fault LED... -
Page 8: Installation
Minimise cable lengths between the charger and the MOUNTING SURFACE: If you are mounting the iTECHBC25 on a hard surface like metal or a wood board, consider using anti-vibration mounts between the unit and the mounting surface. This helps reduce vibrations and extends the life of the charger. -
Page 9: Secure Mounting
Additionally, inspect and tighten the DC output terminal screws as needed. SELECTION OF CABLE SIZE: The iTECHBC25 charger cables may not be long enough for your application. If they need extending, please refer to the table below with the recommended wire sizes. -
Page 10: Fuse Specifications
Butt Splice Connector BN6 for 6 AWG FUSE SPECIFICATIONS: The iTECHBC25 is equipped with an inbuilt 240V AC input fuse, along with an external 30A blade fuse. The external fuse is replaceable if blown, it is essential to install all recommended... -
Page 11: Specifications
217 x 190 x 72mm Up to 95% Charge Control Charge Type 4-Stage Selectable Battery Type Calcium LiFePO4 Bulk 14.4V 14.1V 14.7V 15.5V 14.4V Absorbtion Float 13.4V 13.5V 13.4V 13.6V The iTECHBC25 complies with AS/NZS 60335.2.29 including Australian deviations. 11 11... -
Page 12: Safety Precautions
Disclaimer: While iTechworld has taken every precaution to ensure the accuracy of the contents of this user guide, iTechworld assumes no responsibility for any errors or omissions. without notice. It is best to view our website for the most up-to date information... - Page 13 WARNING: Ensure that the continuous output current of the charger does not exceed the battery’ s recommended maximum charging current. If you are unsure of the maximum charging current of your battery, please consult your battery’ s manufacturer. WARNING: When using the charger to charge a lithium battery, ensure that it contains an inbuilt battery management system (BMS) that features under and over-voltage injury.
-
Page 14: Contact Us
CONTACT US 1300 483 249 When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger Whether you’re an avid camper, 4WD enthusiast , freedom seeker or camper,...
