4. INSTALLATION STEPS
4.7 - STEP 7: (OPTIONAL) CONNECT THE DC DIMMING CABLE TO THE POWER SUPPLY AND THEN TO A
DIMMING CONTROLLER

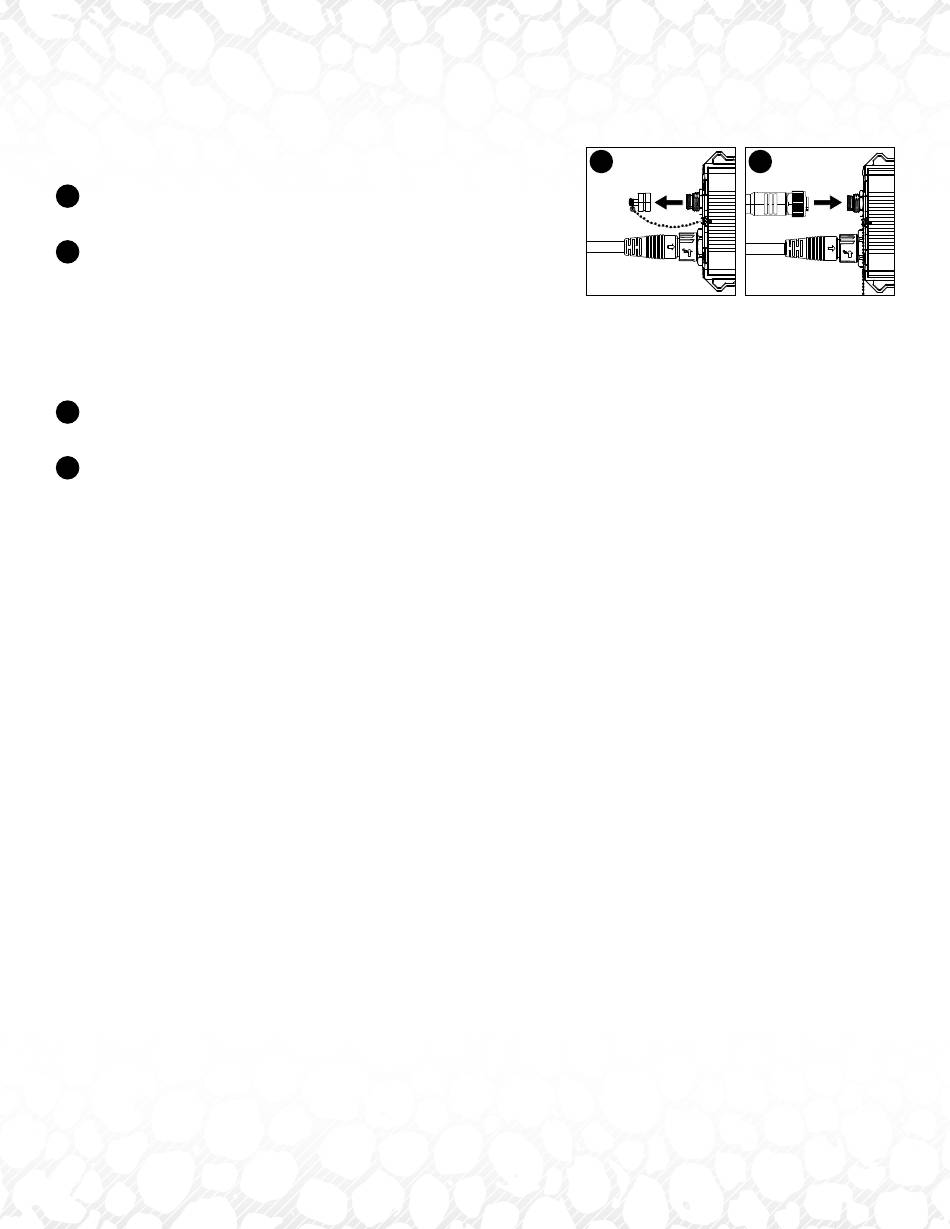

The DC dimming cable uses a coaxial type A-code M12 3-pin connector to
connect the cable to the power supply. To install the DC dimming cable:
1
Remove the dust cap from the power supply dimming port and let it hang by
the chain.
2
Match up the connector end on the cable (female) to the power supply dimming
port (male) and twist the ring on the connector clockwise to tighten until hand-
tight. Check that the connector is securely attached by lightly tugging on the
cable. The cable will not come off if properly installed. Failure to test the cable
connection may result in electrical shock or damage to the product or connected
lighting controller.
4.8 - STEP 8: POWER AND TEST THE SYSTEM
Turn on AC power to the system. All light fixtures should be on and
1
at equal levels of maximum brightness.
If a dimming controller has been connected, test the light fixtures by
2
dimming to off and ramping back up to maximum.
THIS COMPLETES THE INSTALLATION!
If the system testing was not successful, please refer to Section 5 for Troubleshooting.
For additional assistance, please contact:
https://fluence-led.com/support-center/
