Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individual of potential
dangers in attempting to service a product. Products powered by electricity should be serviced o repaired
only by experienced professional technicians. Any attempt to service or repair the product or products
dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Part List. It is essential
that these critical parts are replaced with manufacturer´s specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission the manufacturer.
We suggest to handles such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1.Specification
2.Parts Identification
3.Wiring Diagram
4.Parts List
RG-E130A
PESMX2370005CE
Version:2301

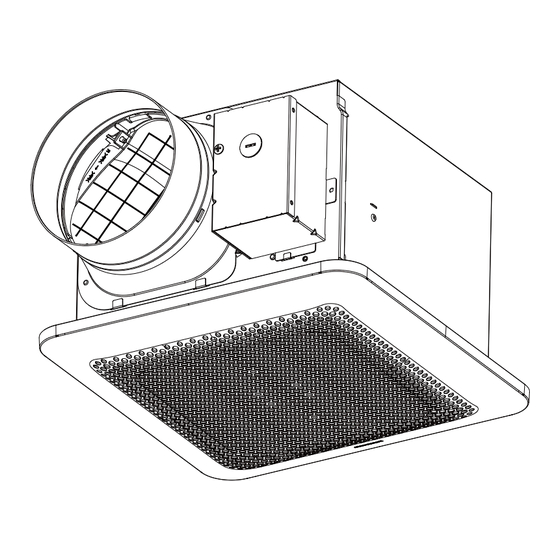

Ventilating Fan
PAGE
1
2, 3
4
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Whisper Suite 130 and is the answer not in the manual?

Questions and answers

Scott Toren
January 21, 2025

What is the current draw

Subscribe to Our Youtube Channel

Summary of Contents for Panasonic Whisper Suite 130

  • Page 1 PESMX2370005CE Version:2301 Service Manual Ventilating Fan RG-E130A This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individual of potential dangers in attempting to service a product.
  • Page 2: Specification

    1. Specification RG-E130A...
  • Page 3: Parts Identification

    1. Parts Identification RG-E130A Main Body (3pcs) (5pcs) (2pcs) Main PCB (2pcs)
  • Page 4 2. Parts Identification RG-E130A Main PCB (3pcs)
  • Page 5 Fan body Junction box Neutral White Main control circuit AC120V 60Hz Live (Fan) Black (Power supply) Main control Motor circuit Green (Ground wire)
  • Page 6: Parts List

    4. Parts List RG-E130A Main Body Part No. Part Name Q'ty Remark FFVC811LH900 Frame Assembly FFV15VQ10910 Adapter Assembly FFV08VKS3M915 Connector Plate FFV11QCL1331 Ground Wire FFV11QCL1301A Connector Assy FFV11QCL1912A Junction Cover FFV11QCL1M21AX Motor FFVM15VQ10904C Motor Support FFV0400115S Blade 10 FFV7020021S 11 FFVM15VQ10906B Casing 12 FFVE130APCB Main PCB section...
