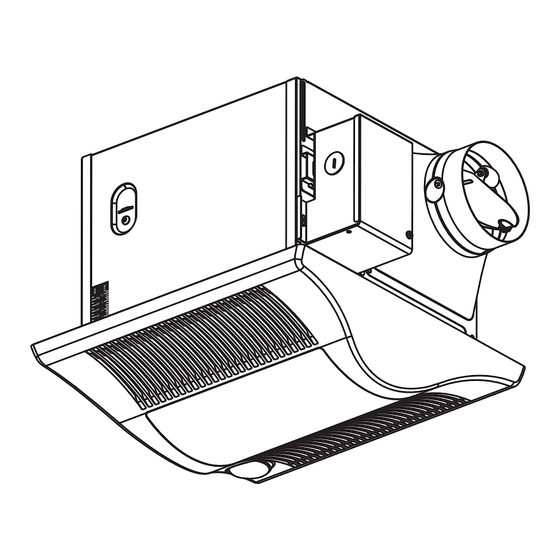

PEG0904029CE Version:0901 Service Manual Super Quiet Ventilating Fan/Light Combination Whisper Green-Lite (North American Market) FV-08VKSL2 FV-08VKML2 SPECIFICATIONS Power consumption(W) Weight Duct Air deliver at 0.1''WG Speed Noise diameter Voltage Frequency Lighting unit Model No. (sones) (inches) direction (Hz) Fan body (rpm) Ib.(...
Page 2
FV-08VKML2 Main Body Section Grille Unit Lighting Unit Circuit Unit (2pcs) (3pcs) Ventilation Unit Frame Unit Adapter Unit...
FV-08VKML2 Packing & Accessories Section Grille Unit Fan Body Sensor Assy.
Page 7
FV-08VKSL2 Main Body Section Grille Unit Lighting Unit Circuit Unit (2pcs) (3pcs) Ventilation Unit Frame Unit Adapter Unit...
Page 8
FV-08VKSL2 Frame Unit (4pcs) (3pcs) Adapter Unit...
Page 9
FV-08VKSL2 Ventilation Unit (4pcs) (5pcs) Grille Unit (2pcs) (2pcs) (2pcs)
Page 10
FV-08VKSL2 Lighting Unit Circuit Unit (2pcs) (2pcs) (2pcs) Assembly State...
Page 11
FV-08VKSL2 Packing & Accessories Section Grille Unit Fan Body...
Page 12
FV-08VKML2 Junction box Switch box Main control circuit Black Black White Power supply Black White White N AC120V 60Hz Blue DC-Motor Adjustment switch Green Orange Purple Air volume preset switch Delay time preset switch Sensor Yellow Yellow White White Black...
Page 13
FV-08VKML2 Main Body Section Part No. Part Name Q'ty Remark FFV3400117S Grille Unit FFV3420023S Lighting Unit FFV0930016S Circuit Unit FFV6400005S Ventilation Unit FFV1600105S Frame Unit FFV0000084S Adapter Unit FFV0800001S Casing Support FFV7000011S Machine Screw For Fixing Lighting Unit & Adapter Unit,Included In Accessory A...
Page 14
FV-08VKML2 Grille Unit Part No. Part Name Q'ty Remark FFV5500021S Sensor Cover FFV5560017S Spring FFV5560026S Spring Set Plate FFV3410018S Lamp Cover FFV7000055S Pan Tap Screw For Fixing Spring Set Plate Lighting Unit Part No. Part Name Q'ty Remark FFV3420024S Lighting Assy.
Page 15
FV-08VKSL2 Main Body Section Part No. Part Name Q'ty Remark FFV3402114S Grille Unit FFV3420023S Lighting Unit FFV0930017S Circuit Unit FFV6400005S Ventilation Unit FFV1600107S Frame Unit FFV0000085S Adapter Unit FFV0800001S Casing Support FFV7000011S Machine Screw For Fixing Lighting Unit & Adapter Unit,Included In Accessory A FFV7000097S Truss Screw For Fixing Circuit Unit FFV7000065S Bind Screw...
Page 16
FV-08VKSL2 Grille Unit Part No. Part Name Q'ty Remark FFV5560017S Spring FFV5560026S Spring Set Plate FFV3410018S Lamp Cover FFV7000055S Pan Tap Screw For Fixing Spring Set Plate Lighting Unit Part No. Part Name Q'ty Remark FFV3420024S Lighting Assy. FFV3420005S Night Lamp FFV3420007S Fluorescent Lamp Circuit Unit Part No.
