Summary of Contents for Panasonic Whisper Green FV-08VKM3
Page 1

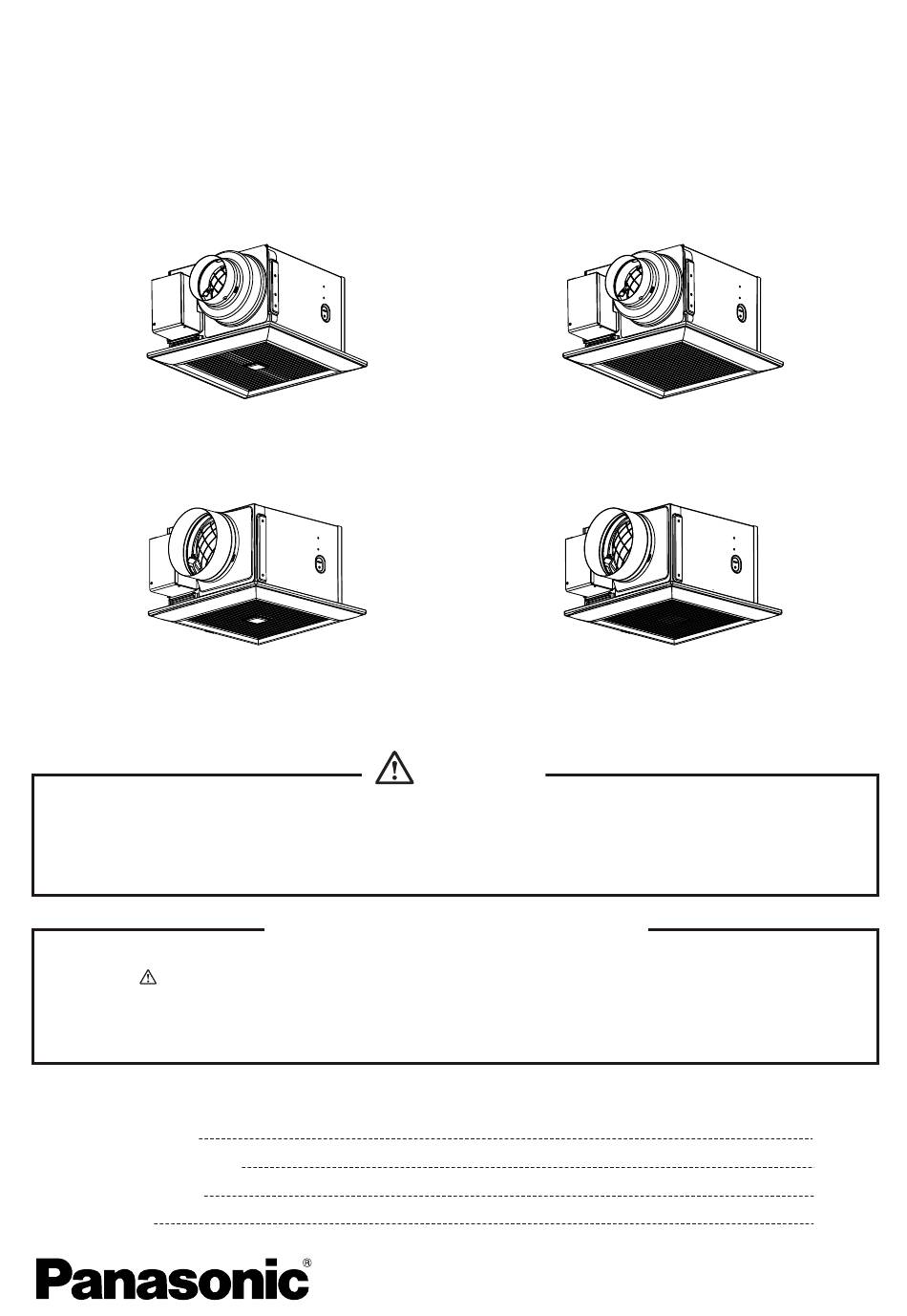

PEG1009010CE Version:1401 Service Manual Ceiling Mount Ventilating Fan Whisper Green (North America Market) FV-08VKM3 FV-08VKS3 FV-13VKM3 FV-13VKS3 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
2.Parts Identification FV-08VKM3 Main Body Section (3pcs) (2pcs) Details Of Wiring Section CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. (3pcs) ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. (4pcs) (4pcs) (5pcs)
Page 4
2.Parts Identification FV-08VKS3 Main Body Section (3pcs) (2pcs) Details Of Wiring Section CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. (3pcs) ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. (4pcs) (4pcs) (5pcs)
Page 5
2.Parts Identification FV-13VKM3 Main Body Section (3pcs) (2pcs) Details Of Wiring Section (3pcs) CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. (4pcs) (4pcs) (5pcs)
Page 6
2.Parts Identification FV-13VKS3 Main Body Section (3pcs) (2pcs) Details Of Wiring Section (3pcs) CAUTION: To reduce the risk of injury to persons,install fan at least 2.1m(7feet)above the floor. ATTENTION: Afin de reduire les risques de blessures corporelles, Installer le ventilateur a au moins 2,1m(7 pieds)du sol. (4pcs) (4pcs) (5pcs)
Page 7
2.Parts Identification Replace Main PCB Assembly The main PCB assembly is commonly used in below models.If you replace PCB,please set up the switch according to below table firstly. Switch seting condition for PCB Model Part No. Part Name (SW103、SW102) FV-08VKM3 FFV3740015S Main PCB Assembly FV-08VKS3...
4.Parts List FV-08VKM3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000116S Adapter Assembly FFV0900052S Connector Plate FFV0900049S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly 10 FFV3700324S Motor Lead Wire Assembly 11 FFV0960001S Nylon Clamp 12 FFV3700327S Motor Support 13 FFV0400103S Blade...
Page 10
4.Parts List FV-08VKM3 Part No. Part Name Q'ty Remark 41 FFV2540113S Installation Instruction English,For CA Market/USA Market 42 FFV2540114S Installation Instruction French,For USA Market (42) FFV2540115S Installation Instruction Spanish,For CA Market 43 FFV0010200S Accessory A 44 FFV4710210S Grille Case Assembly 45 FFV4710322S Right Pad 46 FFV4710323S Left Pad 47 FFV4710330S Sensor Pad...
Page 11
4.Parts List FV-08VKS3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000117S Adapter Assembly FFV0900053S Connector Plate FFV0900051S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700323S Motor Assembly 10 FFV3700324S Motor Lead Wire Assembly 11 FFV0960001S Nylon Clamp 12 FFV3700327S Motor Support 13 FFV0400103S Blade...
Page 12
4.Parts List FV-08VKS3 Part No. Part Name Q'ty Remark 41 FFV4710322S Right Pad 42 FFV4710323S Left Pad 43 FFV9000972S Packing Case Assembly FFV7000108S Truss Tap Screw FFV7000065S Bind Screw FFV7000168S Earth Screw Assembly FFV7000109S Stainless Steel Screw FFV7000089S Truss Tap Screw FFV7000164S Pan Tap Screw FFV7000074S Truss Tap Screw FFV7000140S Pan Tap Screw...
Page 13
4.Parts List FV-13VKM3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000118S Adapter Assembly FFV0900052S Connector Plate FFV0900049S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700324S Motor Lead Wire Assembly 10 FFV3700323S Motor Assembly 11 FFV0960001S Nylon Clamp 12 FFV3700326S Motor Support...
Page 14
4.Parts List FV-13VKM3 Part No. Part Name Q'ty Remark 41 FFV2540113S Installation Instruction English,For CA Market/USA Market 42 FFV2540114S Installation Instruction French,For USA Market (42) FFV2540115S Installation Instruction Spanish,For CA Market 43 FFV0010200S Accessory A 44 FFV4710210S Grille Case Assembly 45 FFV4710322S Right Pad 46 FFV4710323S Left Pad 47 FFV4710330S Sensor Pad...
Page 15
4.Parts List FV-13VKS3 Part No. Part Name Q'ty Remark FFV0420027S Bracket Cover FFV1600111S Frame Assembly FFV0000119S Adapter Assembly FFV0900053S Connector Plate FFV0900051S Connector Assembly V FFV1340008S Earth Lead Wire Assembly FFV2800012S Junction Cover FFV0800001S Casing Support FFV3700324S Motor Lead Wire Assembly 10 FFV3700323S Motor Assembly 11 FFV0960001S Nylon Clamp 12 FFV3700326S Motor Support...
Page 16
4.Parts List FV-13VKS3 Part No. Part Name Q'ty Remark 38 FFV2540114S Installation Instruction French,For USA Market (38) FFV2540115S Installation Instruction Spanish,For CA Market 39 FFV0010200S Accessory A 40 FFV4710210S Grille Case Assembly 41 FFV4710322S Right Pad 42 FFV4710323S Left Pad 43 FFV9000974S Packing Case Assembly FFV7000108S Truss Tap Screw FFV7000065S Bind Screw...
