Chapter II Operation
2

Operation

2.1 Basic Operation
Screen Description
* Startup Screen

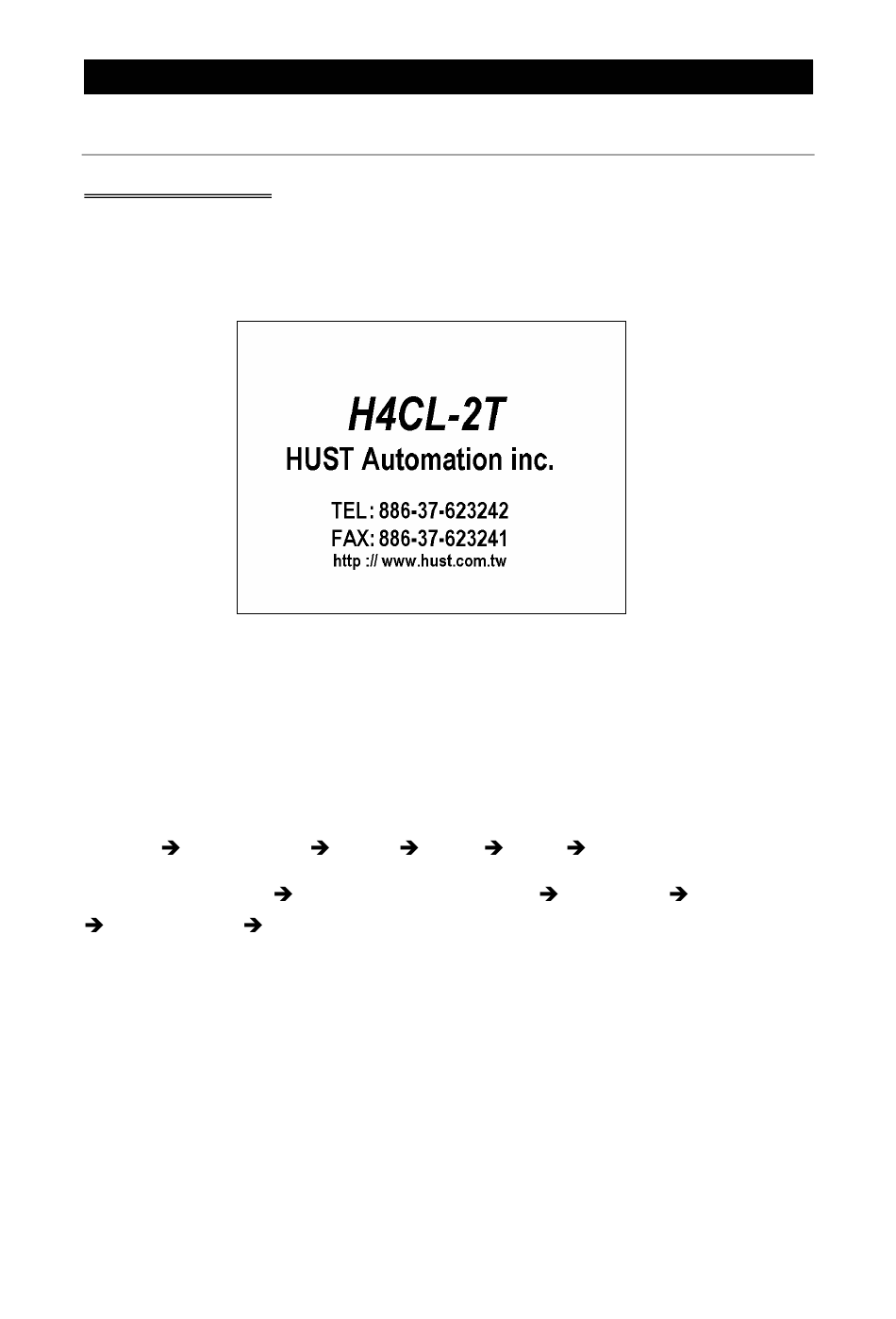

After powering the controller, the following startup screen displays:
Fig. 2-1
After 3 seconds, the next screen displays according to the "Mode Selection"
setting.
When turning the "PRON" knob from left to right, the following modes are
displayed in order:
"Graph" "MPG - Test" "Auto" "MDI" "Edit"
"Program Selection" "Computer Transmission" "Teaching" "Manual x 1"
"Manual x 10" "Manual x 100"
"Computer Transmission" and "Teaching" modes are not used. Perform
transmission using a PC.
