HUST CNC-H4CL-T Manual

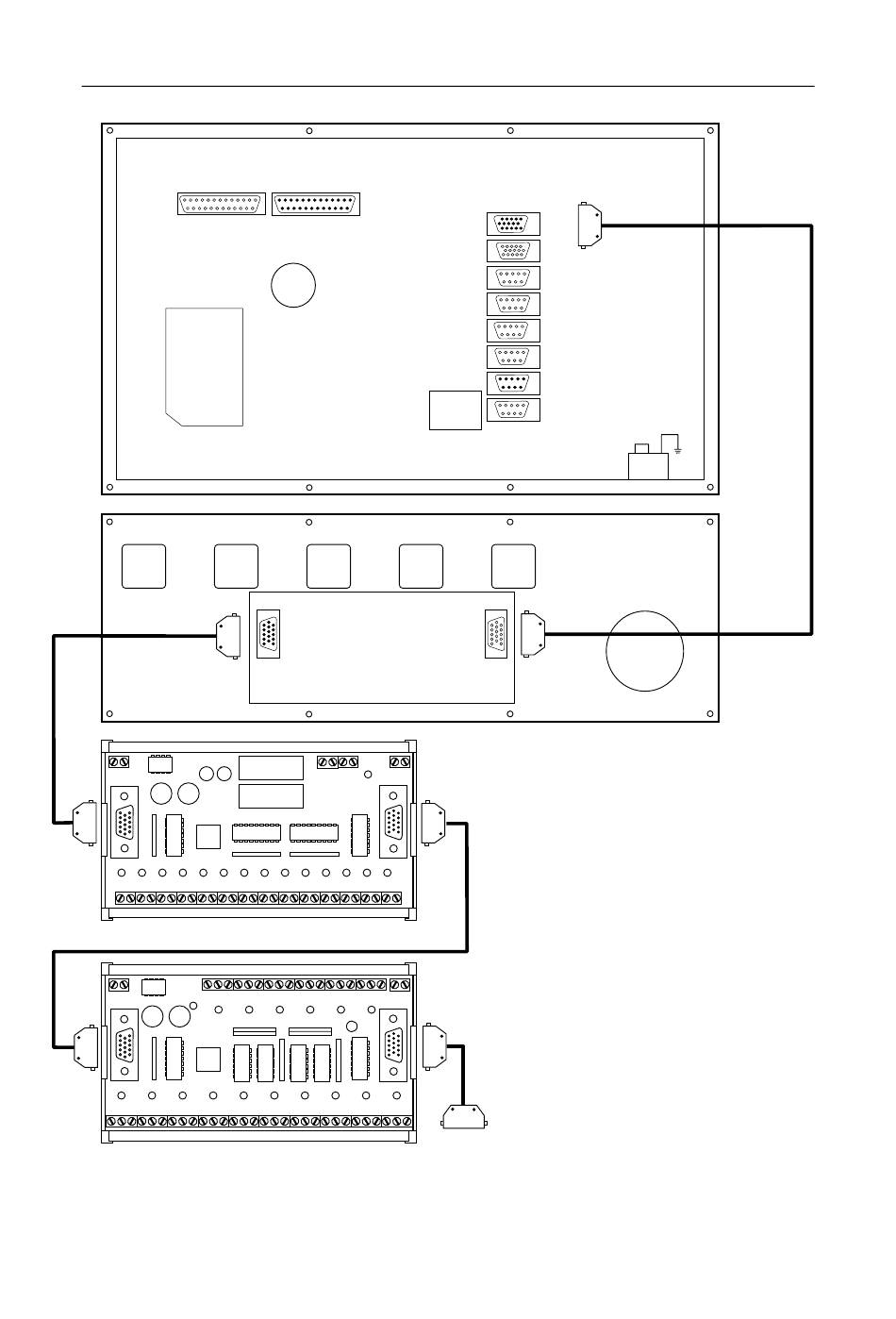

5.4.5 H4CL-L Auxiliary panel + SIO wring and explanation
INPUT OUTPUT
ODD 2
EVN 2
ODD 1
EVN 1
Expansion Output Board
Expansion Input Board
SIO
D/A
X-AXIS
Y-AXIS
Z-AXIS
A-AXIS
MPG
RS232
Attention
1. The signal will decay without input the 24V for
each expansion Input or Output board.
2. All DB 15 PIN wire must used isolate the paired cable.
3. Expansion INPUT board：Only one you can used
The start input signal from PLC : I144~I159
4. Expansion OUTPUT board：Only two you can used
The first output signal from PLC :O128~O143
The second output signal from PLC :O144~O159
5. It must have the SIO Module then you can used
the expansion I/O board.
H4CL type ：Used the Hcon software to check
#10889= 0 None the SIO Module.
#10889=10 The expansion I/O board is validity.
Fig. 5-27
5 - 24
AC110 220V±10%
R T
CNC
PANEL
BOARD
of wiring SIO for H4CL-L
