HUSTCNC-H4CL-T Manual

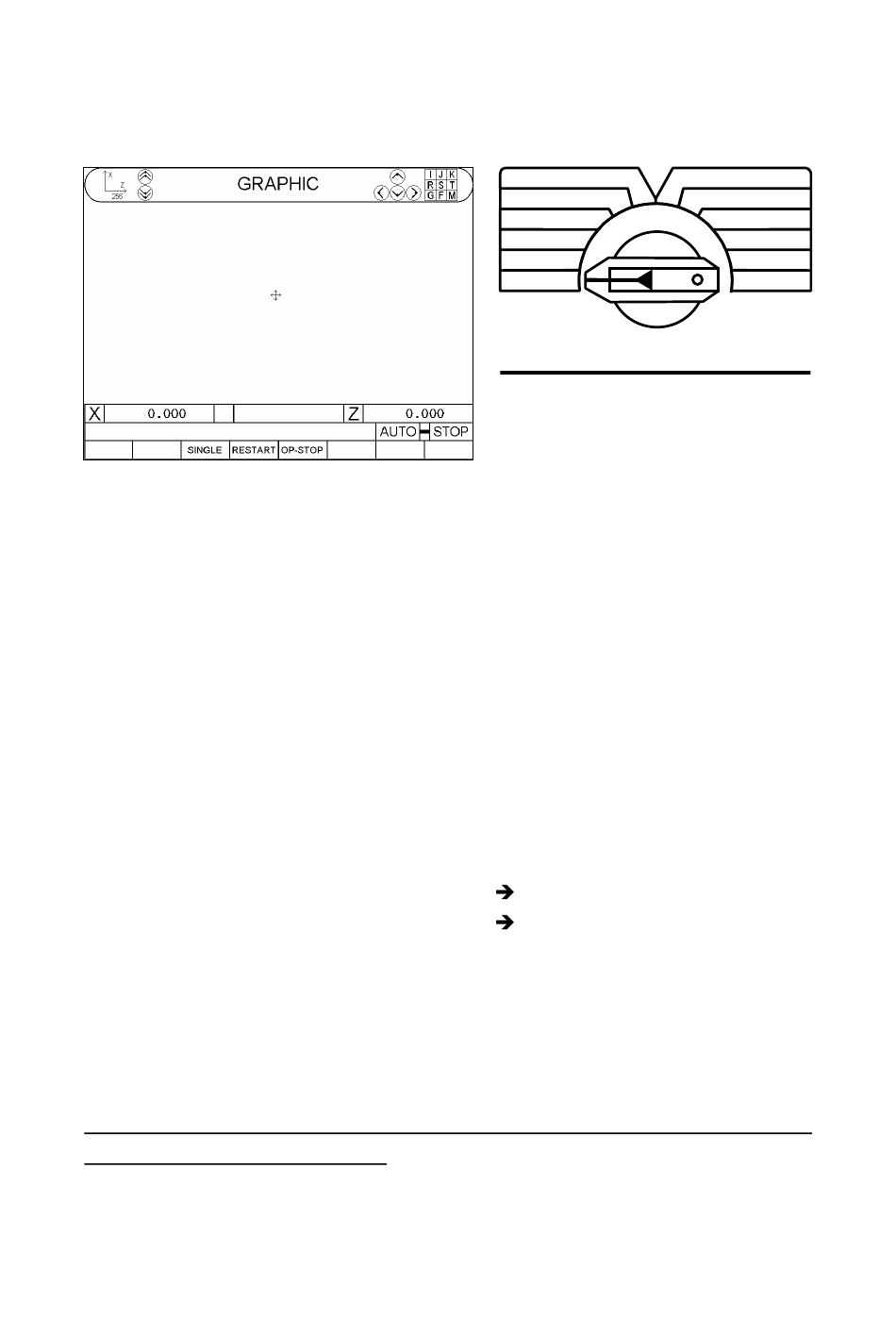

* Graph Mode Screen
The following screen displays when the "Mode Selection" knob is set to "Graph":
The "+" in the center of the screen indicates the zero position. It can be
moved with the Cursor key, or via the characters on the top right corner of the
screen.
The number 256 at the top left corner of the screen represents the current
horizontal ratio of the graph.
To clear the image, press the "Clear" key.
There are two graph methods: "Graphing While Moving", "Quick Graphing"
Switching method: Press the "Quick" in the graph mode before the program
"Graphing While Moving": The positioning command of the servo axes and M, T,
"Quick Graphing":
The description of the soft keys "Block Execution", "Restart", and "Optional Stop"
is the same as that in auto mode.
starts.
(Press ON and OFF)
HotKey Indicator ON
HotKey Indicator OFF
S codes are performed (the same as auto mode).
The servo axes are locked but the M, T, and S codes are
performed.
2 - 2
PRNO
EDIT
MDI
AUTO
MPG-TEST
GRAPH
Mode
"Quick Graphing"
"Graphing While Moving"
DNC
TEACH
JOG×1
JOG×10
JOG×100
HOME
Fig. 2-2
