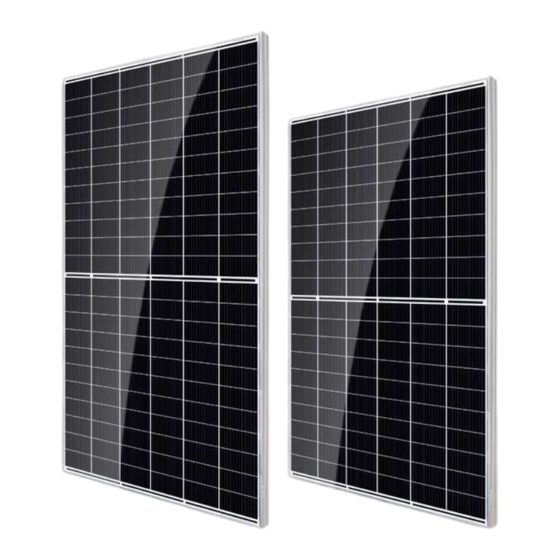

CanadianSolar HiKu7 Unpacking Instructions Manual

CanadianSolar HiKu7 Unpacking Instructions Manual

600w+ modules
Hide thumbs Also See for HiKu7:

Advertisement

Quick Links

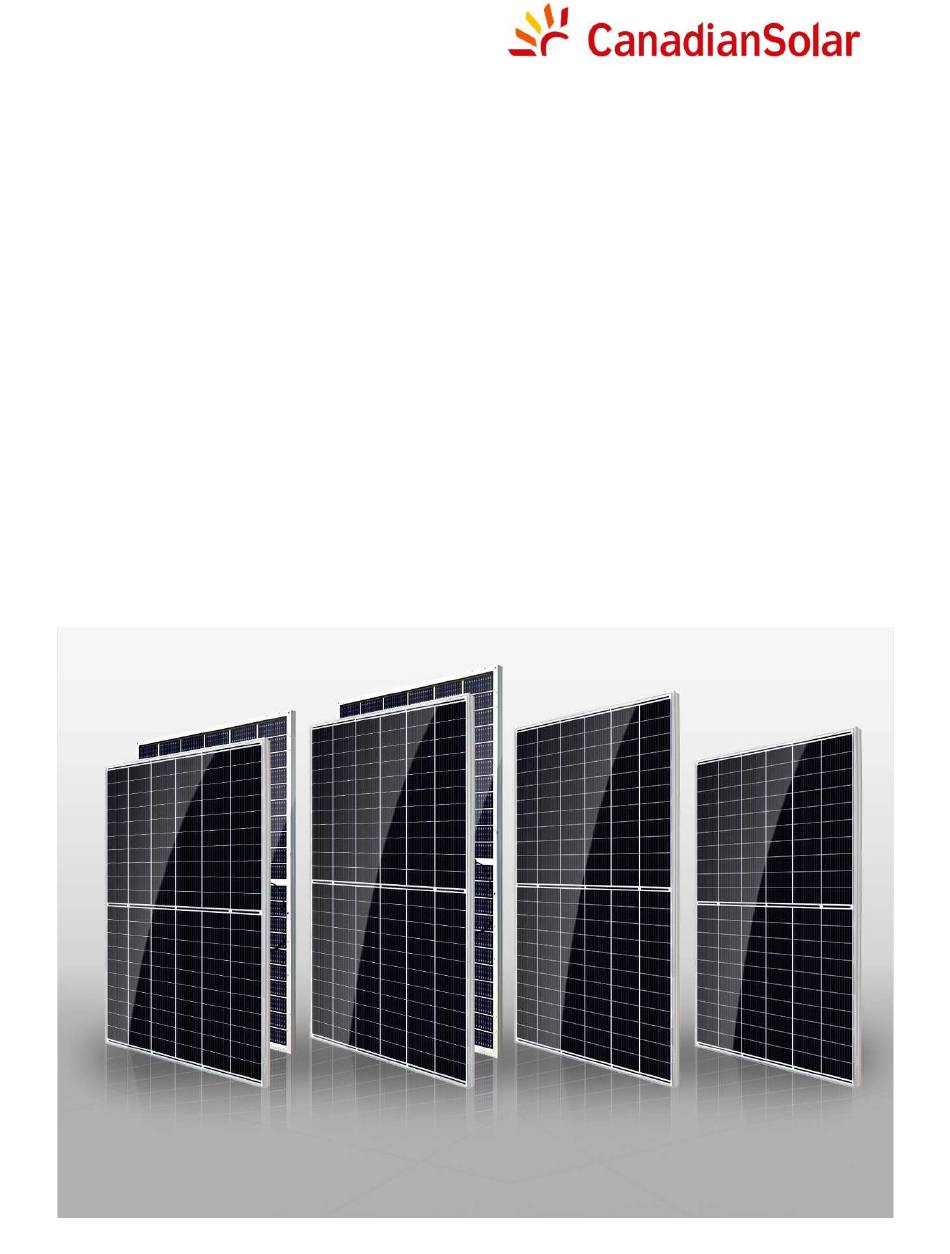

LEADING THE NEW ERA OF
600W+ MODULES
CANADIAN SOLAR
HiKu7 & BiHiKu7
UNPACKING INSTRUCTIONS
HiKu7 & BiHiKu7 – UP TO 670 W

Advertisement

loading
Need help?

Need help?

Do you have a question about the HiKu7 and is the answer not in the manual?

Questions and answers

Summary of Contents for CanadianSolar HiKu7

  • Page 1 LEADING THE NEW ERA OF 600W+ MODULES CANADIAN SOLAR HiKu7 & BiHiKu7 UNPACKING INSTRUCTIONS HiKu7 & BiHiKu7 – UP TO 670 W...
  • Page 2 Step Special instructions before unpacking Special instructions before unpacking CS7N & CS7L modules are packed vertically using an innovative packaging system. Please pay special attention : For the roof projects: It is not allowed to carry the whole unpacked pallet onto the roof.
  • Page 3 Step Place pallets on flat ground Place pallets on flat ground CS7N & CS7L modules are packed vertically using an innovative packaging system. Please place pallets on flat ground. The inclination of the ground should not exceed 4° √ × >4°...
  • Page 4 Appendix Step Unpacking rack making process Unpacking rack making process Unpacking rack support parts: Screw Base Vertical strut Locker Cross-bar Axle Locker Inclined strut (part⑦) (part ②) (part③) (part④) (part⑥) (part⑤) (part①) Assembly process: Step2:put the part ⑥ cross part ③and part ② Step1:put part ④...
  • Page 5 Step Place the unpacking rack Place the unpacking rack The unpacking rack is inserted under the wooden pallet from the side of the pallet with the instruction logo printed on, and the upper check and back lock is installed: Attention: •...
  • Page 6 Step Remove outer packaging straps Remove outer packaging straps Cut off the packing straps outside the packing box Attention: • Please wear gloves to prevent injuries. • then remove the cable ties, avoid bouncing the cable ties on your body. Step Remove the outside paper beams and box top Remove the outside paper beams and box top...
  • Page 7 Step Remove the carton and rest it on the unpacking Remove the carton and rest it on the unpacking rack rack Remove the carton and rest it on the unpacking rack Attention: • Please wear gloves to prevent injuries. • Please Start with "Unpack here“ •...
  • Page 8 Step Take out the modules: one by one Take out the modules: one by one Two workers are required to take modules out of the box. When handling modules always use both hands. Tack out the modules one by one until the last one. Attention: •...
  • Page 9 Step Take out the modules: one by one Take out the modules: one by one If the whole package cannot be completed installation till end of If the whole package cannot be completed installation till end of the day, the remaining modules can be temporarily placed in the the day, the remaining modules can be temporarily placed in the following ways: following ways:...
  • Page 10: Learn More

    • If the customer does not unpack the module according to the steps specified in this manual, we shall not assume any responsibility for the personal and property damage. Damaged package Damaged module LEARN MORE Scan to see how HiKu7 and BiHiKu7 modules are made and tested on YouTube Facebook Instagram LinkedIn...
