Instrument Manual

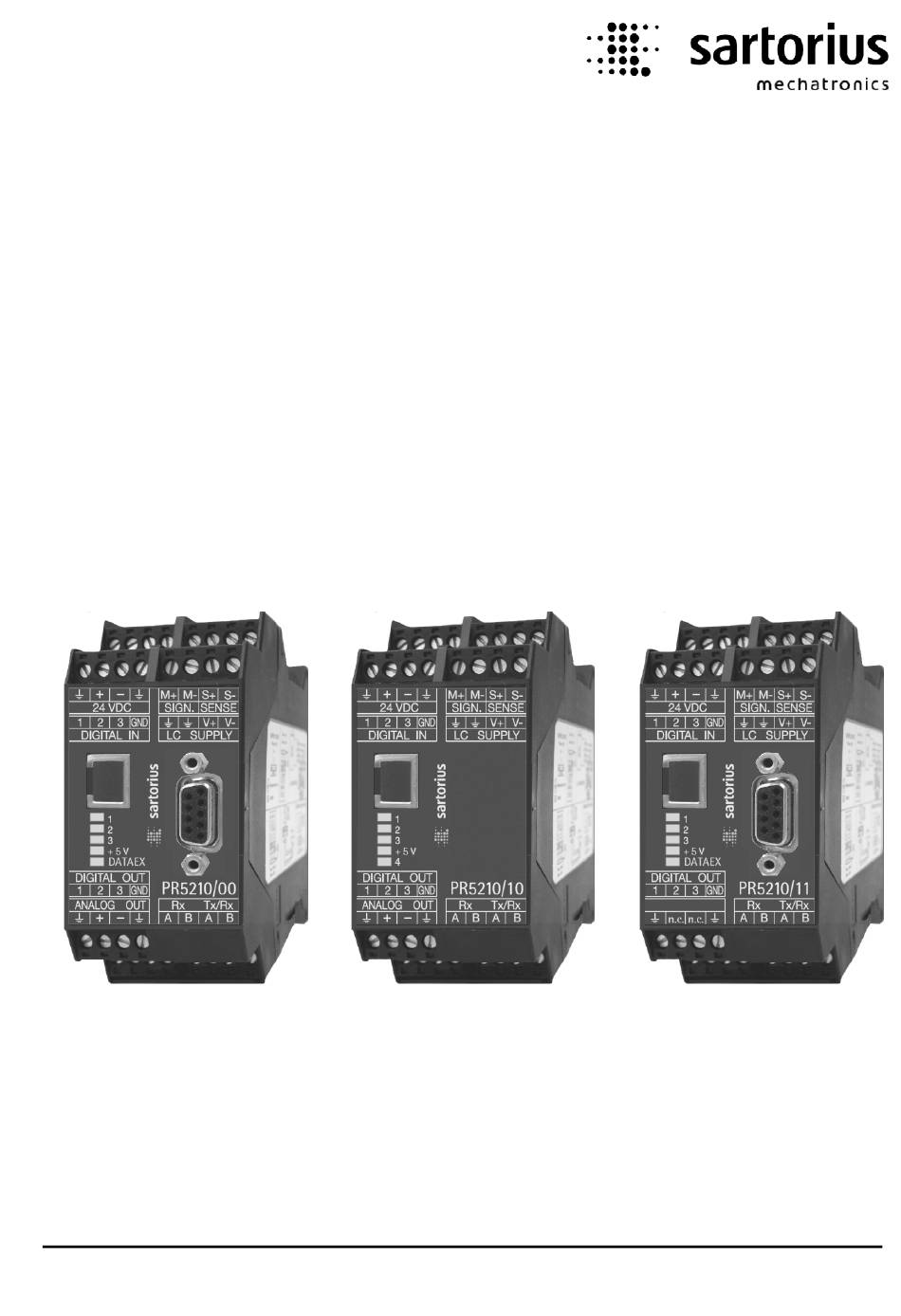

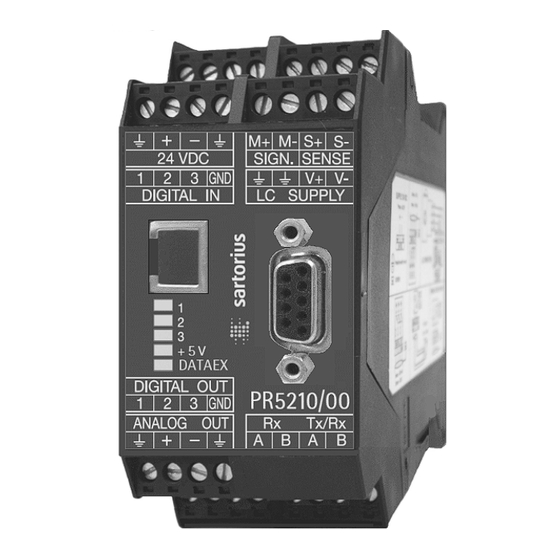

PR5210 Transmitter Series
PR5210/00 ProfiBus Transmitter
PR5210/10 Digital Process Transmitter
PR5210/11 ProfiBus Transmitter (without Analog Output)
Instrument Manual
for PR5210
Sartorius Mechatronics T&H GmbH, Meiendorfer Str. 205, 22145 Hamburg, Germany
Tel:+49.40.67960.303
9499 050 52105
Release: 4.00
Fax:+49.40.67960.383
Edition 5
15.05.2010
