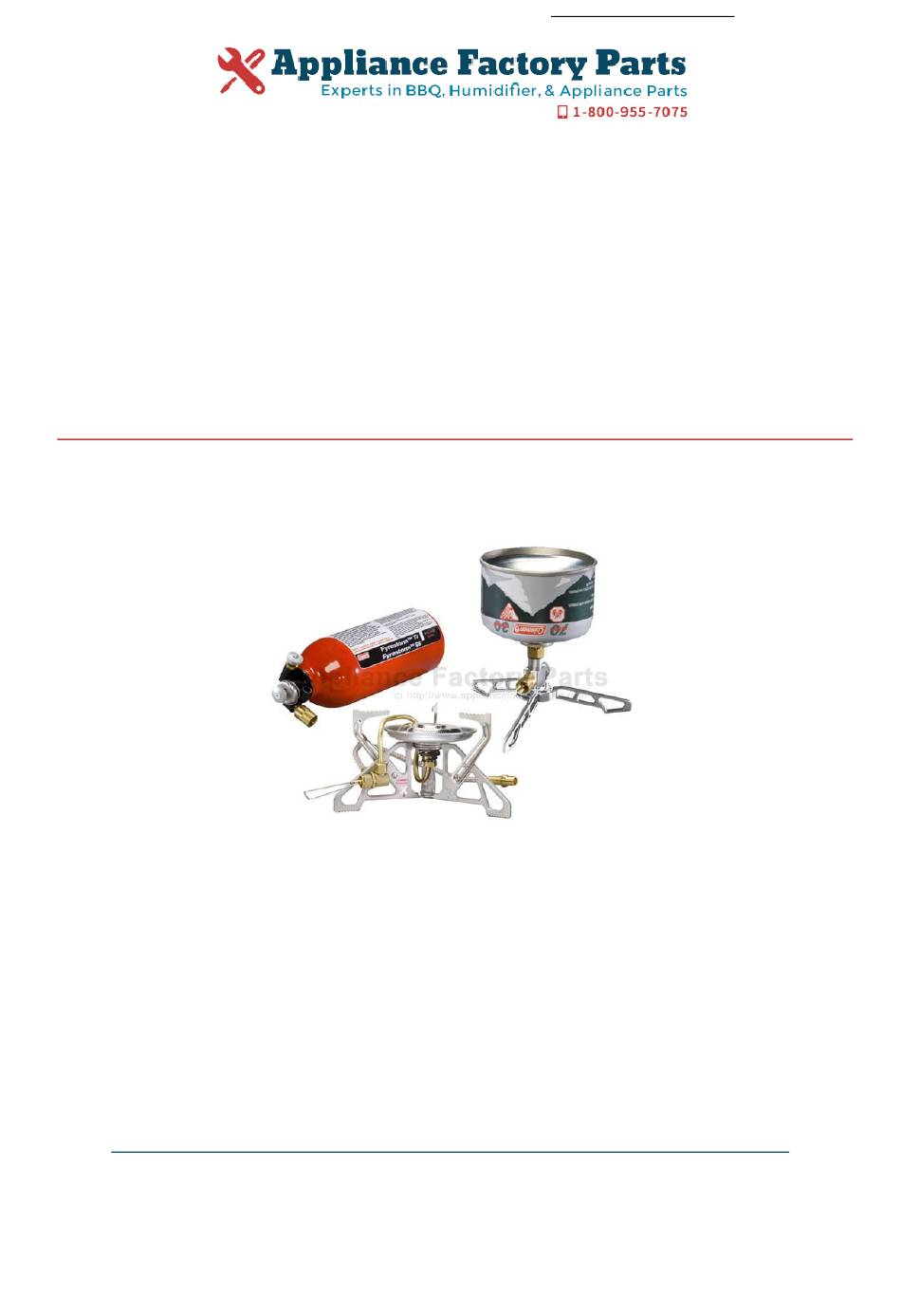

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Coleman 9775-A25 Owner's Manual Shop genuine replacement parts for Coleman 9775-A25 Find Your Coleman Camping Parts - Select From 855 Models -------- Manual continues below --------...
- Page 2 Read this manual carefully before assembling, using or servicing these stoves. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161.
- Page 3 Safety precautions are essential when any 3. Disconnect from Coleman® fuel or LPG fueled equipment is involved. These precautions are necessary when fuel supply. using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage.
- Page 4 Never use the stove in • Never refill disposable LPG canisters. • Use only Coleman ® accessories or parts. spaces that contain or may contain volatile or airborne combustibles, or products such as...
- Page 5 • Clean stove frequently to avoid grease accumulation and possible grease fires. tended while burning. • During Coleman® fuel set-up, check all 9. Keep stove away from flammables. connections for leaks. Liquid Coleman® fuel Never allow fabric, clothing, or any present at connections indicates a leak.
- Page 6 Becoming Familiar with your Coleman® Stove Thank you for purchasing your new Coleman® multi-fuel stove. This stove is a high performance multi-fuel cooking appliance. Operation and control of liquid fuel is different than LPG. We recommend operating your new stove in a safe location outside your home to familiarize yourself with its multi-fuel operation before your next outdoor experience.
- Page 7 USING STOVE WITH COLEMAN® FUEL BOTTLE Identification (Coleman® Fuel Bottle) READ AND FOLLOW NOTE: The reflector disc and windscreen are not illustrated in ADDITIONAL the set up instructions. This is so the features of the stove may INSTRUCTIONS ON be clearly visible and identified. Read about the reflector disc and windscreen in Sections 1 and 15.
- Page 8 FIG. 7 FIG. 6 ■ Use a funnel or suitable filling device and fill with clean, fresh Coleman® fuel. ■ Fill bottle no more than 2/3 full (16 Fl. Oz.). Overfilling can result in fuel leakage and flare up during lighting. Your index finger can be used to check the fuel level.
- Page 9 To Pump (Coleman® Fuel Bottle) ■ Make sure FUEL VALVE is fully “OFF” (Fig 12). ■ Connect hose to threaded fitting on fuel bottle, making sure the bottle is lying on its side with the fuel valve up. Hand tighten the connection (Fig. 13).
- Page 10 To Light (Coleman® Fuel Bottle) NEVER FILL OR LIGHT STOVE INSIDE HOUSE, CAMPER, OR TENT. ■ Make sure fuel bottle is lying level on its side with the FUEL VALVE up (Fig. 16). ■ Turn flame adjuster back and forth several times to clean generator tip (Fig. 19).
- Page 11 Read about the reflector disc and windscreen in Sections 1 and 15. THE CANISTER SUPPORT. NOTE: Use only Coleman® 3250 Butane/Propane Fuel. DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. • Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas.
- Page 12 Set Up (LPG Canister) ■ Unfold canister support legs to detent stops (Fig. 25, 26, and 27) FIG. 25 FIG. 26 FIG. 27 ■ Make sure that the FUEL VALVE on the canister support is fully closed (turned fully clockwise) (Fig.
- Page 13 Leak Check (LPG Canister) WARNING WARNING • Perform leak test outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • BURN HAZARD • Do not use the outdoor stove • Never leave stove unattended until connection has been leak when hot or in use.
- Page 14 DANGER • EXPLOSION - FIRE HAZARD • LPG is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately. • Always attach or detach fuel canisters outdoors; never while stove is lighted, near flame, pilot lights, other ignition sources or while stove is hot to touch.
- Page 15 To Store ■ Make sure stove is cool. ■ Move stove away from flame (including pilot lights) and other ignition sources. ■ If using the fuel bottle, disconnect the fuel hose at the threaded fitting attached to the fuel bottle. ■...
- Page 16 Solution Burner will not Fuel bottle empty. Refill fuel bottle 2/3 full with clean and light or flame fresh Coleman® fuel or unleaded fuel. self- extinguished. Burner will not Little or no pressure in fuel Check connections for leaks and light or flame is bottle.
- Page 17 Replacement Parts List Item Part No. Description 9770-5051 Plunger Assembly 9770-5551 Pump and Valve Assembly R9770-501 Stove Maintenance Kit (includes one item on the next page) 9770-5611 Service Parts Kit (includes several items on the next two pages) 9770-5081 Fuel Bottle Assembly (22 fl. oz. capacity) “O”...
- Page 18 Replacement Parts List Item Part No. Description 9770-5161 Burner Assembly (Titanium) 9775-5161 Burner Assembly (Stainless Steel) 9770-3021 Shield (Titanium) 9775-3021 Shield (Stainless Steel) 9770-6201 Stove Leg Kit (3 pk) (model 9770) 9775-6201 Stove Leg Kit (3 pk) (model 9775) 9770-5021 Valve Assembly 9770-5151 Hose Assembly with Cap...
- Page 19 Replacement Parts List Item Part No. Description 9770-5361 LPG Canister Support Assembly (complete) (Model 9770) 9775-5361 LPG Canister Support Assembly (complete) (Model 9775) 9770-5181 Adapter Valve Assembly with Caps 9770-5271 Leg Kit (3 pk) (Model 9770) 9775-5271 Leg Kit (3 pk) (Model 9775) R9770-120 Windscreen and Reflector Disc “O”...
- Page 20 (approximately 465 g [1 lb.] LPG) in workmanship. Coleman, at its option, will repair or replace this occupied enclosures. product or any component of the product found to be defective 2.
- Page 21 © 2006 The Coleman Company, Inc. Tous droits réservés. Coleman®, Exponent®, et sont des marques déposées alors que Fyrestorm™ est une marque de commerce de The Coleman Company, Inc. © 2006 The Coleman Company, Inc. Todos los derechos reservados. Coleman®, Exponent®, y son marcas registradas y Fyrestorm™...
