Liquid-Fuel Stove
Instructions for use
© 2006 The Coleman Company, Inc.
www.coleman.com
Model 9780 Series
U.S. Pat. No. 5,370,527
Canada Pat. No. 2,089,804
and other patents pending.
IMPORTANT
Read this manual carefully before assembling, using or servicing these stoves. Keep
this manual for future reference. If you have questions about assembly, operation,
servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD:
316-832-8707. In Canada call 1-800-387-6161.

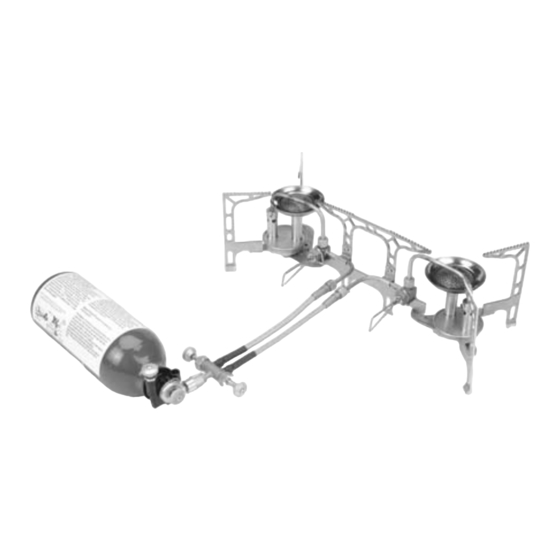

Gemini™
CSA B140.9.2
Portable Pressurized Type Liquid
Petroleum Fuelled Camp Stoves
Reflector disc and
windscreens not shown.
®
Advertisement
Table of Contents
Related Manuals for Coleman Exponent Gemini 9780 Series
Summary of Contents for Coleman Exponent Gemini 9780 Series
-
Page 1: Instructions For Use
Read this manual carefully before assembling, using or servicing these stoves. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161. -
Page 2: For Your Safety
Safety precautions are essential when any Coleman® fuel or liquid fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage. - Page 3 Be sure stove has no flame before opening fuel canister. • Coleman® stove Model 9780 is designed for use only with fuel bottles marked “Model 9780”. Never attempt to attach any other fuel bottle to this stove.
-
Page 4: Technical Characteristics
Coleman. • Clean stove frequently to avoid grease accumulation and possible grease fires. • During Coleman® fuel set-up, check all connections for leaks. Liquid Coleman® fuel present at connections indicates a leak. Technical... - Page 5 Becoming Familiar with your Coleman® liquid fuel Stove Thank you for purchasing your new Coleman® liquid fuel stove. The stove is a high performance liquid fuel cooking appliance. We recommend operating the the stove in a safe location outside your home to familiarize yourself with its liquid fuel operation before your next outdoor experience.
- Page 6 ARE PRESENT AND POSITIONED AS SHOWN. NOTE: The reflector disc and windscreens are not illustrated in the set up instructions. This is so the features of the stove may be clearly visible and identified. Read about the reflector disc and windscreens in Sections 1 and 12.
-
Page 7: Stove Set Up
■ Unscrew bottle from black pump assembly (Fig. 6 and 7). FIG. 6 ■ Use a funnel or suitable filling device and fill with clean, fresh Coleman® fuel. ■ Fill bottle no more than 2/3 full (16 Fl. Oz.). Overfilling can result in fuel leakage and flare up during lighting. - Page 8 To Attach Fuel Bottle ■ Make sure all FUEL VALVES are fully “OFF” (Fig 12, 13, and 14 ). FIG. 12 FIG. 13 FIG. 14 ■ Connect hose to threaded fitting on fuel bottle, making sure the bottle is lying on its side with the fuel valve up.
- Page 9 Note: For proper lighting, perform Step 6 ONLY for the first time use “out of the box” or when pump is dry (for example, after extended storage). This step is not required during subsequent lighting. Initial Fueling of Dry Pump ■...
-
Page 10: Check For Leaks
• Perform leak test outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the outdoor stove until connection has been leak tested and does not leak. ■ Make sure both FUEL VALVES to the burners are fully “OFF” (Fig. 24). - Page 11 ■ Hold lighted match at burner and then open fuel valve (Fig. 28). ■ CAUTION: If stove burns with a high yellow flame or if liquid fuel appears in the burner, immediately turn FUEL VALVE “OFF.” Allow stove to cool. Carefully review the troubleshooting section before relighting stove.
- Page 12 ■ Hold lighted match at second burner and then open the second fuel valve (Fig. 32). ■ CAUTION: If stove burns with a high yellow flame or if liquid fuel appears in the burner, immediately turn FUEL VALVE “OFF.” Allow stove to cool. Carefully review the troubleshooting section before relighting stove.
-
Page 13: Explosion - Fire Hazard
• This stove is very hot during use and can ignite flammables too close to the burners. Keep flammables at least 24 inches from the sides and 48 inches from the top of the stove. - Page 14 ■ The stove may be folded for compact storage (Fig. 35). FIG. 35 • Keep stove area clear and free from combustible materials, gasoline and other flammable vapors and liquids. • Do not obstruct the flow of combustion and ventilation air.
-
Page 15: Troubleshooting
Read and follow the section titled “Initial Fueling of Dry Pump” (see page 8). Refill fuel bottle 2/3 full with clean and fresh Coleman® fuel or unleaded fuel. Check connections for leaks and pump 40 strokes. A yellow flame is normal until the generator warms up. -
Page 16: Replacement Parts List
9770-5051 9770-5551 R9760-501 9770-5611 9780-5081 This Stove Maintenance Kit includes only one generator. Purchase two Stove Maintenance Kits to service both burners. Description Plunger Assembly Pump and Valve Assembly Stove Maintenance Kit (includes one item on the next page) Service Parts Kit (includes several items on the next page) Fuel Bottle Assembly (22 fl. - Page 17 Replacement Parts List Item Part No. 9780-5271 9780-5091 9780-5221 9780-5351 9780-5231 9780-5331 9780-5321 9780-1201 “O” Ring “O” Ring Description Burner Assembly Complete w/ Hdwe (1 pk) Leg - Center Leg Assembly - Right Set Valve and Hose Assembly Valve Assembly - Right...
-
Page 18: Warranty
Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. - Page 19 Notes:...
- Page 20 © 2006 The Coleman Company, Inc. Tous droits réservés. Coleman®, Exponent®, et sont des marques déposées alors que Gemini™ est une marque de commerce de The Coleman Company, Inc. © 2006 The Coleman Company, Inc. Todos los derechos reservados. Coleman®, Exponent®, y son marcas registradas y Gemini™...
