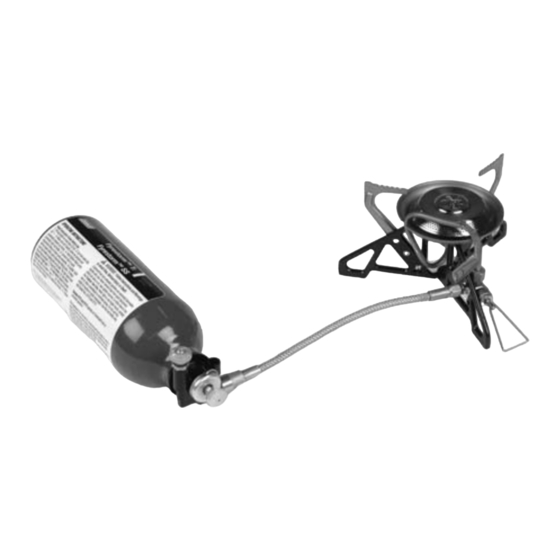

Multi-Fuel Stove
Instructions for use
© 2006 The Coleman Company, Inc.
www.coleman.com
Models 9770 and 9775
U.S. Pat. No. 5,370,527
Canada Pat. No. 2,089,804
and other patents pending.
IMPORTANT
Read this manual carefully before assembling, using or servicing these stoves. Keep
this manual for future reference. If you have questions about assembly, operation,
servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD:
316-832-8707. In Canada call 1-800-387-6161.
Fyrestorm
Fyrestorm
CSA B140.9.2
Portable Pressurized Type Liquid
Petroleum Fuelled Camp Stoves
Reflector disc and
windscreen not shown.
™
Ti
™
SS
®
Advertisement
Table of Contents
Related Manuals for Coleman FYRESTORM 9770
Summary of Contents for Coleman FYRESTORM 9770
-
Page 1: Instructions For Use
Read this manual carefully before assembling, using or servicing these stoves. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161. -
Page 2: For Your Safety
Safety precautions are essential when any 3. Disconnect from Coleman® fuel or LPG fueled equipment is involved. These precautions are necessary when fuel supply. using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage. - Page 3 Never use the stove in • Never refill disposable LPG canisters. • Use only Coleman ® accessories or parts. spaces that contain or may contain volatile or airborne combustibles, or products such as...
-
Page 4: Technical Characteristics
• Clean stove frequently to avoid grease accumulation and possible grease fires. tended while burning. • During Coleman® fuel set-up, check all 9. Keep stove away from flammables. connections for leaks. Liquid Coleman® fuel Never allow fabric, clothing, or any present at connections indicates a leak. - Page 5 Becoming Familiar with your Coleman® Stove Thank you for purchasing your new Coleman® multi-fuel stove. This stove is a high performance multi-fuel cooking appliance. Operation and control of liquid fuel is different than LPG. We recommend operating your new stove in a safe location outside your home to familiarize yourself with its multi-fuel operation before your next outdoor experience.
- Page 6 USING STOVE WITH COLEMAN® FUEL BOTTLE Identification (Coleman® Fuel Bottle) READ AND FOLLOW NOTE: The reflector disc and windscreen are not illustrated in ADDITIONAL the set up instructions. This is so the features of the stove may be clearly visible and identified. Read about the reflector disc INSTRUCTIONS ON and windscreen in Sections 1 and 15.
-
Page 7: Stove Set Up
FIG. 7 FIG. 6 ■ Use a funnel or suitable filling device and fill with clean, fresh Coleman® fuel. ■ Fill bottle no more than 2/3 full (16 Fl. Oz.). Overfilling can result in fuel leakage and flare up during lighting. Your index finger can be used to check the fuel level. -
Page 8: Check For Leaks
To Pump (Coleman® Fuel Bottle) ■ Make sure FUEL VALVE is fully “OFF” (Fig 12). ■ Connect hose to threaded fitting on fuel bottle, making sure the bottle is lying on its side with the fuel valve up. Hand tighten the connection (Fig. 13). -
Page 9: To Turn Off
To Light (Coleman® Fuel Bottle) NEVER FILL OR LIGHT STOVE INSIDE HOUSE, CAMPER, OR TENT. ■ Make sure fuel bottle is lying level on its side with the FUEL VALVE up (Fig. 16). ■ Turn flame adjuster back and forth several times to clean generator tip (Fig. 19). - Page 10 INSTRUCTIONS ON and windscreen in Sections 1 and 15. THE CANISTER SUPPORT. NOTE: Use only Coleman® 3250 Butane/Propane Fuel. DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. • Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas.
- Page 11 Set Up (LPG Canister) ■ Unfold canister support legs to detent stops (Fig. 25, 26, and 27) FIG. 25 FIG. 26 FIG. 27 ■ Make sure that the FUEL VALVE on the canister support is fully closed (turned fully clockwise) (Fig.
- Page 12 Leak Check (LPG Canister) WARNING WARNING • Perform leak test outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • BURN HAZARD • Do not use the outdoor stove • Never leave stove unattended until connection has been leak when hot or in use.
-
Page 13: Explosion - Fire Hazard
DANGER • EXPLOSION - FIRE HAZARD • LPG is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately. • Always attach or detach fuel canisters outdoors; never while stove is lighted, near flame, pilot lights, other ignition sources or while stove is hot to touch. - Page 14 To Store ■ Make sure stove is cool. ■ Move stove away from flame (including pilot lights) and other ignition sources. ■ If using the fuel bottle, disconnect the fuel hose at the threaded fitting attached to the fuel bottle. ■...
-
Page 15: Troubleshooting
Solution Burner will not Fuel bottle empty. Refill fuel bottle 2/3 full with clean and light or flame fresh Coleman® fuel or unleaded fuel. self- extinguished. Burner will not Little or no pressure in fuel Check connections for leaks and light or flame is bottle. -
Page 16: Replacement Parts List
Replacement Parts List Item Part No. Description 9770-5051 Plunger Assembly 9770-5551 Pump and Valve Assembly R9770-501 Stove Maintenance Kit (includes one item on the next page) 9770-5611 Service Parts Kit (includes several items on the next two pages) 9770-5081 Fuel Bottle Assembly (22 fl. oz. capacity) “O”... - Page 17 Replacement Parts List Item Part No. Description 9770-5161 Burner Assembly (Titanium) 9775-5161 Burner Assembly (Stainless Steel) 9770-3021 Shield (Titanium) 9775-3021 Shield (Stainless Steel) 9770-6201 Stove Leg Kit (3 pk) (model 9770) 9775-6201 Stove Leg Kit (3 pk) (model 9775) 9770-5021 Valve Assembly 9770-5151 Hose Assembly with Cap...
- Page 18 Replacement Parts List Item Part No. Description 9770-5361 LPG Canister Support Assembly (complete) (Model 9770) 9775-5361 LPG Canister Support Assembly (complete) (Model 9775) 9770-5181 Adapter Valve Assembly with Caps 9770-5271 Leg Kit (3 pk) (Model 9770) 9775-5271 Leg Kit (3 pk) (Model 9775) R9770-120 Windscreen and Reflector Disc “O”...
-
Page 19: Warranty
(approximately 465 g [1 lb.] LPG) in workmanship. Coleman, at its option, will repair or replace this occupied enclosures. product or any component of the product found to be defective 2. - Page 20 © 2006 The Coleman Company, Inc. Tous droits réservés. Coleman®, Exponent®, et sont des marques déposées alors que Fyrestorm™ est une marque de commerce de The Coleman Company, Inc. © 2006 The Coleman Company, Inc. Todos los derechos reservados. Coleman®, Exponent®, y son marcas registradas y Fyrestorm™...
