Summary of Contents for Ryobi REPHTA20

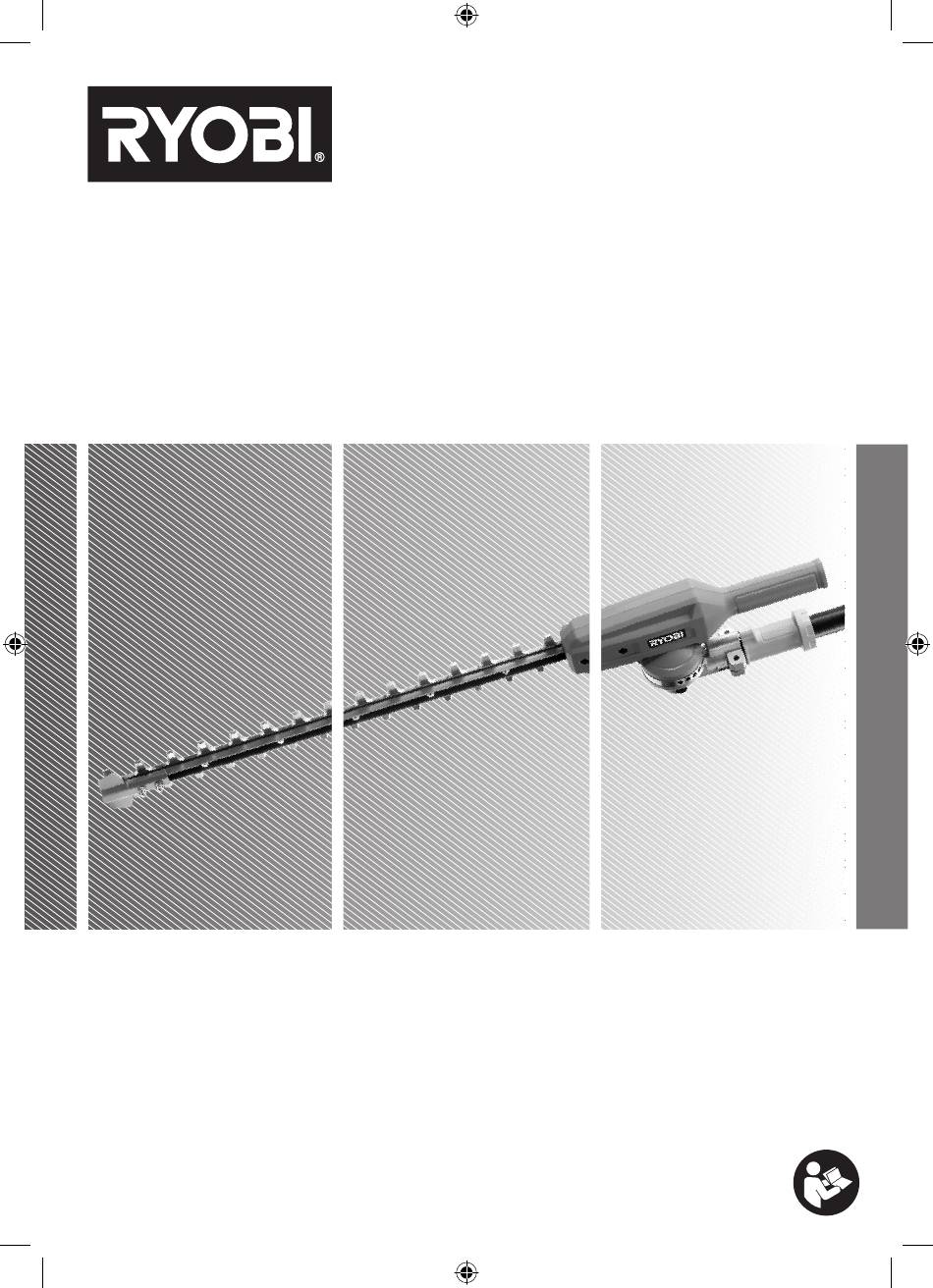

  • Page 1 FRONT PAGE REPHTA20...

  • Page 2: Intended Use

    INTENDED USE PERSONAL SAFETY The pole hedge trimmer attachment is approved for use with the following RYOBI power heads: ■ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not ■...

  • Page 3: Additional Safety Warnings

    ■ Store idle power tools out of the reach of children ■ Never service damaged battery packs. Service and do not allow persons unfamiliar with the power of battery packs should only be performed by the tool or these instructions to operate the power tool. manufacturer or authorized service providers.

  • Page 4: Transportation And Storage

    ■ Do not operate the product in poor lighting. The operator ■ Store the battery pack in a location where the ambient requires a clear view of the work area to identify potential temperature is between 0 °C and 20 °C. hazards.

  • Page 5: Symbols In This Manual

    ■ You may make adjustments and repairs that are described in this manual. For other repairs, contact Guaranteed sound power level customer service. ■ After each use, clean the plastic parts with a soft, dry cloth. Regulatory Compliance Mark (RCM). ■...
  • Page 6 REPHTA20 Blade Puller handle Hanger cap Lock button Blade cover Operator's manual Plant-friendly lubricant Know your product...
  • Page 7 Wear eye, ear, and head protection Press the lock button and remove the hanger cap. when operating the product. Wear non-slip, heavy-duty protective gloves when handling the blade assembly. Wear non-slip, protective footwear that will protect your feet and improve your footing on slippery surfaces.
  • Page 8 Operating the product Cleaning the p.11 product Storing the product p.12...

  • Page 9: Operating The Product

    ≤60˚ ≥15m (50′) OPERATING THE PRODUCT WARNING: Risk of electrocution! Do not operate within 10 m of overhead electrical lines. Position the product at an angle of 60° or less, depending on the specific situation. Keep bystanders at least 15 m away. CAUTION: Always use two hands to operate the product.
  • Page 10 3. Pull out the puller handle. Adjust the pole to the preferred working angle. NOTE: The working angle of the pole hedge trimmer can be adjusted to -90°, -45°, 0°, and 45°. 4. Remove the blade cover. 5. Trim the side of the hedge from left to right. 45°...

  • Page 11: Cleaning The Product

    CLEANING THE PRODUCT 1. Clean the body and handles of the product with a soft, dry cloth. Remove debris from the blades with a stiff brush. WARNING: Do not use water to clean the product. 2. Lubricate the blades lightly before and after use with a plant-friendly lubricant.

  • Page 12: Storing The Product

    STORING THE PRODUCT NOTE: Make sure that the product is clean before storing. 1. Install the blade cover. 2. Turn the screw counterclockwise to release the extension pole from the product. 3. Pull out the puller handle. Adjust the working angle to 0°. NOTE: Adjust the pole angle to 180°...
  • Page 13 4. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition. 5. Use the attachment hanger to hang the product on a wall. Storage...

  • Page 14: Product Specifications

    PRODUCT SPECIFICATIONS For assembling with battery-driven power head (below values are measured on power head of R36XLTR30) Pole hedge trimmer attachment Rated voltage 36 V d.c. Model REPHTA20 No-load speed 1600/min Cutting length 450 mm Strokes per minute Cutting capacity...
  • Page 15 WARNING! The declared vibration total values and the Weight (with the heaviest 5.5 kg battery pack) declared noise emission values given in this instruction manual have been measured in accordance with a Vibration level (in accordance with IEC 62841-1 and IEC 62841- standardised test and may be used to compare one tool with 4-2) another.
  • Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961476038-01...
