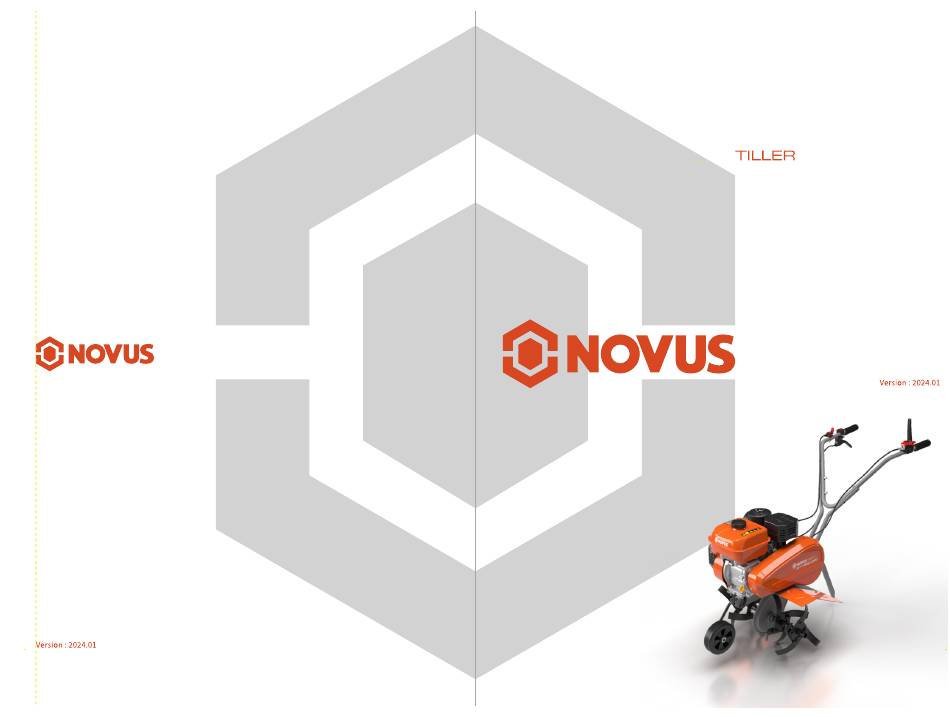

- Page 1 NV21FTG OPERATOR' S MANUAL Novus Performance Products LLC, Tel:800-409-7802 Email:support@novuspowerequipment.com...
- Page 2 ◇This manual covers instruction for operation and maintenance of NV FTG. ◇Novus may revise this manual without prior notice. ◇No part of this manual may be reproduced without written consent. ◇This manual should be considered a part of the tiller and should be transferred along with it when resold.
- Page 4 NV21FTG Assembly Instructions Dangerous: If you do not follow the manual, it may cause injury or even death. Warning: If you do not follow manual, the machine may break down , and even cause death. Notice: If you do not follow manual, the machine may break down and even cause injury.
-
Page 5: Table Of Contents
1. SAFETY ISSUE INSTRUCTION and WARNING 1.1 Training read 1. SAFETY ISSUE INSTRUCTION and WARNING........1 2. MAIN SPECIFICATION and STRUCTURE..........4 Never allow any children to use the machine. Never allow an adult to use the machine without reading the instructions. c) Keep away from children and pets when machine is running. - Page 6 1.5 Safety Lables the following work:leave machine, clean tines, repair machine, and adjust machine. When the machine is in an unmanned operation state, the power output shaft should be disconnected, the additional device should be lowered, put into neutral gear, and the engine should be turned off. A1 Tines protector and safety lables A2 Max noise label The tiller must not be operated without appropriate guards, shields or other...
-
Page 7: Main Specification And Structure
2.2 Structure 2. MAIN SPECIFICATION and STRUCTURE 2.1 Main Specification 3400 Fender Forward: 130; Reverse: 55 Tines Total Tines(pcs) Fuel switch 21" Tilling width Engine switch Tilling depth 8" Working productivity (m²/h) Tines... -
Page 8: Assembly
Tines Standard Tines Tines quantity When the tiller leaves factory, the factory has made routine adjustments, but before using the machine for farming, users should check and adjust each mechanism for better utilization. The engine oil level should be 0.6L. When the engine oil level is lower than 0.6L, using the engine will cause serious damage to the engine! b. - Page 9 Never run the engine without an air filter as this will accelerate engine wear. If the main clutch cable is not properly adjusted, it will affect the normal 2. Tiller adjustment use of the machine. If necessary, start the engine and check whether the clutch can be 2.1 Use and adjustment of clutch separated normally.
-
Page 10: Installation And Adjustment Of Cables
2.2 Adjustment of the throttle cable. (See Photo 7) a. Place the throttle switch in the maximum position. b. Pass the wire rope in the throttle cable through the threading seat and fixed seat above the gasoline engine throttle adjustment plate. -
Page 11: Start Engine
1.4 Turn the engine switch to the "ON" position. 7. START ENGINE 1. Start-up steps Pull recoil handle slowly until you feel resistance, and then pull it quickly. Recoil handle Before starting the engine, the tension pulley must be placed in the released position, that is, the clutch handle is released. -
Page 12: Maintenance
2. Stop Engine ◎ In case of emergency stop, you can directly turn the engine switch to OFF position. ◎Under normal circumstances, use the following steps to stop the engine. After the tiller has worked for a period of time, the connecting 2.1 Turn the throttle switch counterclockwise to the bolts will inevitably loosen and parts will wear out, etc., which minimum (or move the throttle control lever to right to... -
Page 13: Long Term Storage Of Engine
◆3. Tiller maintenance time table (marked √ in the table indicates the maintenance content that should be done) Do not flush the engine with water to prevent water from entering the cylinder through the air filter and muffler, causing damage to the engine. 4.3 Fuel Gasoline is prone to oxidation and deterioration during storage, and gum will form in the oil passages and block the oil passages, causing difficulty in... -
Page 14: Long-Term Storage Of Tiller
4.7 Use engine 9. TROUBLESHOOTING a. Inspect the engine as mentioned above. b. If all gasoline evaporates during storage, please add fresh gasoline. 9.1 Common engine faults and troubleshooting methods Gasoline that has been stored for a long time will oxidize and deteriorate, When the engine cannot be started with the wraparound starter: making it difficult to start the engine. -
Page 15: Wearing Parts List
9.2 Tiller Troubleshooting Sheet 10. WEARING PARTS LIST Adjust engine distance,making the belt The belt is too tight relaxed to meet the requirements of this manual Unable to clutch or clutch incompletely The tensioner pulley has compressed Adjust the clutch cable so that the tensioner pulley moves downward and just touches the the belt when it is relaxed belt. -
Page 16: Parts List
12. PARTS LIST Wearing Parts Code Description 1900200006-0001 Carburetor Gasket 1900100009-0001 Intake Manifold Gasket 1901000005-0001 Air Filter Gasket 1906100004-0001 Exhaust Manifold Gasket 1202000009-0001 Cylinder Head Gasket 1101400006-0001 Crankcase Gasket 2000100338-0001 Starter Assembly 2204700003-0001 Spark Plug 1807900112-0001 Carburetor Assembly 1815000001-0001 Fuel Line Clamp 2001900003-0002 Starter Cup 1903400012-0001... - Page 17 Gear Box Comp Ref No Material Code Description 1102200003-0001 Oil filler plug 2106100002-0006 Gearbox(R) 360720048 Deep groove ball bearing 6303-2Z 2112800006-0001 Chain support block 2100300006-0001 Driving sprocket 2100200014-0001 Chain 08B-1×80L 2105900005-0006 Gearbox(L) 2413200001-0005 Hoop assembly for gearbox 360380064 Hexagon socket head cap screws M6×65 360120005 Hexagon lock nut M6(with non-metallic insert) 2122400002-0001...
- Page 18 Reverse Gear Transmission Box...
- Page 19 Reverse Gear Transmission Box Ref No Material Code Description 360920010 Flexible Retaining Ring for Shaft No.17 360720008 Deep groove ball bearing 6004-2RS 360920011 Flexible Retaining Ring for Shaft No.20 2114600001-0001 Transmission output shaft 2121500005-0001 Forward driven sprocket 360720023 Deep groove ball bearing 6201 2100300003-0001 Driving sprocket 360410017...
- Page 20 Engine Support Frame and Dust Fender Ref No Material Code Description 360300122 Hexagon flange bolts M8×55 360300130 Hexagon flange bolts M8×60 360300005 Hexagon flange bolts M6×12 2604600010-0008 Vice fender 2601600030-0010 Fender (R) 360220040 Hexagon flange bolts M8×20 2401200045-0007 Engine bracket 2601600073-0010 Fender (L) 360180016...
- Page 21 Front Wheel and Resistance Rod Ref N Material Code Description 360260038 Hexagon head bolt M14×90 2401300010-0005 Resistance rod 360120017 Hexagon lock nut M14(with non-metallic insert) 360920001 Flexible retaining ring for shaft No.14 360660038 Flat washer 14 2801100003-0001 Front wheel 2805300001-0001 Front wheel support bar 3402200004-0002 Clamp spring B...
- Page 22 Engine Ref No Material Code Description 360220067 Hexagon flange bolts M8×35 T011180002 Engine 360660010 Flat washer 8 360620008 Spring washer No.8 360010003 Ⅰhexagon nut M8...
- Page 23 Handle Comp Ref No Material Code Description 360220143 Hexagon flange bolts M8×90 2402400001-0010 Handrail connection bends 3419400001-0001 Arc bolt 3417100003-0001 Curved gasket 360210006 Cap nut M8 2400600002-0002 Self-locked hoop 22 3000200004-0001 Throttle cable 2402300055-0008 Handle bar 3010400007-0001 Reverse cable 1815700004-0001 Throttle switch φ22 3010700002-0001 Reverse clutch handle...
- Page 24 Belt Cover Comp...
- Page 25 Belt Cover Comp Ref No Material Code Description 2601500016-0009 Belt guard 360660001 Flat washer No.6 360390018 Hexagon socket button head screws M6×20 360920017 Flexible retaining ring for shaft No.15 2109200007-0001 Driven pulley 2123600016-0001 Belt 13×895LW 360220040 Hexagon flange bolts M8×20 360850005 Cylindrical pin 6×60 2422000007-0001...
- Page 26 Tine Comp Ref N Material Code Description 360250028 Hexagon head bolts(Full thread)M8×25 2700300002-0001 Long tine R 2707400001-0001 Vice tine cylinder 1 2700300001-0001 Long tine L 360620008 Spring washer No.8 360010003 Ⅰhexagon nut M8 2113200001-0001 Snap retainer pin φ8 2706600001-0002 Main tine cylinder 2113200002-0001 Snap retainer pin φ10...
-
Page 27: Warranty
2-Year Limited Warranty Terms and Conditions Novus products are warranted for two (2) years against defects in materials or workmanship when put to ordinary and normal consumer use; ninety (90) days for any other use. For the purposes of all the above warranties, “ordinary and normal consumer use” refers to non-commercial residential use and does not include misuse, accidents or damage due to inadequate maintenance.
