Novus NV18DRTG Quick Start Manual

Rear tine tiller
Hide thumbs Also See for NV18DRTG:

Advertisement

Quick Links

Download this manual
NV18DRTG Rear Tine Tiller Quick Start Guide
Please read the operator's manual and safety warnings carefully before use

Advertisement

loading
Need help?

Need help?

Do you have a question about the NV18DRTG and is the answer not in the manual?

Questions and answers

Related Manuals for Novus NV18DRTG

Summary of Contents for Novus NV18DRTG

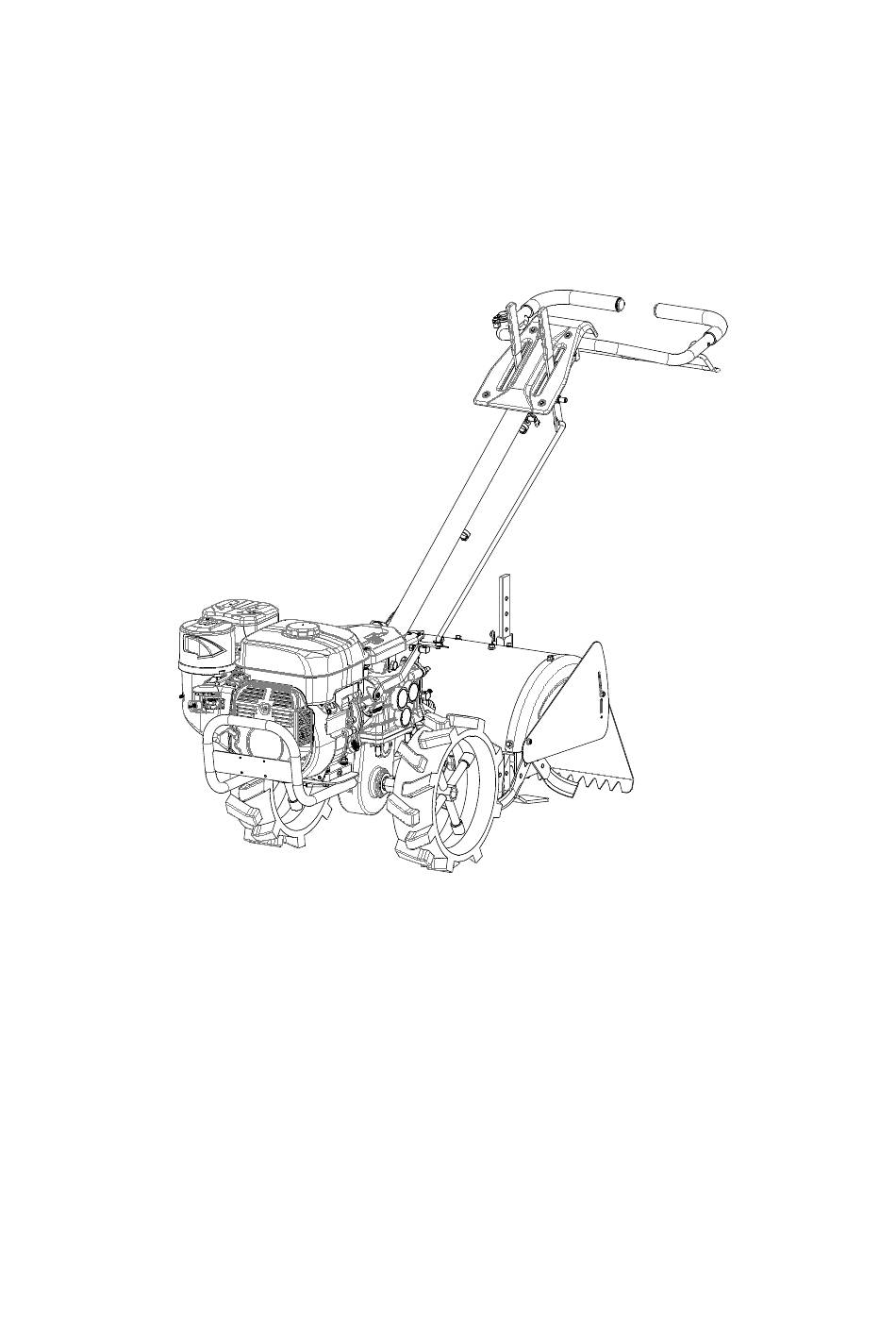

  • Page 1 NV18DRTG Rear Tine Tiller Quick Start Guide Please read the operator's manual and safety warnings carefully before use...
  • Page 2 1. Open the Package and Check All Parts： Package： 1. Rear Tine Tiller *1. 2. Walking Wheel *2. 3. Rear Shield *1. 4. Transmission Cover *1. 5. Anti-Loose Bracket Components *1; Handle Adjustment Components *1; Flat Washer 10*1. 6. Handle Cover*1. 7.
  • Page 3 2. Assembly 2.1 Install Wheels： Install wheels (Part 1) on the hexagonal shaft of the machine, and then insert the pin 8×43 (Part 2) and the circlip B (Part 3). 2.2 Install Handle Support Frame：...
  • Page 4 1. Install part 1 on the host, then insert part 2 into the mounting hole, then install part 5 and 6, and tighten them. 2. Install the shift connecting rod on the connecting block, and then install part 3 and 4 as shown in the figure.
  • Page 5 2.4 Install Rear Shield: Install part 2 on the shield hinge and lock it with part 3 and 1. 2.5 Install Resistance Rod： Assemble part 1 into the hole of the support frame, and insert parts 2 and 3 to fix part.
  • Page 6 2.6 Install Handle Cover Install part 2 on the handle support frame and lock it with part 1 and 3. 2.7 Install Transmission Cover Install part 2 on the transmission and lock it with part 1 and 3.
  • Page 7 2.8 Installation Completes 3. How to Start 3.1 Preparation before Starting 3.1.1 Add engine oil to engine oil sump. 3.1.2 Add engine oil to gearbox.
  • Page 8 3.1.3 Add engine oil to the air filter, remove the air filter cover, and add about 0.1 liter of SAE-10W-30 oil. 0.1L SAE-10W-30 3.1.4 Unscrew the fuel tank cap and fill with gasoline.
  • Page 9 3.2 Start the Engine 1. Shift to N gear. 2. The pulley cable drag rod should be released. 3. Turn on the engine switch. 4. Turn on the throttle switch. 5. Close the choke, pull the recoil handle and start the engine. 6.
  • Page 10 4. Operate the Tiller 1. Shift to working gear. 2. Pull pulley cable drag rod up, and the machine will start to work.
