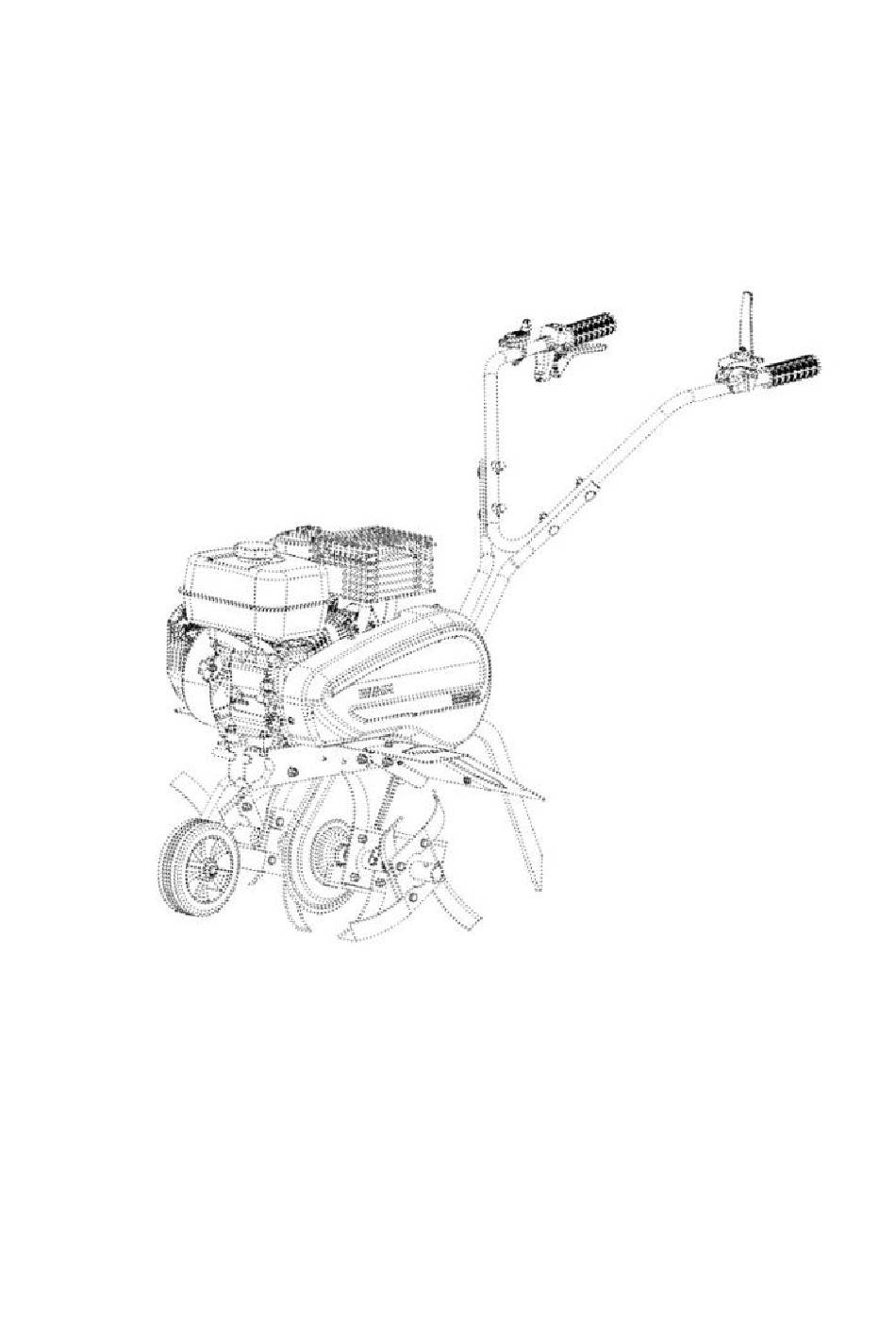

- Page 1 NV21FTG Tiller Quick Start Guide Please read the operator's manual and safety warnings carefully before use...
- Page 2 1. Package ② ③ ④ ⑤ ⑥ ⑦ ⑧ Tiller ②Side Tine Shield ③Front Wheel Assembly ④Resistance Rod ⑤Handle Connect Bending Pipe ⑥ Left Outer Tine ⑦Right Outer Tine ⑧Tools 2. Assembly 2.1 Install Outer Tines Install left and right outer tines into the barrel of inner tine respectively.
- Page 3 2.3 Install Front Wheel Insert the front wheel support rod into the corresponding round hole at the front end of the engine bracket. After passing through the engine bracket, fix another end with circlip B. 2.4 Install Handle Connect Bending Pipe Use two M8×90 bolts to assemble the handle connect bending pipe into the corresponding hole at the rear of the engine bracket.
- Page 4 3. How to start 3.1 Preparation before starting 3.1.1 Turn counterclockwise to remove oil dipstick, add 0.6L engine oil into the engine oil sump. Check engine oil. The engine oil level should be within the mark on the oil dipstick. 3.1.2 Turn counterclockwise to remove the fuel tank cap.
- Page 5 3.2.2 Pull recoil slowly until you feel resistance, and then pull it quickly. When engine rotates continuously, wait for 10 seconds, and then slowly turn choke to place of OPEN. 3.2.3 Turn the throttle control lever toward the inside of the tiller handle to the farthest position. Then press the tail of the lock buckle to unlock, press the clutch handle, and the tiller will start.
