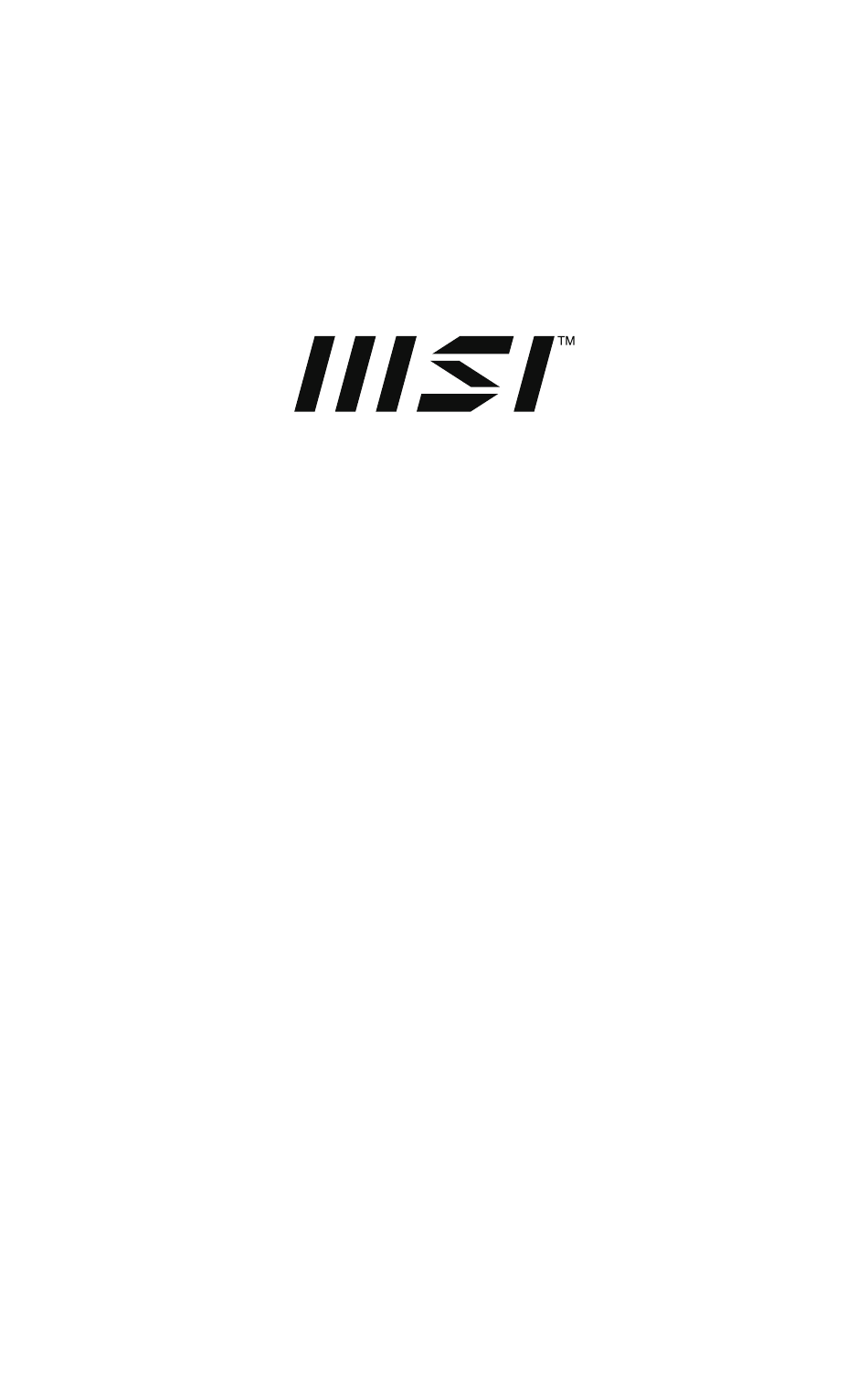

- Page 1 PRO Series LCD Monitor PRO MP273U (3PB4) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................8 OSD Setup ........................9 OSD Keys ........................ 9 OSD Menus........................10 Professional ...................... -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Monitor PRO MP273U Documentation Quick Start Guide Stand Stand Base... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align and gently push the stand bracket towards the monitor groove until it locks in place. 2. Align and gently push the base towards the stand until it locks in place. 3. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. ∙ -5° 20°... -
Page 6: Monitor Overview
Monitor Overview... - Page 7 OSD Keys Power Button & Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. DisplayPort Supports 3840x2160@60Hz as specified in DisplayPort 1.4a. HDMI™...
-
Page 8: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. -
Page 9: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. OSD Keys The monitor comes with a set of OSD Keys that help to control the On-Screen Display (OSD) menu. -
Page 10: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: ∙ Low Blue Light ∙ Contrast ∙ HDCR ∙ Color Temperature ∙ Brightness Professional 1st Level Menu 2nd/3rd Level Menu Description Mode ∙ Use Left or Right Button to select and preview mode effects. - Page 11 1st Level Menu 2nd/3rd Level Menu Description Refresh Rate Location Left Top ∙ Location is adjustable in OSD Menu. Press the E Button to confirm and apply your Refresh Rate Right Top Location. ∙ This monitor follows and works at the Operating Left Bottom System’s preset Screen Refresh Rate.
-
Page 12: Image
1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status »... -
Page 13: Input Source
1st Level Menu 2nd/3rd Level Menu Description Color Temperature Cool ∙ Use Left or Right Button to select and preview mode effects. Normal ∙ Press the E Button to confirm and apply your mode type. Warm ∙ Users can adjust Color Temperature in Customization R (0-100) Customization mode. -
Page 14: Pip/Pbp
PIP/PBP 1st Level Menu 2nd/3rd Level Menu Description ∙ PIP (Picture in Picture) allows users to simultaneously display multiple video sources Source HDMI™1 on one screen. One program is displayed on the full screen at the same time as one or more HDMI™2 other programs are displayed in inset windows. -
Page 15: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description Enter ∙ All Navi Key items can be adjusted via OSD Menus. Left Brightness Right Mode Alarm Clock Input Source Refresh Rate Info. On Screen Audio Volume Settings 1st Level Menu 2nd Level Menu Description Language... - Page 16 1st Level Menu 2nd Level Menu Description HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ∙ If HDMI™ CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 17: Specifications
Specifications Monitor PRO MP273U Size 27 inch Curvature Flat Panel Type Resolution 3840x2160 (UHD) Aspect Ratio 16:9 Brightness Typical SDR 300 nits Contrast Ratio 1000:1 Refresh Rate 60Hz Response Time 4ms (GtG) ∙ DisplayPort x1 ∙ HDMI™ Connector x2 ∙ Headphone Jack x1 View Angles 178°(H) , 178°(V) - Page 18 Monitor PRO MP273U Weight 3.9 Kg Gross 6.2 Kg Environment Operating ∙ Temperature: 0℃ to 40℃ ∙ Humidity: 20% to 90%, non-condensing ∙ Altitude: 0 ~ 5000m Storage ∙ Temperature: -20℃ to 60℃ ∙ Humidity: 10% to 90%, non-condensing * Based on CIE1976 test standards.
-
Page 19: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. Standard Mode Standard Resolution HDMI™ 1920x1080 @60Hz 2560x1440 @60Hz 3840x2160 @60Hz Video Timing 720P Resolution 1080P 2160P @50Hz 2160P @60Hz HDMI™ VRR PIP Mode (Not Support HDR) Standard Resolution HDMI™... -
Page 20: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 21: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 22 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 23: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 24: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... -
Page 25: Weee Statement
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products. -
Page 26: Environmental Policy
Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
