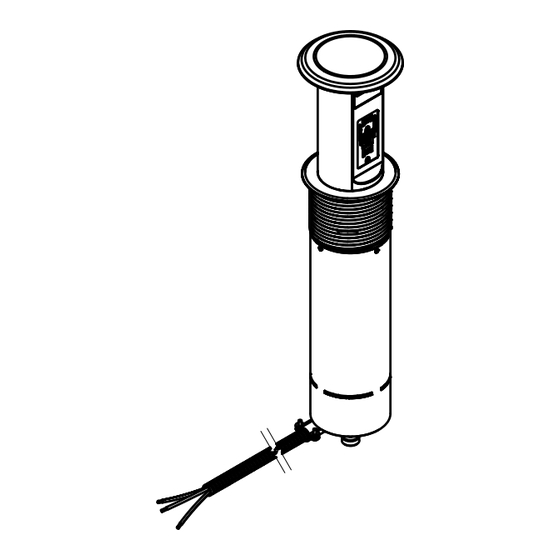

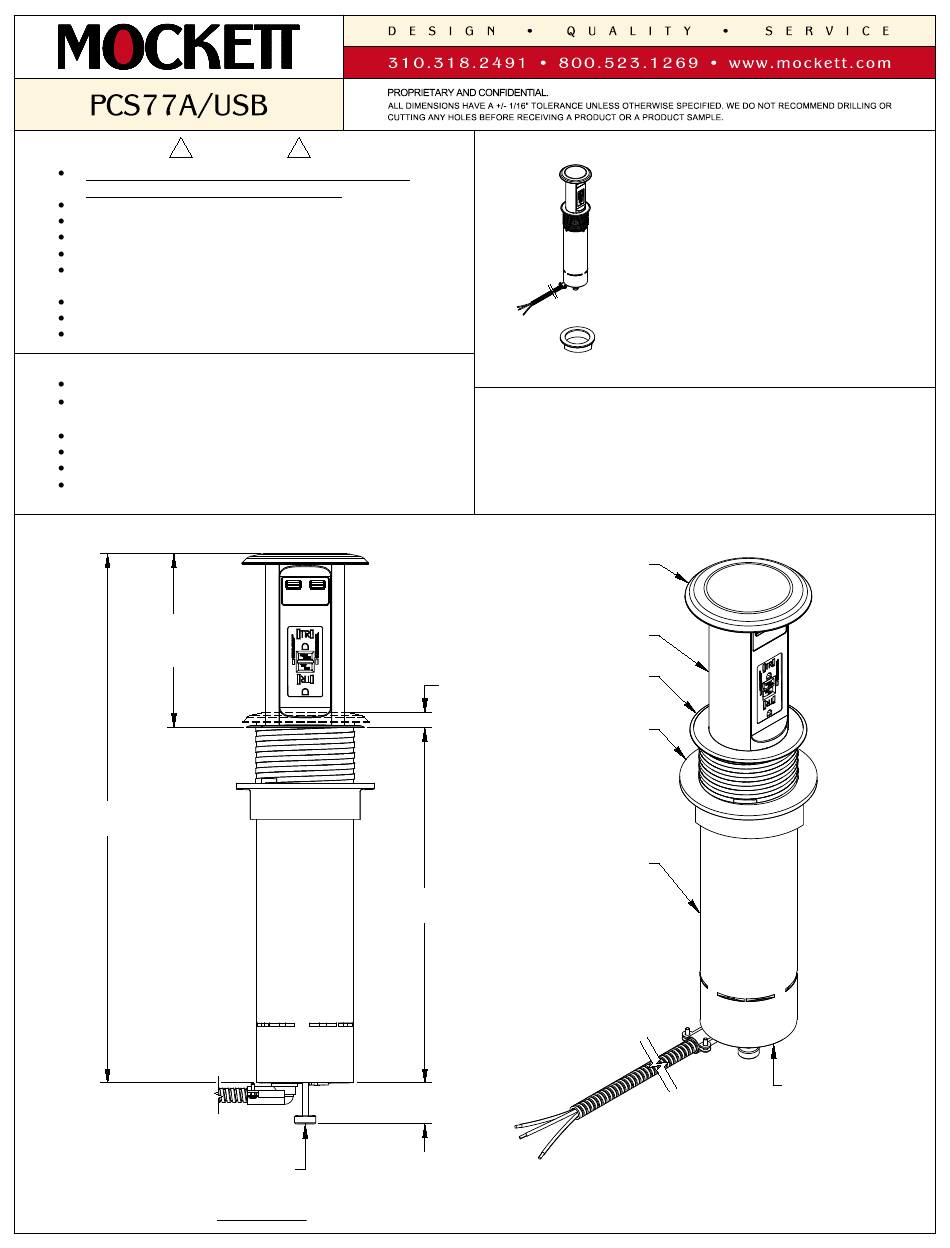

Mockett PCS77A/USB Manual

!
For installation by a qualified person in accordance with
National Electric Code and local regulations.
Risk of electric shock. Disconnect power before installation.
For indoor use only.
For use on normally dry work surfaces only.
For counter top mounting.
If any malfunction occurs, do not attempt to disassemble or
repair.
Allow enough clearance for part operation and function.
Avoid liquid spills into outlet.
Do not insert foreign objects into power outlets.
SPECIFICATIONS
6 ft. conduit cord.
Recommended table thickness is 13.00mm [1/2"] MIN. to
51.00mm [2"] MAX.
USB-A ports are for charging use only.
Unit is rated at 20A capacity.
Wire gauge is 12AWG.
Minimum clearance required 547.00mm [18"] under the
work surface.
165.00mm
[6-1/2"]
(OPEN)
527.00mm
[20-3/4"]
Adjustment knob
2024.08.16
WARNING
!
362.00mm
[14-1/4"]
[1-17/32"]
FRONT VIEW
1. Ensure circuit breaker to unit is shut off prior to cleaning.
2. Clean the unit with a damp cloth and dry immediately.
3. Do not use harsh chemical solvents.
120.50mm DIA.
75.50mm DIA.
14.00mm 110.00mm DIA.
[9/16"]
(CLOSED)
130.00mm DIA.
92.00mm DIA.
39.00mm
1
TABLE OF CONTENTS
. . . . . . . . . . 1X PCS77A/USB
. . . . . . . . . . . 1X Locking ring
MAINTENANCE & CARE
[4-3/4"]
[3"]
[4-11/32"]
[5-1/8"]
[3-5/8"]
95.00mm DIA.
[3-3/4"]
(RECOMMENDED
CUTOUT)
