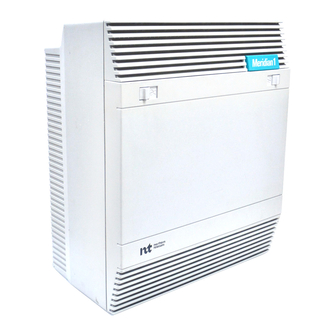

Meridian 1
Option 11C Compact
Network Message Service Feature Guide
Document Number: P0884766
Release: 1.0
Date: June 1998
Year Publish FCC TM
This Nortel documentation is protected by copyright. It may not be copied in any form or medium except
puruant to the Nortel License to Copy Documentation ("License"). If a Licensehas been purchased, it will
be enclosed with this copy of Nortel documents.
© 1998
All rights reserved
Printed in Canada
Information is subject to change without notice. Northern Telecom reserves the right to make changes in design
or components as progress in engineering and manufacturing may warrant. This equipment has been tested
and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules, and the
radio interference regulations of Industry Canada. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at their own expense.
Meridian 1 is a trademark of Nortel (Northern Telecom).
Option 11C Compact
Network Message Service Feature Guide
