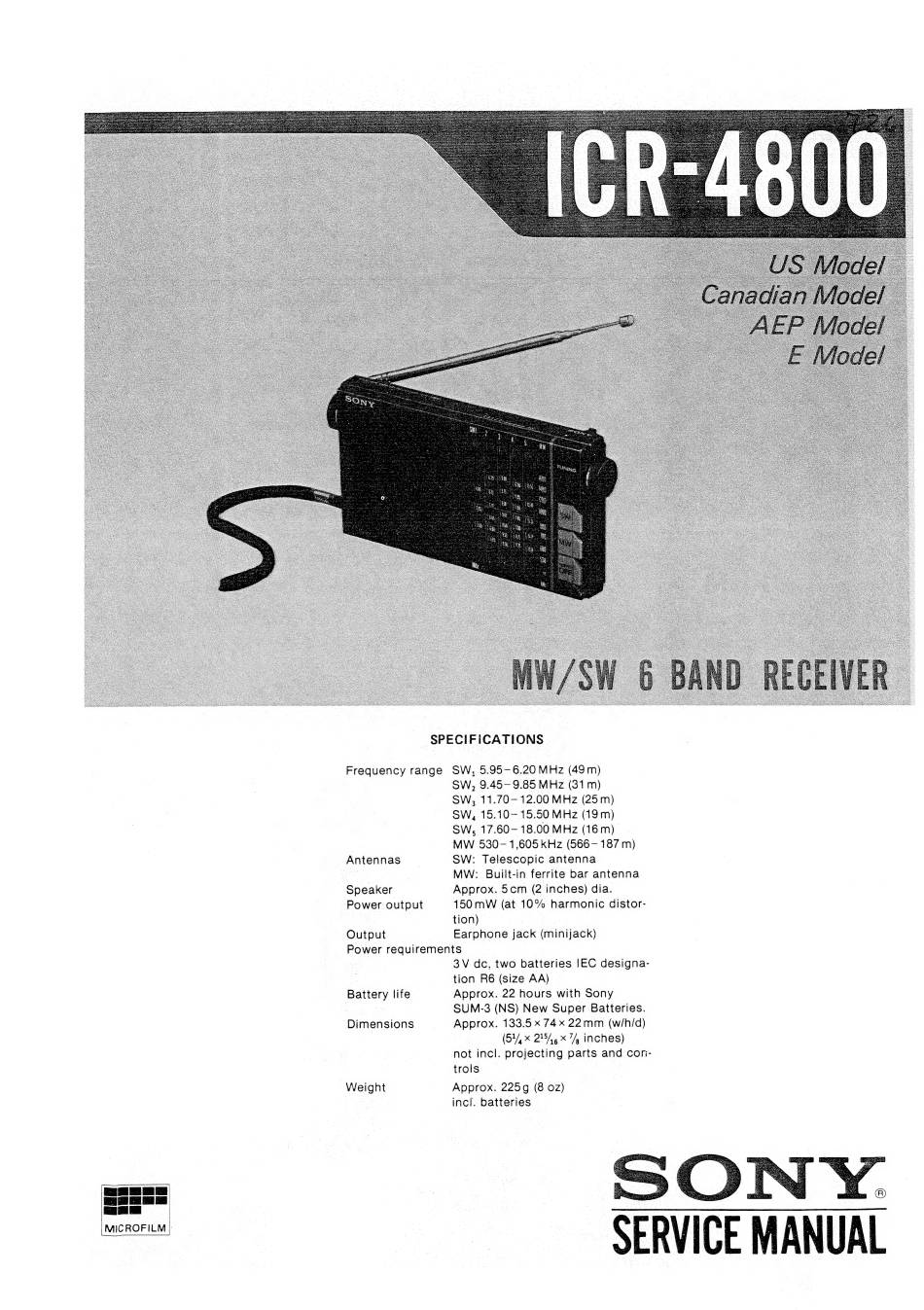

Sony ICR-4800 Service Manual

SPECIFICATIONS
Frequency range SW, 5.95-6.20 MHz (49m
Antennas
Speaker
Power output
Output
SW, 9.45- 9.85 MHz (31m
SW, 11.70-12.00 MHz (25m
SW, 15.10-15.50 MHz (19m
SW, 17.60— 18.00 MHz (16m
MW 530- 1,605 KHz (566- 187m
SW: Telescopic antenna
MW: Built-in ferrite bar antenna
Approx. 5cm (2 inches) dia.
150 mW (at 10% harmonic distor-
tion
Earphone jack (minijack
Power requirements
Battery life
Dimensions
Weight
3V dc, two batteries IEC designa-
tion R6 (size AA
Approx. 22 hours with Sony
SUM-3 (NS) New Super Batteries.
Approx. 133.5 x 74x 22mm (w/h/d
51/,x 24,,.x7/, inches
not incl. projecting parts and cori-
trols
Approx. 225g (8 oz
incl. batteries
