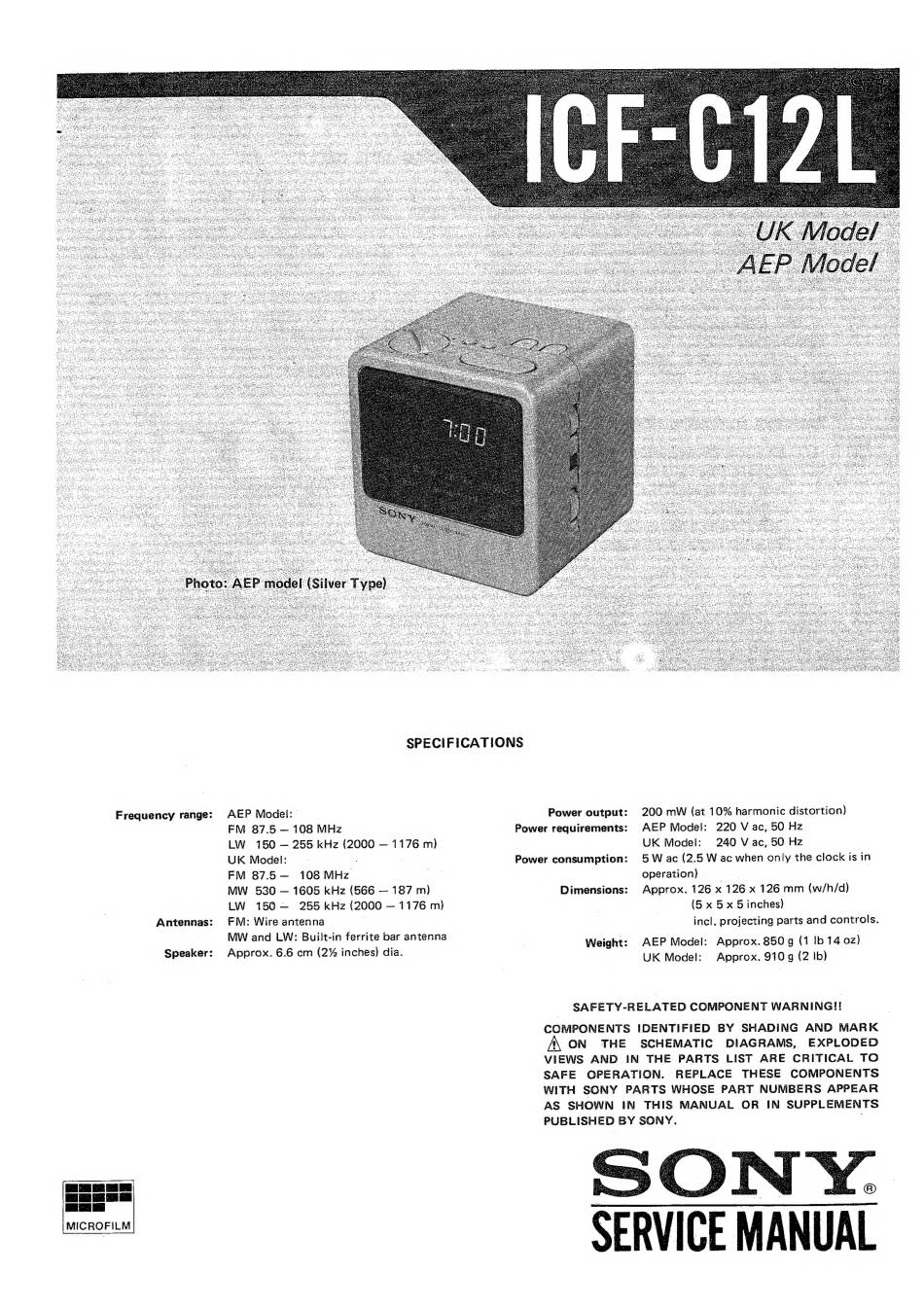

Sony ICF-C12L Service Manual

Frequency range:
MICROFILM
Antennas:
Speaker:
ESE :
soaetete.
S e hese
SPECIFICATIONS
AEP Model:
FM 87.5 — 108 MHz
LW 150 — 255 kHz (2000 — 1176 m)
UK Model: |
FM 87.5— 108 MHz
MW 530 — 1605 kHz (566 — 187 m)
LW 150— 255 kHz (2000 — 1176 m)
FM: Wire antenna
MW and LW: Built-in ferrite bar antenna
Approx. 6.6 cm (2% inches) dia.
Power output:
Power requirements:
Power consumption:
Dimensions:
Weight:
200 mW {at 10% harmonic distortion)
AEP Model: 220 V ac, 50 Hz
UK Model: 240 V ac, 50 Hz
5 W ac (2.5 W ac when only the clock is in
operation) . |
Approx. 126 x 126 x 126 mm (w/h/d)
(5 x 5 x 5 inches)
incl. projecting parts and controls.
AEP Model: Approx. 850g (1 Ib 14 oz)
UK Model: Approx. 910g (2 Ib)
SAFETY-RELATED COMPONENT WARNING!E!
COMPONENTS IDENTIFIED BY SHADING AND MARK
ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
SERVICE MANUAL
