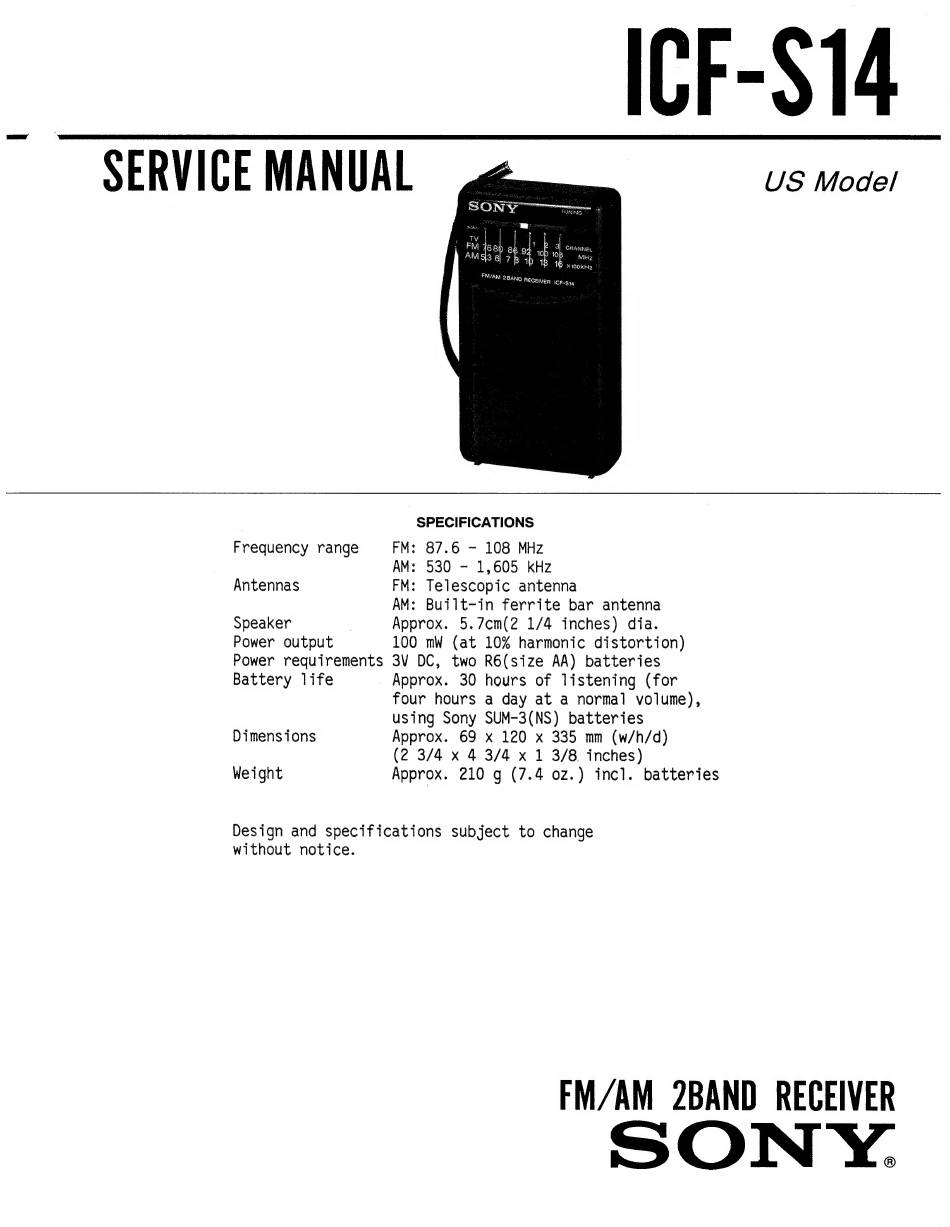

Sony ICF-S14 Service Manual

ICF-S14
US Model
SERVICE MANUAL
HANIEL
Miz
* OK
Fi M/AM
28AND RECEWVER
ICP-S1q4
SPECIFICATIONS
Frequency range FM: 87.6 - 108 MHz
AM: 530 - 1,605 kHz
Antennas FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Speaker | Approx. 5.7cm(2 1/4 inches) dia.
Power output 100 mW (at 10% harmonic distortion)
Power requirements 3V DC, two R6(size AA) batteries
Battery life _ Approx. 30 hours of listening (for
four hours a day at a normal volume),
using Sony SUM-3(NS) batteries
Dimensions Approx. 69 x 120 x 335 mm (w/h/d)
(2 3/4 x 4 3/4 x 1 3/8 inches)
Weight Approx. 210 g (7.4 oz.) incl. batteries
Design and specifications subject to change
without notice.
FM/AM 2BAND RECEIVER
SONY.
