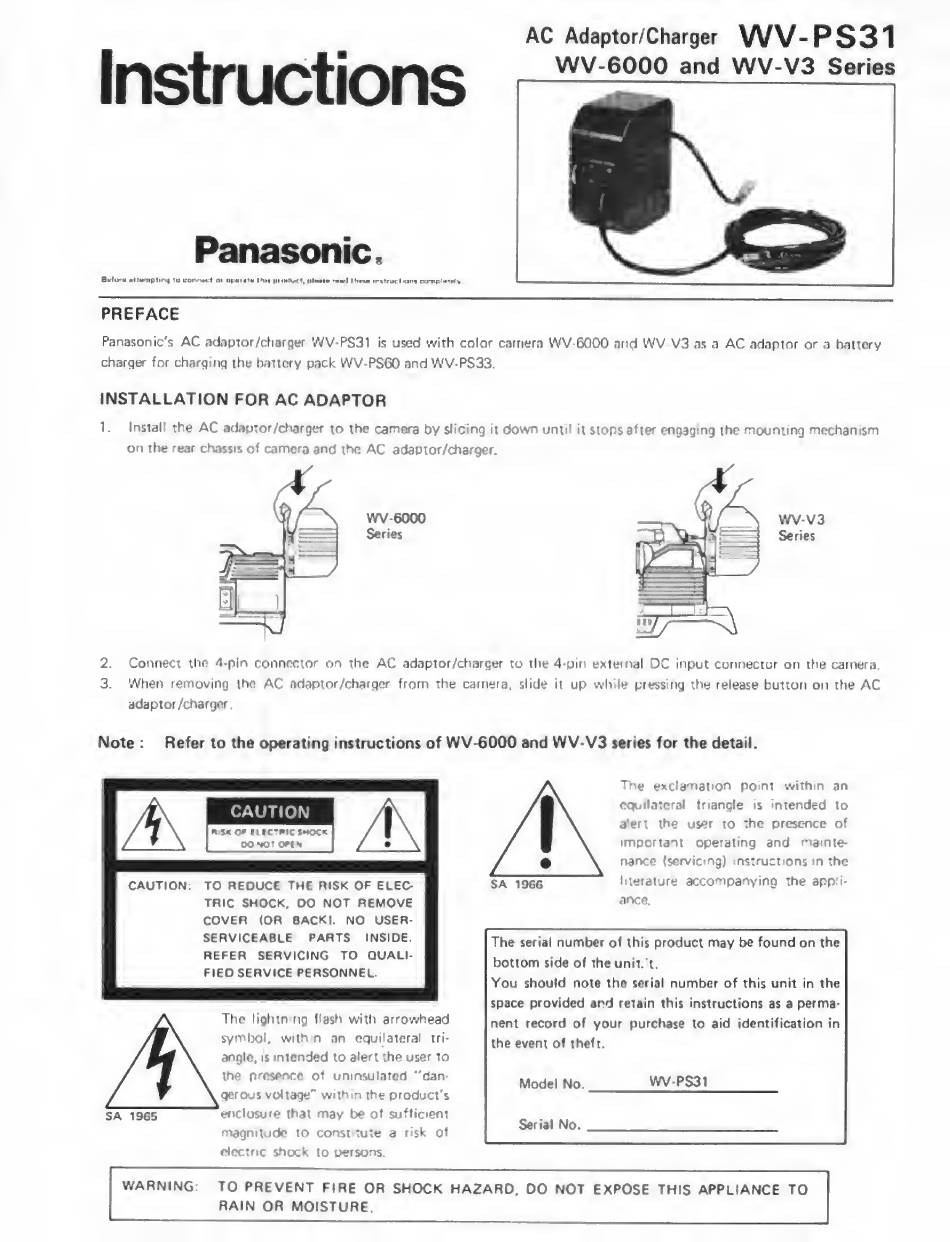

Panasonic WV-V3 Series Instructions

Instructions
AC Adaptor/Charger
WV-PS31
WV-6000 and WV-V3 Series
Panasonic,
Bufu'U dlvnlHint to kmvmc! ui IM« liHNfMt, utMi* 'mmH Ihmmm ir*1rucl «in« iximp'-iw* I—^_
PREFACE
Panasonic's AC adaptor /charter WV PS31 is used with color camera WV 6000 and WV V3 as a AC adaptor or a battery
charger for charging the battory pack WV-PS60 and WV-PS33.
INSTALLATION FOR AC ADAPTOR
1. Install the AC adaptor/charger to the camera by slicing it down until it stops after engaging the mounting mechanism
on the rear chassis of camera and the AC adaptor/charger.
WV-6000
Series
WV V3
Series
2. Connect the 4-pin connector on the AC adaptor/charger to the 4-oin external DC input connector on the camera.
3. When removing the AC adaptor/charqer from the camera, slide it up while pressing the release button on the AC
adaptor/charger.
Note : Refer to the operating instructions of WV-6000 and WV-V3 series for the detail.
CAUTION TO REDUCE THE RISK OF ELEC¬
TRIC SHOCK, DO NOT REMOVE
COVER (OR BACK I. NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALI¬
FIED SERVICE PERSONNEL.
The lightn ng Hash with arrowhead
symbol, with n an equilateral tri¬
angle, is intended to alert the user to
the presence of uninsulated "dan
gerous voltage" within the product's
enclosure that may be of sufficient
magnitude to const tute a risk of
electric shock to persons.
SA 1965
SA 1966
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte¬
nance (servicing) instructions in the
literature accompanying the app i-
The serial number of this product may be found on the
bottom side of the unit. t.
You should note the serial number of this unit in the
space provided and retain this instructions as a perma¬
nent record of your purchase to aid identification in
the event of theft.
1
Model No.
Serial No.
WV PS31
WARNING TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE
