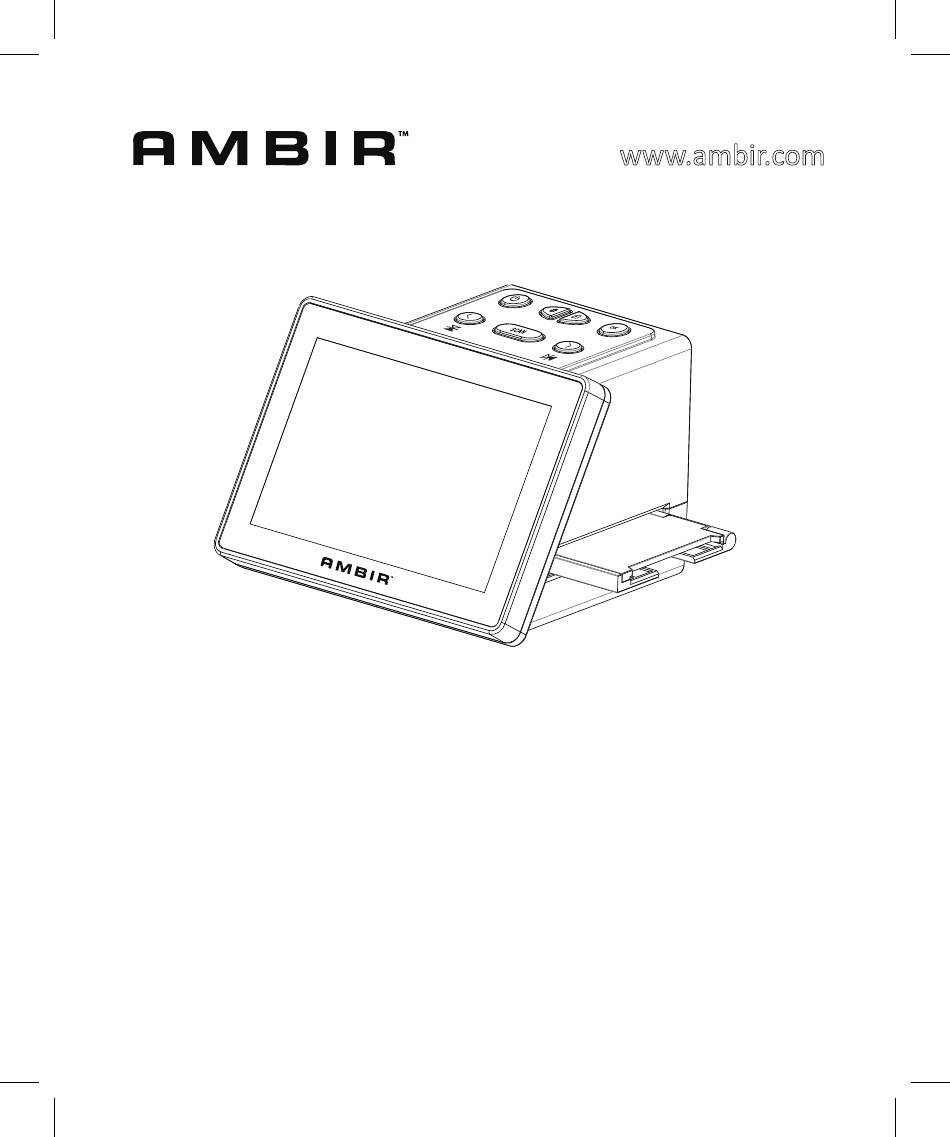

- Page 1 AMBIR Film & Slide Scanner User Manual ©2023 Ambir Technology Inc. All Rights Reserved.
-
Page 2: Table Of Contents
CONTENTS 1.Introduction..............2.Safety precautions............3.Box contents..............4.Production information........... 5.Operation Instructions............. Preparing Films or Slides..........Using an SD Card............. Formatting SD Card/Internal Storage......Powering on Film Scanner..........Changing the Language........... Date and Time Setting............. Selecting Scan Resolution..........Select Film Type............... Cleaning and Care............Scanning Image.............. -
Page 3: Introduction
1.Introduction Thank you for purchasing the Ambir Film and Slide Scanner FS500. This product is designed to help you easily convert your film negatives and slides to digital images that you can share, store and preserve. Save your treasured memories on the onboard memory or on the included SD card. -
Page 4: Safety Precautions
2. Safety precautions • Warning: This product contains small parts and is not suitable for children under 3 years old. • Warning: Do not attempt to disassemble or alter this unit. This device contains no user-serviceable parts. • Important: Do not expose this product to liquids or high humidity. -
Page 5: Box Contents
3. Box contents -Film scanner -Negative holder -Slide holder -110 film insert -110 slide insert -8mm/super8 film insert -USB cable (C type) -HDMI cable (A type) -User manual -Cleaning brush -Mini SD card -Mini SD card adaptor... -
Page 6: Button Functionality
4. Button Functionality 1.Power button 2. Setting button 3. Playback button 4. OK Button 5. Back/Flip Button 6. Capture button 7. Forward/Mirror Button 8. Adapter slot 9. LCD screen 10. USB port 11. SD card slot 12 .HDMI port NOTE: Illustrations are for instructional purposes only, and may be different from the actual product. -
Page 7: Operation Instructions
5.Operation Instructions Preparing Films or Slides IMPORTANT : Ensure your films/slides are clean and free of dirt or debris. 1. Open the appropriate film/slide adapter and insert your film/slide. Each adapter is labeled to identify it. If you are not certain of your slide/film type, refer to the images as following. - Page 8 110 negative film super8/8mm 2. Close the film/slide adapter and press the edge that it locks into place. 3. Ensure the film/slide is facing the correct way and is not bent. You can center the film/slide by manually adjusting it to the left or right.
-
Page 9: Using An Sd Card
Using an SD Card Note: This scanner has built-in memory for saving scanned images.This film scanner will also accept SD, SDHC, and SDXC cards with a maximum of 128GB for extra memory. If you are using a 128GB SD card, it may need to be formatted before using for the first time. -
Page 10: Powering On Film Scanner
Powering on Film Scanner 1. Connect the USB cable to the USB port on the film scanner. 2. Connect the other end of the USB cable into a USB wall adapter (not included) or USB power source (5V/1A). 3. Press and hold the Power button on the scanner to turn it on. Note: The film scanner will automatically shut off... -
Page 11: Date And Time Setting
Date and Time Setting 1. On the Main Menu or press the Setting button to open the Main Menu, use the < and > buttons to select the DATE AND TIME option. 2. Press OK to open the DATE AND TIME menu. 3. -
Page 12: Select Film Type
Select Film Type 1. On the Main Menu or press the Setting button to open the Main Menu, use the < and > buttons to select the FILM TYPE option. 2. Press OK to open the film type menu. 3. Use the > arrow key to cycle through Negatives, Slides, or B&W. Press the OK button to select it. -
Page 13: Cleaning And Care
Cleaning and Care Cleaning and care use the included cleaning brush to ensure there is no dust or debris on the lens. Insert the soft end of the brush, face down, into the film/slide holder slot. Carefully push the brush around inside to get rid of any dust or debris that may be on the LED backlight. - Page 14 3. To adjust Brightness or Color, press the OK button. Use the left/right arrows to move between Brightness (EV), Red (R), Green (G), or Blue (B). Press the OK button to adjust them individually. 4. Once all settings are correct, press the SCAN button to return. 5.
-
Page 15: Viewing Scanned Images
Viewing scanned Images 1. Press the GALLERY button to go to view your saved images. 2. Your images will play automatically in Slideshow mode. 3. To manually review your saved images and stop Slideshow mode, press the OK button. 4. Use the left and right buttons to scroll through each saved image. 5. -
Page 16: Watching Images On Tv Screen
IMPORTANT: The film scanner cannot scan directly to a computer. Scanning must be completed on the film scanner. 1. Ensure your computer is powered on. 2. Connect the film scanner to your computer via the included USB cable. 3. Power on the film scanner. 4. -
Page 17: Specifications
6. SPECIFICATIONS Image sensor 13 Mega CMOS sensor Lens Multi-elements precision lens 5.0” Color TFT LCD Focus range Fixed focus Supported film Color negative film: 135,126,110 types auto Slides:135,126,110, 8mm, super 8 converting Black & white negative film: 135,126,110 Exposure control Automatic, with 7 levels of manu Adjustment Color balance Automatic, with 7 levels of manu Adjustment... - Page 18 ©2023 Ambir Technology Inc. All Rights Reserved.
