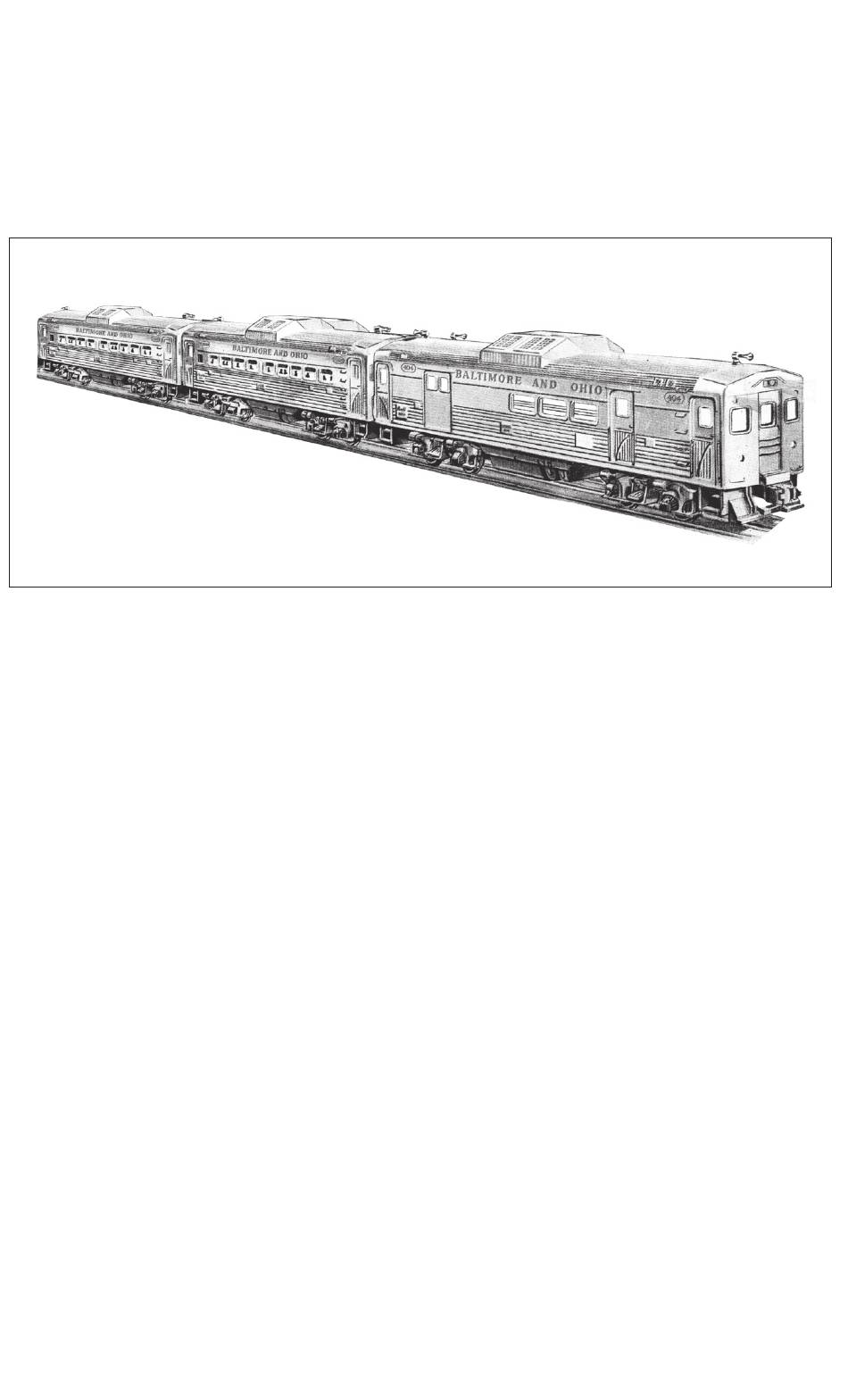

LIONEL NO. 2276W BUDD RDC 3-CAR

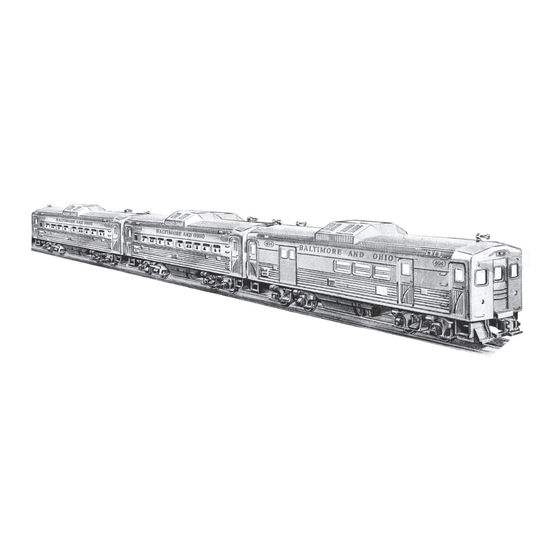

Lionel No. 2276W Budd Commuter Set is a realistic replica of Rail Diesel Cars (RDC) made
by the Budd Company for B&O commuter service.
Lionel's set of Budd RDC commuter cars is built to run on either "O" or "O27" track. The
lead car is powered by a single worm-drive motor driving two magne-traction axles. All the
cars in the set are illuminated, and all the cars carry exciting colors and markings of the B&O
and real Budd Company insignia.
LIONEL "MAGNE-TRACTION"
The powered locomotive is equipped with "Magne-Traction" which means that its driving
wheels are magnetized by powerful Alnico magnets inserted in the driving axles in order
to grip the track and enable the locomotive to pull heavier loads and climb steeper grades
without slipping on the track. Be careful not to let pins, paperclips, carpet tacks or other
small iron objects come in contact with the locomotive or they will be attracted to the wheels,
gears, or axles and interfere with the action of the locomotive. NOTE: "Magne-Traction" is
not effective on aluminum, brass or other non-magnetic rails. The powered locomotive also
includes two traction tires, which will improve traction on both magnetic and non-magnetic
rails.
73-8311-250
Instructions for Operating
COMMUTER SET
7/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2276W and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel 2276W

Summary of Contents for Lionel 2276W

  • Page 1 Budd Company for B&O commuter service. Lionel’s set of Budd RDC commuter cars is built to run on either “O” or “O27” track. The lead car is powered by a single worm-drive motor driving two magne-traction axles. All the cars in the set are illuminated, and all the cars carry exciting colors and markings of the B&O...
  • Page 2 • Minimum Curve: 0-31 Non-Powered Passenger Car • Dual operating couplers • Lighted interior • Passenger silhouettes in windows The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster , Odyssey...

  • Page 3: Transformer Operations

    RuNNING yOuR LOCOMOTIVE WITh A LIONEL TRANSFORMER Do not power your locomotive with direct current (DC). Caution! Damage to sensitive electronic components may occur. PLACE yOuR TRAIN SET ON LIONEL OR LIONEL-COMPATIbLE O GAuGE TRACK. ThROTTLE uP yOuR LOCOMOTIVE WITh yOuR TRANSFORMER.

  • Page 4: Locking Your Powered Locomotive Into Forward Direction Only Operation

    Transformer operations LOCKING yOuR POWEREd LOCOMOTIVE INTO FORWARd dIRECTION ONLy OPERATION When the Electronic E-unit Direction Lock switch is in the RUN position, your powered locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To lock your powered locomotive into forward direction only operation, you can deactivate the Electronic E-unit’s sequencing function.

  • Page 5: Using Your Locomotive's Magnetic Couplers

    Your Lionel locomotives are equipped with operating magnetic knuckle couplers, a revolutionary design first introduced by Lionel in 1945. Lionel magnetic couplers react to the magnetic field generated by a Lionel Remote-Control Track section (available separately, 6-65149 or 6-12746 for O-27 gauge; 6-65530 for O gauge;...
  • Page 6 Use the HORN and BELL buttons on your transformer to activate the locomotives horn and bell sounds. If your transformer lacks HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s horn and bell sounds.

  • Page 7: Lubricating Your Locomotives

    Figure 3 on page 8 before running them for the first time. Put a small dab of Lionel Lubricant at all points marked “L”. Using the point of a pin or a thin wire, put a drop of Lionel Oil at points marked “O”.

  • Page 8: Lubricating Your Locomotive

    Operating and servicing your set LubRICATING yOuR LOCOMOTIVE Help your Lionel locomotives lead a long and productive life on your railroad by maintaining them properly. To keep your locomotives lubricated, we recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer or service station.
  • Page 9 1. Remove the locomotive’s body screws. See Figure 3 on page 8 for the screw locations. Carefully lift the shell away from the frame. 2. Apply a small amount of Lionel oil (two drops) in the hole at the top of the motor. See Figure 4.

  • Page 10: Replacing Your Locomotive's Lamps

    2. To remove the lamp, gentley push the lamp down and turn counter counter clockwise to disengage the lamp from the socket 3. Replace it with Lionel part no. 600-0363-300, available from your authorized Lionel dealer or service station, or from Lionel Customer Service in Chesterfield, MI. See Instructions for Obtaining Service on page 12 for more information.

  • Page 11: Replacing The Traction Tires

    Replacement traction tires are included with the locomotive. We recommend that you have the traction tires (610-6001-065) replaced by an authorized Lionel dealer or service station because the truck and side frames must be removed to access the wheels. See Instructions...

  • Page 12: Lionel Limited Warranty Policy & Service

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
