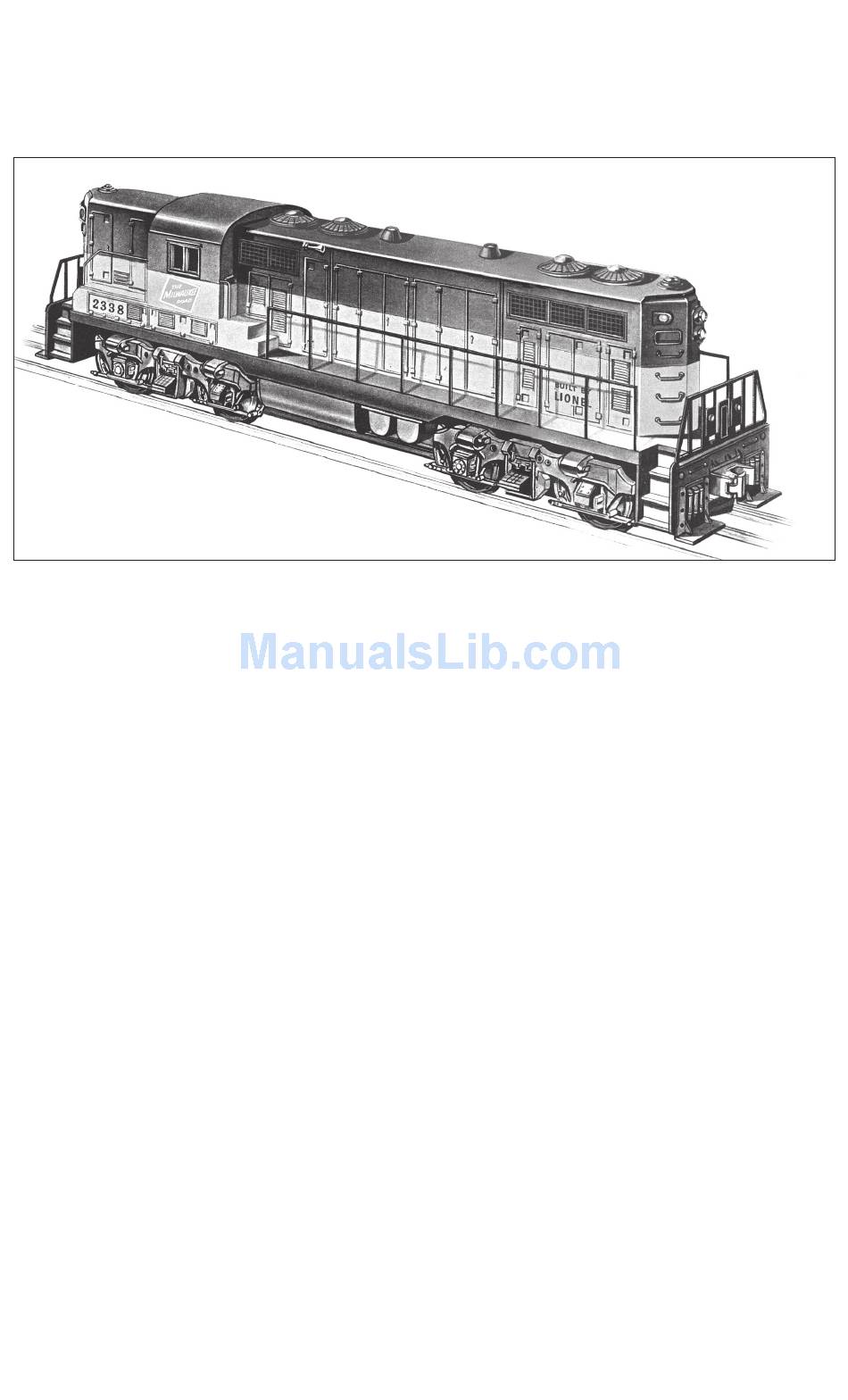

LIONEL NO. 2338 DIESEL LOCOMOTIVE

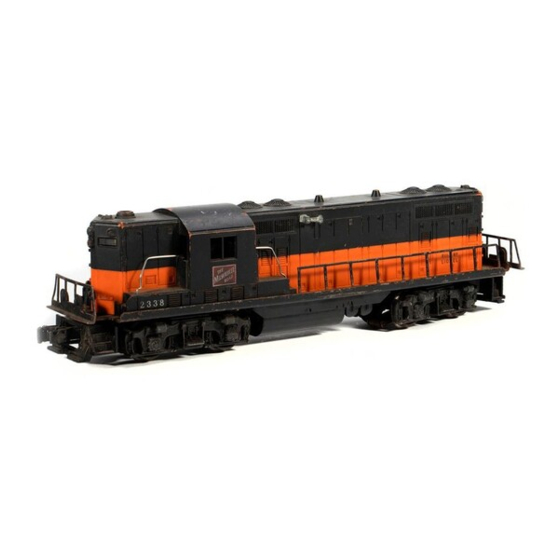

Lionel No. 2338 GP-7 Locomotive is a replica of the GP-7 locomotive used by Milwaukee
Road for passenger service.
Lionel's GP-7 Locomotive is built to run on either "O" or O27" track. The GP-7 is powered
by a single worm-drive motor driving two magne-traction axles which enable it to pull a
long string of passenger cars. The operating voltage of this locomotive is from 8 to 18 volts
depending on the train load.
LIONEL "MAGNE-TRACTION"
This locomotive is equipped with "Magne-Traction" which means that its driving wheels are
magnetized by powerful Alnico magnets inserted in the driving axles in order to grip the track
and enable the locomotive to pull heavier loads and climb steeper grades without slipping
on the track. Be careful not to let pins, paperclips, carpet tacks or other small iron objects
come in contact with the locomotive or they will be attracted to the wheels, gears, or axles
and interfere with the action of the locomotive. NOTE: "Magne-Traction" is not effective on
aluminum, brass or other non-magnetic rails. The locomotive also includes two traction tires,
which will improve traction on both magnetic and non-magnetic rails.
73-8305-250
Instructions for Operating
7/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2338 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel 2338

Summary of Contents for Lionel 2338

  • Page 1 Lionel No. 2338 GP-7 Locomotive is a replica of the GP-7 locomotive used by Milwaukee Road for passenger service. Lionel’s GP-7 Locomotive is built to run on either “O” or O27” track. The GP-7 is powered by a single worm-drive motor driving two magne-traction axles which enable it to pull a long string of passenger cars.
  • Page 2 • Traction tires • Lighted number boards and marker lights • Lighted cab interior • Minimum Curve: 0-31 The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster...

  • Page 3: Transformer Operations

    RUNNING yOUR LOCOMOTIVE wITh A LIONEL TRANSFORMER Do not power your locomotive with direct current (DC). Caution! Damage to sensitive electronic components may occur. PLACE yOUR TRAIN SET ON LIONEL OR LIONEL-COMPATIBLE O GAUGE TRACK. ThROTTLE UP yOUR LOCOMOTIVE wITh yOUR TRANSFORMER.

  • Page 4: Locking Your Locomotive Into Forward Direction Only Operation

    Transformer operations LOCKING yOUR LOCOMOTIVE INTO FORwARD DIRECTION ONLy OPERATION When the Electronic E-unit Direction Lock switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so To lock your locomotive into forward direction only operation, you can deactivate the Electronic E-unit’s sequencing function.

  • Page 5: Using Your Locomotive's Magnetic Couplers

    Your Lionel locomotive is equipped with operating magnetic knuckle couplers, a revolutionary design first introduced by Lionel in 1945. Lionel magnetic couplers react to the magnetic field generated by a Lionel Remote-Control Track section (available separately, 6-65149 or 6-12746 for O-27 gauge; 6-65530 for O gauge;...
  • Page 6 Use the HORN and BELL buttons on your transformer to activate the locomotives horn and bell sounds. If your transformer lacks HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s horn and bell sounds.

  • Page 7: Operating And Servicing Your Locomotive

    Figure 4 on page 8 before running it for the first time. Put a small dab of Lionel Lubricant at all points marked “L”. Using the point of a pin or a thin wire, put a drop of Lionel Oil at points marked “O”.

  • Page 8: Lubricating Your Locomotive

    Operating and servicing your locomotive LUBRICATING yOUR LOCOMOTIVE Help your Lionel locomotive lead a long and productive life on your railroad by maintaining it properly. To keep your locomotive lubricated, we recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer or service station.
  • Page 9 1. Remove the locomotive’s body mounting screws from both ends of the body. Carefully lift the shell away from the frame. 2. Apply a small amount of Lionel oil (two drops) in the hole at the top of each motor. See Figure 4.

  • Page 10: Replacing Your Locomotive's Lamps

    2. To remove the lamp, gentley push the lamp down and turn counter counter clockwise to disengage the lamp from the socket 3. Replace it with Lionel part no. 600-0363-300, available from your authorized Lionel dealer or service station, or from Lionel Customer Service in Chesterfield, MI. See Instructions for Obtaining Service on page 12 for more information.

  • Page 11: Replacing The Traction Tires

    Replacement traction tires are included with the locomotive. We recommend that you have the traction tires (610-6001-065) replaced by an authorized Lionel dealer or service station because the truck and side frames must be removed to access the wheels. See Instructions...

  • Page 12: Warranty Information

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
