Denkovi smartDEN IP-Maxi Series User Manual page 8

®
smartDEN IP-Maxi-XX User Manual
30 Oct 2023
3.2. Monitoring and logging applications
smartDEN IP-Maxi-XX can be used to build monitoring and logging systems. Up
to 8 various kinds of sensors for temperature, humidity, distance, light etc. can be
connected to the Analog Inputs of the device (Fig. 3.2 and Fig. 3.3). Provided SNMP,
MQTT or Modbus TCP (depending on the model) along with the HTTP/XML/JSON
APIs allow for easy integration with third-party applications.

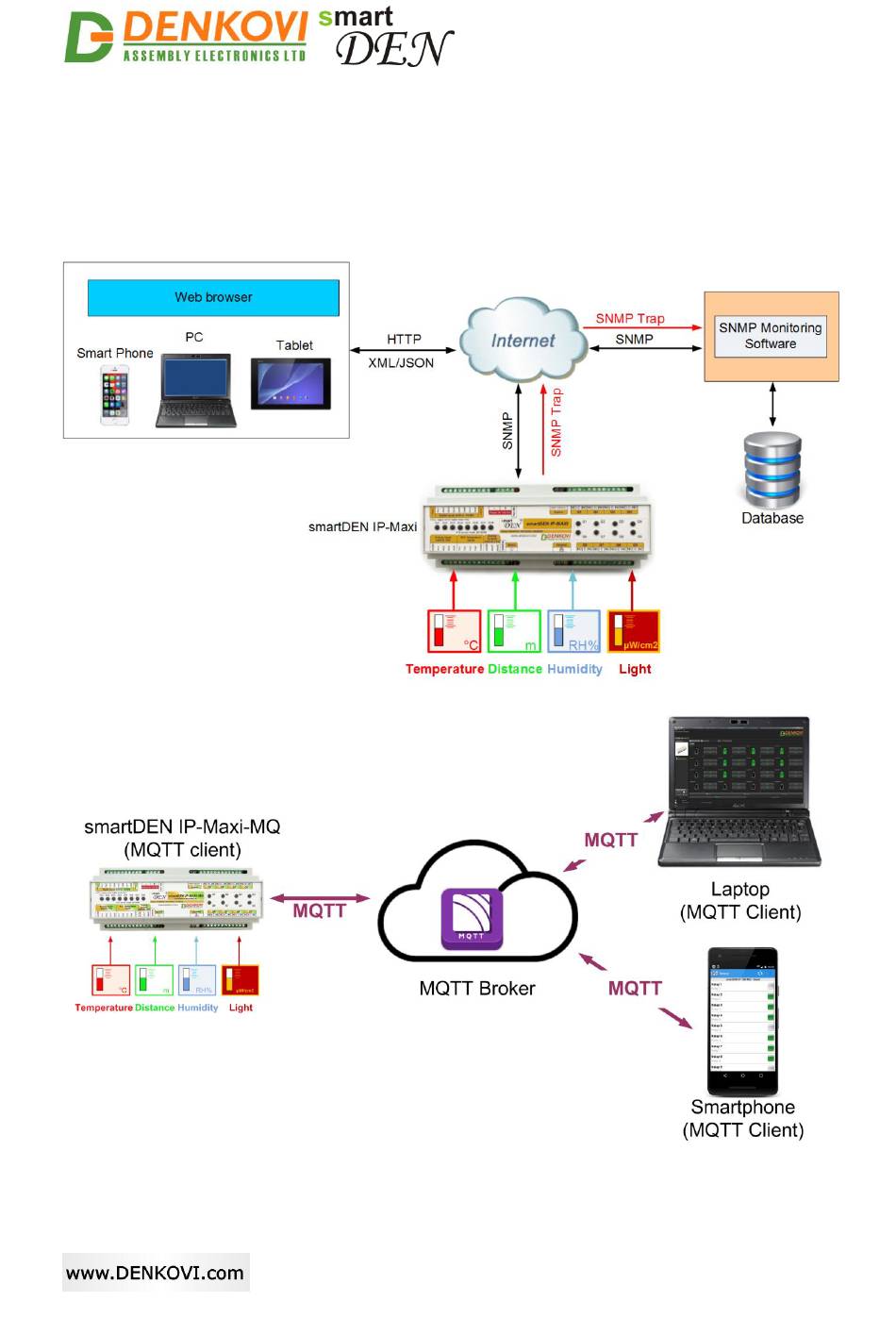

Figure 3.2. Remote sensors monitoring
Figure 3.3. Remote sensors monitoring (MQTT)
- 8 -
