Operating Instructions & Parts Manual

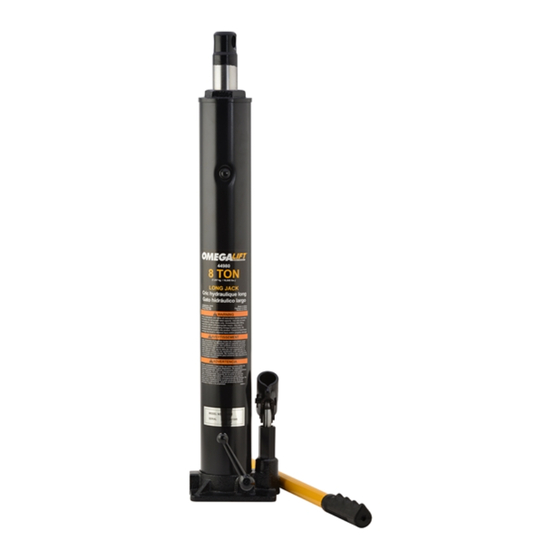

Hydraulic Long Jacks
Model
44943A
44980A
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Model 44943A
ASME PASE-2014
WARNING
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic jack.
ALWAYS use a pair of adequately rated
jack stands.
Capacity
4,000 Kg
8,000 Kg
Model 44980A
Advertisement
Table of Contents
Related Manuals for Omega Lift Equipment Magiclift 44943A
Summary of Contents for Omega Lift Equipment Magiclift 44943A
- Page 1 Operating Instructions & Parts Manual Hydraulic Long Jacks Model Capacity 44943A 4,000 Kg 44980A 8,000 Kg Model 44943A Model 44980A ASME PASE-2014 This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING To avoid crushing and related injuries: NEVER work on, under or around a...
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use and repair of this product may require special skills and knowledge. - Page 3 Ram Plunger Oil Filler Plug Handle Sleeve Handle Release Valve Lever Figure 1 - Typical Hydraulic Long Jack Nomenclature (44980A shown) PREPARATION Before Use 1. Verify that the product and application are compatible, if in doubt call the Shinn Fu Australia Pty Ltd Compliance Officer (03) 9755 8277 or Email: sales@sfaa.com.au 2.
-
Page 4: Operation
OPERATION Extending the Ram Plunger WARNING: Use in conjunction with applicable engine cranes only. 2. To raise: Insert handle into handle sleeve and pump. 3. Continue pumping until load reaches desired height. Retracting the Ram Plunger WARNING: Clear all tools and personnel before lowering load. Open release valve slowly. The further handle is turned counter-clockwise, the faster the load will descend. -
Page 5: Troubleshooting
Lubrication A periodic coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that pump assemblies move freely. Cleaning Periodically check the pump piston and ram plunger for signs of rust or corrosion. Clean as needed and wipe with an oily cloth. -
Page 6: Replacement Parts
REPLACEMENT PARTS Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give model number, serial number and description. Call or write for current pricing: Shinn Fu Australia Pty Ltd Compliance Officer on (03) 9755 8277 or email: sales@sfaa.com.au Models 44943A &... - Page 7 Handle Item Parts Number Description Handle 44943A-HANDLE/ 44980A-HANDLE Handle Grip Repair Kit Item Parts Number Description O-ring O-ring Filler plug Gasket Back-up ring U-Cup Back-up ring Seal Seal 44943A-KIT/ Seal 44980A-KIT Seal Steel ball Ferrule assy O-ring O-ring O-ring Back-up ring O-ring Back-up ring...
-
Page 8: Warranty
WARRANTY 1. This product is covered by an express warranty for 12 months from the date of purchase by the original purchaser. Subject to the conditions of this warranty Shinn Fu Australia Pty Ltd or its authorised repair agents will replace the product or perform necessary service on the product without charge for parts or labour if the product is found to be faulty within the warranty period.
