Kenwood Chef A.700 Service Manual

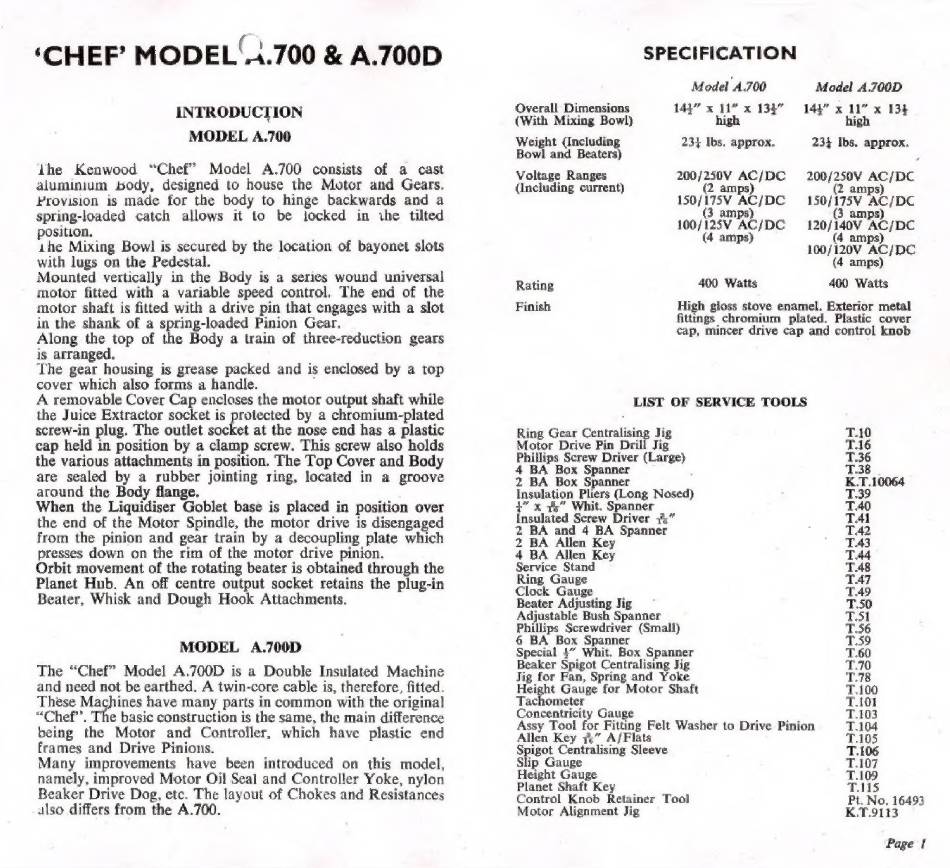

'CHEF' MODEL .:.700 & A.700D
INTRODUCTION
MODEL A.700

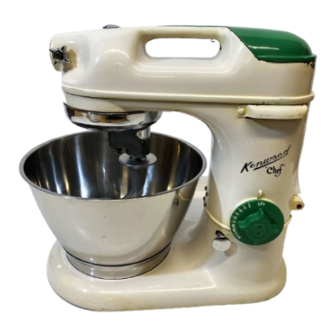

lhe Kenwood "Chef" Model A.700 consists of a cast
aluminium body, designed to house the Motor and Gears.
Provision is made for the body to hinge backwards and a
spring-loaded catch allows it to be locked in ihe tilted
position.
ihe Mixing Bowl is secured by the location of bayonet slots
with lugs on the Pedestal.
Mounted vertically in the Body is a series wound universal
motor fitted with a variable speed control. The end of the
motor shaft is fitted with a drive pin that engages with a slot
in the shank of a spring-loaded Pinion Gear.
Along the top of the Body a train of three-reduction gears
is arranged.
The gear housing is grease packed and is enclosed by a top
cover which also forms a handle.
A removable Cover Cap encloses the motor output shaft while
the Juice Extractor socket is peed by a chromium-plated
screw-in plug. The outlet socket at the nose end has a plastic
cap held in position by a clamp screw. This screw also holds
the various attachments in position. The Top Cover and Body
are sealed by a rubber jointing ring, located in a groove
around the Body flange.
When the Liquidiser Goblet base is placed in position over
the end of the Motor Spindle, the motor drive is disengaged
from the pinion and gear train by a decoupling plate which
presses down on the rim of the motor drive pinion.
Orbit movement of the rotating beater is obtained through the
Planet Hub. An off centre output socket retains the plug-in
Beater, Whisk and Dough Hook Attachments.
MODEL A.700D
The "Chef" Model A.700D is a Double Insulated Machine
and need not be earthed. A twin-core cable is, therefore, fitted.
These Machines have many parts in common with the original
"Chef". The basic construction is the same, the main difference
being the Motor and Controller, which have plastic end
frames and Drive Pinions.
Many improvements have been introduced on this model,
namely, improved Motor Oil Seal and Controller Yoke, nylon
Beaker Drive Dog, etc. The layout of Chokes and Resistances
also differs from the A.700.
SPECIFICATION
Model A.700 Model A.700D
Overall Dimensions 144" x 11" x 134" = 144" x 11" x 134
high high (With Mixing Bowl)
Weight (Including
Bowl and Beaters)
Voltage Ranges 200/250V AC/DC = 200/250V AC/DC
(Including current) (2 amps) (2 amps)
150/175V AC/DC 150/175V AC/DC
(3 amps) (3 amps)
100/125V AC/DC 120/140V AC/DC
234 Ibs. approx. 234 Ibs. approx.
(4 amps) (4 amps)
100/120V AC/DC
(4 amps)
Rating 400 Watts 400 Watts
Finish High gloss stove enamel. Exterior metal
fittings chromium plated. Plastic cover
cap, mincer drive cap and control knob
LIST OF SERVICE TOOLS
Ring Gear Centralising Jig T.10
Motor Drive Pin Drill Jig T.16
Phillips Screw Driver (Large) T.36
4 BA Box Spanner T.38
2 BA Box Spanner K.T.10064
Insulation Pliers (Long Nosed) 7.39
¥" x x" Whit. Spanner T.40
Insulated Screw Driver y's" TAl
2 BA and 4 BA Spanner T.42
2 BA Allen Key T43
4 BA Allen Key 1.44
Service Stand T.48
Ring Gauge T47
Clock Gauge T.49
Beater Adjusting Jig T.50
Adjustable Bush Spanner T.S1
Phillips Screwdriver (Small) T.56
6 BA Box Spanner T.59
Special 4" Whit. Box Spanner T.60
Beaker Spigot Centralising Jig T.70
Jig for Fan, Spring and Yoke T.78
Height Gauge for Motor Shaft T.100
Tachometer T.101
Concentricity Gauge T.103
Assy Tool for Fitting Felt Washer to Drive Pinion T.104
Allen Key ¥" A/Flats T.105
Spigot Centralising Sleeve T.106
Slip Gauge T.107
Height Gauge T.109
Planet Shaft Key TANS
Control Knob Retainer Tool Pt. No. 16493
Motor Alignment Jig K.T.91t3
Page 1
