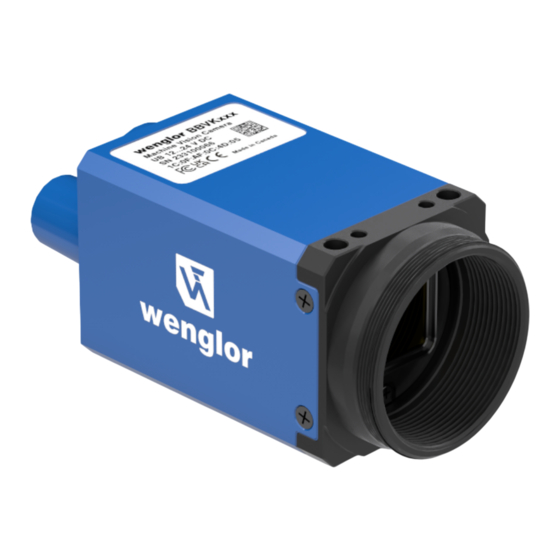

Machine vision camera

Advertisement

Quick Links

EN
BBVKxxx
Machine Vision Camera
Operating Instructions
Original operating instructions
Subject to change without notice
Available as PDF file only
Revision level: 07.10.2024
Version 1.0.0
www.wenglor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBVK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wenglor BBVK Series

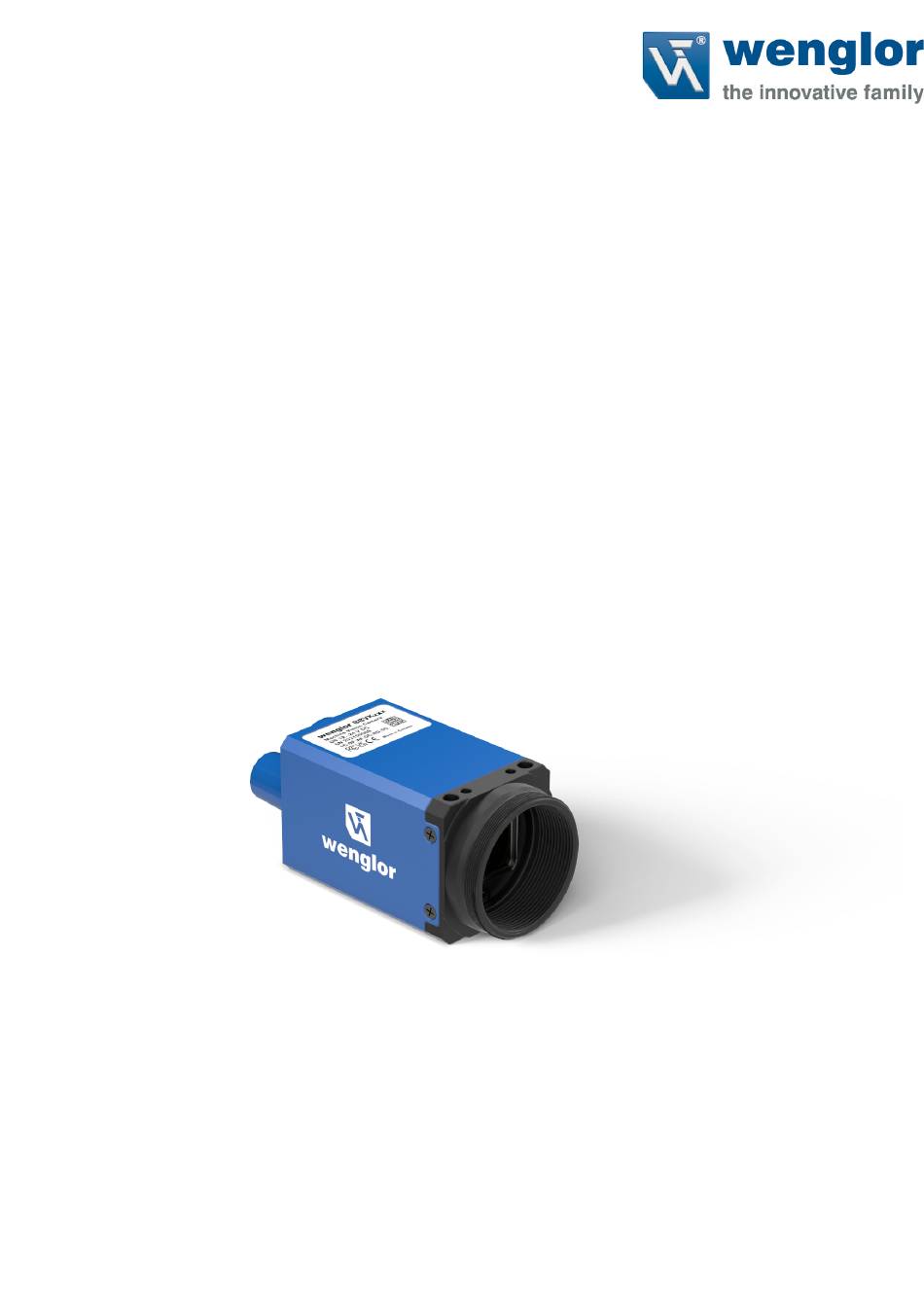

  • Page 1 BBVKxxx Machine Vision Camera Operating Instructions Original operating instructions Subject to change without notice Available as PDF file only Revision level: 07.10.2024 Version 1.0.0 www.wenglor.com...
  • Page 2: Table Of Contents

    Table of Contents General ................................4 Information Concerning these Instructions .....................4 Explanations of Symbols ........................4 Limitation of Liability ..........................5 Copyrights ..............................5 For Your Safety ............................5 Use for Intended Purpose ........................5 Use for Other than the Intended Purpose ....................6 Personnel Qualifications .........................6 Modification of Products .........................6 Repair ..............................6 General Safety Precautions........................7...
  • Page 3 5.2.3 GPIO Cable ..........................21 Electrical Connection ..........................22 Connection to External Illumination and Trigger Sensor ..............22 Interface Protocol .............................23 Software ..............................23 wenglor Discovery Tool ........................23 Software uniVision ..........................23 Maintenance Instructions ........................23 Proper Disposal ............................23 10. Change Index of Operating Instruction ....................24 11.
  • Page 4: General

    • Local accident prevention regulations and national work safety regulations must be complied with as well. • The product is subject to further technical development, and thus the information contained in these oper- ating instructions may also be subject to change. The current version can be found at www.wenglor.com the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference.
  • Page 5: Limitation Of Liability

    • wenglor assumes no liability with regard to printing errors or other inaccuracies contained in this operating manual, unless it can be proven that wenglor was aware of the errors at the time the operating manual was created.
  • Page 6: Use For Other Than The Intended Purpose

    • The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor.com...
  • Page 7: General Safety Precautions

    • In the event of possible changes, the respectively current version of the operating instruc- tions can be accessed at www.wenglor.com in the product’s separate download area. • Read the operating instructions carefully before using the product.
  • Page 8: Technical Data

    3. Technical Data General Data The BBVK is available for monochrome and color images in 4 different Pixel sizes: • BBVK001 and BBVK002: 1,6MP • BBVK003 and BBVK004: 5MP • BBVK005 and BBVK006: 12,3MP • BBVK007 and BBVK008: 24MP The different versions can be found at Machine Vision Cameras 3.1.1 BBVKxxx Order No.
  • Page 9 Interface Ethernet Order No. BBVK005 BBVK006 BBVK007 BBVK008 Technical Data Optical Data Resolution 4096 ⨯ 3000 px 4096 ⨯ 3000 px 5320 ⨯ 4600 px 5320 ⨯ 4600 px Resolution 12,3 MP 12,3 MP 24 MP 24 MP Pixel size 2,74 ⨯ 2,74 µm 3,45 ⨯ 3,45 µm 2,74 ⨯ 2,74 µm 2,74 ⨯ 2,74 µm Sensor type CMOS Sensor designation Sony IMX545 Sony IMX545 Sony IMX540 Sony IMX540 Image chip...
  • Page 10: Lens

    Lens The field of view of C Mount cameras depends on the mounted lens. wenglor offers a range of different lenses with different focal length. The online Vision Caculator helps you to select the right lens. https://www.wenglor.com/en/Vision-Calculator/s/Vision+Calculator The following diagrams show the definition of the working distance A graphically.
  • Page 11: Dimensional Drawing

    C-mount barrel on the Triton should extend past the ring by approximately 0.3 mm to ensure proper alignment and functionality. The lens tubes from wenglor for the BBVK Machine Vision Cameras consists of: 1. An adapter ring with O-ring installed 2.
  • Page 12: Connection Diagram

    Connection Diagram The Machine Vision Camera BBVK has 2 separate connectors. Power over Ethernet (PoE) is supported via the LAN connector. When using the LAN and Power-I/O connectors at the same time, note that power is sup- plied via the Power-I/O connector while PoE is disabled. •...
  • Page 13 Default settings Symbol default 12-24V DC Power Input E/A1 Non-isolated bi-directional GPIO SY(A2) 2.5V Power Output GPIO E/A3 Non-isolated bi-directional GPIO Camera GND Opto-isolated GND SY(A4) Opto-isolated Output W(E5) Opto-isolated Input Legend Supply Voltage + Not connected Encoder B/ (TTL) RS422 –...
  • Page 14: Connection Schematics

    Connection Schematics 3.6.1 Opto-isolated Input W(E5) 3.6.2 Opto-isolated Output SY(A4) 3.6.3 Non-isolated Input E/A1 Technical Data...
  • Page 15: Non-Isolated Output E/A1

    3.6.4 Non-isolated Output E/A1 3.6.5 Non-isolated Input E/A3 Non-isolated Input E/A3 is the same as Non-isolated Input E/A1 (Input is Pin 4, GND is Pin 5). 3.6.6 Non-isolated Output E/A3 Non-isolated Output E/A3 is the same as Non-isolated Output E/A1 (Output is Pin 4, GND is Pin 5). 3.6.7 2.5V Power Output SY(A2) Smart Camera B60...
  • Page 16: Device Status Leds

    3.6.8 Device Status LEDs The Machine Vision Camera has (one) LED to display the current device status. The device status is addition- ally displayed in the software wenglor Discovery Tool and on the device website. Status options: LED color State...
  • Page 17: Ir Filter

    IR Filter The Machine Vision Cameras BBVK with a color sensor are equipped with an IR filter located beneath the gasket of the mount. In contrast, mono cameras feature a transparent glass window instead of an IR filter. The dimensions of the IR filter and transparent glass window are for as follows: Size: 18 ⨯ 14,5 mm Thickness: 1 mm The IR filter and transparent glass window are coated with an anti-reflective layer on one side.
  • Page 18: Complementary Products

    3.10 Complementary Products You can reach the product page of the BBVK Machine Vision Cameras via the link below. From there, navi- gate to the desired product and the corresponding system components. • Complementary products • Spare Parts • Illumination Technology •...
  • Page 19: Transport And Storage

    4. Transport and Storage Transport Upon receipt of shipment, the goods must be inspected for damage in transit. The manufacturer must be informed without delay concerning damage to the package. When returning the package, clear indication of transport damage must be attached. Storage The following points must be taken into consideration with regard to storage: •...
  • Page 20: Installation And Electrical Connection

    5. Installation and Electrical Connection System overview The current system overview is located at BBVK System Overview Mounting and General Installation Instructions ATTENTION! Danger of material damage in case of improper installation! Damage to the product possible. • Observe mounting instructions. CAUTION! Risk of personal injury and damage to property during installation! Damage to personnel and product possible.
  • Page 21: Gige Cable

    • The maximum cable length from the camera to the host, without any switches or repeaters in between, is 30 meters. • It is recommended to use qualified Ethernet cables available in the wenglor web store. 5.2.3 GPIO Cable • The BBVK Machine Vision Camera features an 8-pin General Purpose Input/Output (GPIO) connector located at the rear.
  • Page 22: Electrical Connection

    Electrical Connection Depending on the usage only one or two connections are needed. Connect the Machine Vision Camera to 24 V DC (± 10%). Alternatively, PoE functionality can be used via the LAN connector (e.g. using a PoE switch) (see section „5.3 Electrical Connection“).
  • Page 23: Interface Protocol

    Use the Machine Vision Camera BBVK together with the Machine Vision Controller MVC. You can find an overview of the different versions of the MVC on the portfolio. You can directly connect the camera to the controller and find it with the wenglor Discovery Tool and od the device website.
  • Page 24: Change Index Of Operating Instruction

    Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate down- load area. wenglor sensoric GmbH wenglor Straße 3 88069 Tettnang GERMANY Phone: +49 7542 5399-0 info@wenglor.com For further wenglor contacts please see www.wenglor.com Change Index of Operating Instruction...

Table of Contents
