Honeywell HH492 User Manual

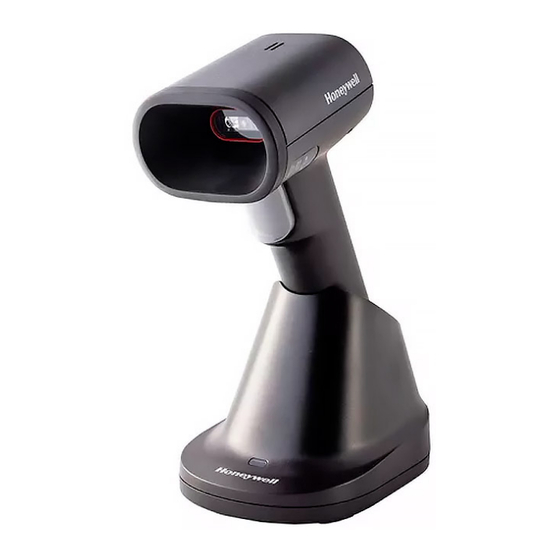

Wireless area-imaging scanner
Hide thumbs Also See for HH492:
Table of Contents

Advertisement

Quick Links

Download this manual
Leitor sem Fio Honeywell HH492
O HH492 é uma nova geração de scanners 2D portáteis sem fio, projetada
para atender a uma ampla variedade de necessidades de escaneamento
dos clientes em várias aplicações e cenários.
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HH492 and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell HH492

Summary of Contents for Honeywell HH492

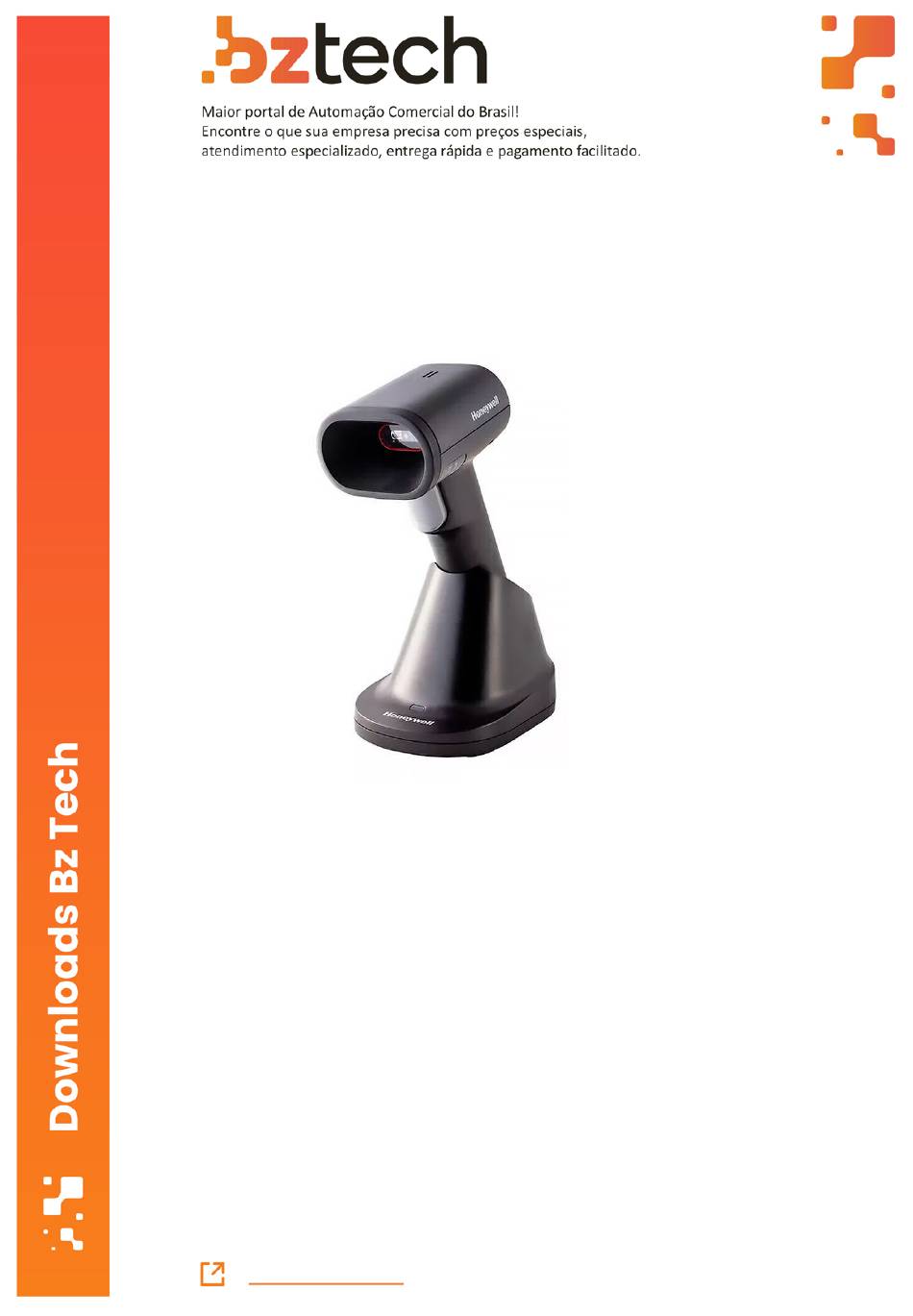

  • Page 1 Leitor sem Fio Honeywell HH492 O HH492 é uma nova geração de scanners 2D portáteis sem fio, projetada para atender a uma ampla variedade de necessidades de escaneamento dos clientes em várias aplicações e cenários. bztech.com.br...
  • Page 2 HH492 Wireless Area-Imaging Scanner User Guide...
  • Page 3 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. HII makes no representation or warranties regarding the information provided in this publication.

  • Page 4: Table Of Contents

    USB HID ............................. 5 Chapter 3 - Cordless System Operation ............7 How the Cordless Communication Base Works..............7 Link the Scanner to a Communication Base............... 7 Unlink/Replace a Linked Scanner ..................7 RF (Radio Frequency) Module Operation................8 HH492 User Guide...
  • Page 5 System Conditions .........................8 Charge Information ........................9 Battery Information for HH492....................9 Battery Recommendations....................9 Safety Precautions for Lithium Batteries ...............9 Beeper and LED Sequences and Meaning................10 Scanner LED Sequences and Beeper ................10 Base LED Meaning .......................10 Reset Scanner ..........................11 Batch Mode ............................11 Chapter 4 - Input/Output Settings.............
  • Page 6 Clear One or All Prefixes or Suffixes................33 Add a Carriage Return Suffix to All Symbologies............33 Prefix Selections ...........................33 Suffix Selections...........................34 Function Code Transmit ......................34 Intercharacter, Interfunction, and Intermessage Delays ..........34 Intercharacter Delay......................35 User Specified Intercharacter Delay ................35 Interfunction Delay.......................36 Intermessage Delay ......................36 HH492 User Guide...
  • Page 7 NEC 2 of 5............................66 Code 93............................67 Straight 2 of 5 Industrial (three-bar start/stop)..............69 Straight 2 of 5 IATA (two-bar start/stop)................70 Matrix 2 of 5 ...........................71 Code 11............................72 Code 128 ............................73 ISBT 128 Concatenation ....................73 GS1-128 ............................75 UPC-A ...............................76 HH492 User Guide...
  • Page 8 Aztec Code ............................99 Chinese Sensible (Han Xin) Code..................101 Postal Codes - 2D........................102 Planet Code Check Digit....................105 Postnet Check Digit ......................105 Australian Post Interpretation ..................106 Postal Codes - Linear ......................106 China Post (Hong Kong 2 of 5)..................107 Korea Post..........................107 HH492 User Guide...
  • Page 9 Show Software Revision ......................109 Test Menu ............................ 109 Reset the Factory Defaults....................110 Chapter 9 - Product Specifications............111 HH492 Scanner Product Specifications ................. 111 Communication Base Product Specifications .............. 112 Depth of Field Charts ......................113 Typical Performance ......................113 Guaranteed Performance ....................
  • Page 10 Postal Symbologies ......................123 ASCII Conversion Chart (Code Page 1252) ..............124 Lower ASCII Reference Table....................125 ISO 2022/ISO 646 Character Replacements ..............128 Keyboard Key References.......................130 HH492 User Guide...
  • Page 11 HH492 User Guide...

  • Page 12: Customer Support

    For our latest contact information, see sps.honeywell.com. Product Service and Repair Honeywell International Inc. provides service for all of its products through service centers throughout the world. Go to sps.honeywell.com and select Support to find a service center near you or to get a Return Material Authorization number (RMA #) before returning a product.
  • Page 13 HH492 User Guide...

  • Page 14: Chapter 1 - Get Started

    HH492 cordless area-imaging scanner. Product specifications, dimensions, warranty, and customer support information are also included. Honeywell barcode scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the barcodes in this guide.

  • Page 15: Connect The Device

    3. The scanner beeps. 4. Verify the scanner operation by scanning a barcode from the Sample Symbols, beginning on page 131. 5. The unit defaults to a USB HID. Mount a Charge Base HH492 User Guide...

  • Page 16: Reading Techniques

    15° to 18° to prevent unwanted reflection. Menu Barcode Security Settings Honeywell scanners are programmed by scanning menu barcodes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Barcode Security settings.

  • Page 17: Reset The Custom Defaults

    It resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings. Activate Custom Defaults HH492 User Guide...

  • Page 18: Chapter 2 - Program The Interface

    CHAPTER PROGRAM THE INTERFACE Note: The HH492’s base only supports USB HID. No other interface is supported. USB HID Scan the following code to program the scanner for USB HID Barcode scanners. USB HID Barcode Scanner HH492 User Guide...
  • Page 19 HH492 User Guide...

  • Page 20: Chapter 3 - Cordless System Operation

    If you need to replace a broken or lost scanner that is linked to a base, scan the Unlink Scanner barcode to unlink the scanner. Use the new scanner to scan the 2D MAC barcode on the bottom of the base to start a new link. Unlink Scanner HH492 User Guide...

  • Page 21: Rf (Radio Frequency) Module Operation

    You will not hear a communication error tone in this mode, but you will hear a short buzz when you press the trigger if the radio communication is not working. Once the radio connection is made, the scanner produces a series of beeps while the data is being transferred to the base. HH492 User Guide...

  • Page 22: Charge Information

    Replace it after the battery is unable to hold an adequate charge. • If you are not sure if the battery or charger is working properly, send it to Honeywell International Inc. or an authorized service center for inspection. Refer to Customer Support on page xi for additional information.

  • Page 23: Beeper And Led Sequences And Meaning

    Red, flash, 1s on, 1s off None Charge error Menu Operating Green, flash 2 beeps Successful menu change Red, blinking Razz or error tone Unsuccessful menu change Base LED Meaning LED Indications Cause Green, on continuously Base power on successfully HH492 User Guide...

  • Page 24: Reset Scanner

    The data is transmitted to the base once the scanner is back in range. Note: Batch Mode is only supported by the Honeywell Communication Base (CCB). Automatic Batch Mode stores barcode data when the scanner is out of range of the base.
  • Page 25 HH492 User Guide...

  • Page 26: Chapter 4 - Input/Output Settings

    Beep on BEL On barcode below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off. *Beep on BEL Off Beep on BEL On HH492 User Guide...

  • Page 27: Trigger Click

    Beeper - Good Read Off * Beeper - Good Read On Beeper Volume – Good Read The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High. Medium HH492 User Guide...

  • Page 28: Beeper Pitch - Good Read

    Beeper Pitch – Error The beeper pitch codes modify the pitch (frequency) of the sound the scanner emits when there is a bad read or error. Default = Razz. * Razz (250 Hz) Medium (3250 Hz) High (4200 Hz) HH492 User Guide...

  • Page 29: Beeper Duration - Good Read

    The number of beeps and LED flashes emitted by the scanner for a bad read or error can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response HH492 User Guide...

  • Page 30: Good Read Delay

    If you want to set your own length for the good read delay, scan the barcode below, then set the delay (from 0 - 30,000 milliseconds) by scanning digits from the Programming Chart, beginning on page 133, then Save. User-Specified Good Read Delay HH492 User Guide...

  • Page 31: Trigger Modes

    After scanning the Read Time-Out barcode, set the time-out duration (from 0-300,000 milliseconds) by scanning digits on the Programming Chart, then scanning Save. Default = 30,000ms. HH492 User Guide...

  • Page 32: Presentation Mode

    20% left, 30% right, 8% top, and 25% bottom. Since Barcode 1 passes through the centering window, it will be read. Barcode 2 does not pass through the centering window, so it will not be read. HH492 User Guide...
  • Page 33 133, then Save. Default Presentation Centering = 40% for Top and Left, 60% for Bottom and Right. Presentation Centering On * Presentation Centering Off Top of Presentation Centering Window Bottom of Presentation Centering Window HH492 User Guide...

  • Page 34: Poor Quality Codes

    It is useful when a complete barcode cannot be seen in one image. This setting does not affect 1D barcode reading. Default = Poor Quality PDF Reading Off. Poor Quality PDF Reading On *Poor Quality PDF Reading Off HH492 User Guide...

  • Page 35: Codegate

    Longer delays are effective in minimizing accidental rereads. Use shorter delays in applications where repetitive barcode scanning is required. Reread Delay only works when in a Presentation Mode (see page 19). Default = Medium. Short (500 ms) HH492 User Guide...

  • Page 36: User-Specified Reread Delay

    2D Reread Delay Off indicates that the time set for Reread Delay used for both 1D and 2D barcodes. Default = 2D Reread Delay Off. * 2D Reread Delay Off Short (1000ms) Medium (2000ms) Long (3000ms) HH492 User Guide...

  • Page 37: Illumination Lights

    During the delay time, the aiming light will appear, but the LEDs won’t turn on until the delay time is over. Default = Off. 200 millisecond 400 millisecond * Off (no delay) HH492 User Guide...

  • Page 38: User-Specified Aimer Delay

    Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Centering Window, Bottom of Centering Window, Left, and Right of Centering Window barcodes. HH492 User Guide...
  • Page 39 Programming Chart, beginning on page 133, then Save. Default Centering = 40% for Top and Left, 60% for Bottom and Right. Centering On * Centering Off Top of Centering Window HH492 User Guide...

  • Page 40: No Read

    Note: After scanning Video Reverse Only, menu barcodes cannot be read. You must scan Video Reverse Off or Video Reverse and Standard Barcodes in order to read menu barcodes. Note: Images downloaded from the unit are not reversed. This is a setting for decoding only. HH492 User Guide...

  • Page 41: Working Orientation

    Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner. Default = Upright. Upright: Vertical, Top to Bottom: (Rotate CW 90°) Upside Down: Vertical, Bottom to Top: (Rotate CCW 90°) * Upright HH492 User Guide...
  • Page 42 Vertical, Bottom to Top Upside Down Vertical, Top to Bottom HH492 User Guide...
  • Page 43 HH492 User Guide...

  • Page 44: Chapter 5 - Data Edit

    It is not necessary to build a message string. The selections in this chapter are only used if you wish to alter the default settings. Default prefix = None. Default suffix = None. • A prefix or suffix may be added or cleared from one symbology or all symbologies. HH492 User Guide...

  • Page 45: Add A Prefix Or Suffix

    133. This corresponds with the hex value for a horizontal tab, shown in the ASCII Conversion Chart (Code Page 1252), beginning on page 124. Step 4. Scan Save, or scan Discard to exit without saving. HH492 User Guide...

  • Page 46: Clear One Or All Prefixes Or Suffixes

    Scan the following barcode if you wish to add a carriage return suffix to all symbologies at once. This action first clears all current suffixes, then programs a carriage return suffix for all symbologies. Add CR Suffix All Symbologies Prefix Selections Add Prefix Clear One Prefix Clear All Prefixes HH492 User Guide...

  • Page 47: Suffix Selections

    Intercharacter, Interfunction, and Intermessage Delays Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage delays slow the transmission of data, increasing data integrity. HH492 User Guide...

  • Page 48: Intercharacter Delay

    Table, page 125. Delay Length Character to Trigger Delay To remove this delay, scan the Delay Length barcode, and set the number of delays to 0. Scan the Save barcode from the Programming Chart, beginning on page 133. HH492 User Guide...

  • Page 49: Interfunction Delay

    1st Scan Transmission 2nd Scan Transmission Intermessage Delay Intermessage Delay To remove this delay, scan the Intermessage Delay barcode, then set the number of delays to 0. Scan the Save barcode from the Programming Chart, beginning on page 133. HH492 User Guide...

  • Page 50: Chapter 6 - Data Format

    If a barcode is read that fails the first data format, the next data format, if there is one, will be used on the barcode data. If there is no other data format, the raw data is output. HH492 User Guide...

  • Page 51: Show Data Format

    If you are creating a data format for Batch Mode Quantity, use 35 for the Code I.D. Note: 99 indicates all symbologies. Step 5. Length Specify what length (up to 9999 characters) of data will be acceptable for this symbology. Scan the four digit data length from the Programming HH492 User Guide...

  • Page 52: Other Programming Selections

    All other formats remain unaffected. • Clear all Data Formats This clears all data formats. • Save Exit and save your data format changes. • Discard Exit without saving any data format changes. Clear One Data Format Clear All Data Formats HH492 User Guide...

  • Page 53: Data Format Editor Commands

    Syntax = F1xx where xx stands for the insert character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 124 for decimal, hex and character codes. HH492 User Guide...

  • Page 54: Send A Number Of Characters

    10 is the number of characters to send for the first line 0D is the hex value for a CR F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: 1234567890 ABCDEFGHIJ <CR> HH492 User Guide...
  • Page 55 Using the barcode above, send all characters up to but not including “AB.” Command string: B900024142 B9 is the “Send all characters up to a string” command 0002 is the length of the string (2 characters) 41 is the hex value for A HH492 User Guide...
  • Page 56 The string is made up of hex values for the characters in the string. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 124 for decimal, hex and character codes. HH492 User Guide...

  • Page 57: Insert Symbology Name

    1234567890**ABCDEFGHIJ <CR> Insert symbology name B3 Insert the name of the barcode’s symbology in the output message, without moving the cursor. Only symbologies with a Honeywell ID are included (see Symbology Charts on page 121). Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 124 for decimal, hex and character codes.
  • Page 58 01 = number of key press events (without the key modifier), 02 is the key modifier for Shift Right, and 1F is the “a” key. If a lower case “a” were to be inserted, B501001F would be entered. HH492 User Guide...

  • Page 59: Move Commands

    Syntax = F6nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved back. Move the cursor to the beginning F7 Move the cursor to the first character in the input message. Syntax = F7. HH492 User Guide...

  • Page 60: Move The Cursor To The End

    Search for the letter “D” in barcodes and send all the data that follows, including the “D.” Using the barcode above: Command string: F844F10D F8 is the “Search forward for a character” command 44 is the hex value for “D” HH492 User Guide...

  • Page 61: Search Backward For A Character

    46 is the hex value for “F” 47 is the hex value for “G” 48 is the hex value for “H” F1 is the “Send all characters” command 0D is the hex value for a CR The data is output as: FGHIJ <CR> HH492 User Guide...

  • Page 62: Search Backward For A String

    Syntax = E7xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page 124 for decimal, hex and character codes. HH492 User Guide...

  • Page 63: Miscellaneous Commands

    (characters to be replaced plus replacement characters); xx defines characters to be replaced and xx defines replacement characters, continuing through zz and zz E4 Example: Replace zeros with CRs in barcode data HH492 User Guide...
  • Page 64 124 for decimal, hex and character codes. Check for a number EC Check to make sure there is an ASCII number at the current cursor position. The format is aborted if the character is not numeric. HH492 User Guide...

  • Page 65: Check For Non-Numeric Character

    If there is no other format, the format fails and the raw data is output as 1234AB. If this barcode is read: the data is output as: AB1234 <CR> HH492 User Guide...

  • Page 66: Data Formatter

    • Data Format Required, Keep Prefix/Suffix Scanned data is modified according to your data format, and prefixes and suffixes are transmitted. Any data that does not match your data format HH492 User Guide...

  • Page 67: Data Format Non-Match Error Tone

    If you wish to hear the error tone when a non-matching barcode is found, scan the Data Format Non-Match Error Tone On barcode. Default = Data Format Non-Match Error Tone On. * Data Format Non-Match Error Tone On HH492 User Guide...

  • Page 68: Primary/Alternate Data Formats

    Format 3. You can switch to Data Format 1 for a single trigger pull by scanning the Single Scan-Data Format 1 barcode below. The next barcode that is scanned uses Data Format 1, then reverts back to Data Format 3. Single Scan-Primary Data Format HH492 User Guide...
  • Page 69 Single Scan-Data Format 1 Single Scan-Data Format 2 Single Scan-Data Format 3 HH492 User Guide...

  • Page 70: Chapter 7 - Symbologies

    TCIF Linked Code 39 (TLC39) • GS1 Composite Codes • UPC-A • GS1 DataBar Expanded • UPC-A • UPC-A/EAN-13 with Extended • GS1 DataBar Limited Coupon Code • GS1 DataBar Omnidirectional • UPC-E0 • GS1 Emulation • UPC-E1 • GS1-128 HH492 User Guide...

  • Page 71: All Symbologies

    Save barcodes from the Programming Chart, beginning on page 133. The minimum and maximum lengths and the defaults are included with the respective symbologies. Codabar <Default All Codabar Settings> Codabar On/Off * On HH492 User Guide...

  • Page 72: Codabar Start/Stop Characters

    When Check Character is set to Validate, but Don’t Transmit, the unit will only read Codabar barcodes printed with a check character, but will not transmit the check character with the scanned data. * No Check Character Validate Modulo 16, but Don’t Transmit Validate Modulo 16 and Transmit HH492 User Guide...

  • Page 73: Codabar Concatenation

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 74: Code 39

    When Check Character is set to Validate, but Don’t Transmit, the unit only reads Code 39 barcodes printed with a check character, but will not transmit the check character with the scanned data. HH492 User Guide...

  • Page 75: Code 39 Message Length

    Code 39 barcodes until it reads a Code 39 barcode that does not have the append trigger. The data is then transmitted in the order in which the barcodes were read (FIFO). Default = Off. * Off HH492 User Guide...

  • Page 76: Code 32 Pharmaceutical (Paraf)

    CR $M GS %C SO $N > US %E DEL %T Character pairs /M and /N decode as a minus sign and period respectively. Character pairs /P through /Y decode as 0 through 9. Full ASCII On HH492 User Guide...

  • Page 77: Code 39 Code Page

    The Do Not Suppress Code 39 setting allows you to scan a mix of Code 39 and Codablock A barcodes. Once Codablock A is enabled, scan the Do Not Suppress Code 39 barcode. Default = Suppress Code 39. * Suppress Code 39 Do Not Suppress Code 39 HH492 User Guide...

  • Page 78: Interleaved 2 Of 5

    Interleaved 2 of 5 barcodes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit. * No Check Digit Validate, but Don’t Transmit Validate and Transmit HH492 User Guide...

  • Page 79: Nec 2 Of 5

    When Check Digit is set to Validate, but Don’t Transmit, the unit only reads NEC 2 of 5 barcodes printed with a check digit, but will not transmit the check digit with the scanned data. HH492 User Guide...

  • Page 80: Code 93

    (page 58) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Code 93 < Default All Code 93 Settings > Code 93 On/Off * On HH492 User Guide...

  • Page 81: Code 93 Message Length

    If this is the case, scan the barcode below, select the code page with which the barcodes were created (see ISO 2022/ISO 646 HH492 User Guide...

  • Page 82: Straight 2 Of 5 Industrial (Three-Bar Start/Stop)

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 83: Straight 2 Of 5 Iata (Two-Bar Start/Stop)

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 84: Matrix 2 Of 5

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 85: Code 11

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 86: Code 128

    3) a variation of Code 128 that supports concatenation of neighboring symbols, and 4) the standard layout for barcodes on a blood product label. Use the barcodes below to turn concatenation on or off. Default =Off. * Off HH492 User Guide...

  • Page 87: Code 128 Message Length

    (see ISO 2022/ISO 646 Character Replacements on page 128), and scan the value and the Save barcode from the Programming Chart, beginning on page 133. The data characters should then appear properly. Code 128 Code Page HH492 User Guide...

  • Page 88: Gs1-128 Message Length

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-80. Minimum Default = 1, Maximum Default = 80. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 89: Upc-A

    * On UPC-A Number System The numeric system digit of a U.P.C. symbol is normally transmitted at the beginning of the scanned data, but can be programmed so it is not transmitted (Off). Default = On. * On HH492 User Guide...

  • Page 90: Upc-A Addenda Required

    * Not Required UPC-A Addenda Separator When this feature is On, there is a space between the data from the barcode and the data from the addenda. When turned Off, there is no space. Default = On. * On HH492 User Guide...

  • Page 91: Upc-A/Ean-13 With Extended Coupon Code

    GS1 Databar code. Scan the GS1 Output On code below to scan and output only the GS1 Databar code data. Default = GS1 Output Off. * GS1 Output Off GS1 Output On HH492 User Guide...

  • Page 92: Upc-E0

    UPC-E Expand expands the UPC-E code to the 12 digit, UPC-A format. Default = Off. * Off UPC-E0 Addenda Required When Required is scanned, the scanner will only read UPC-E barcodes that have addenda. Default = Not Required. Required * Not Required HH492 User Guide...

  • Page 93: Upc-E0 Addenda Separator

    Default = On. * On UPC-E0 Leading Zero This feature allows the transmission of a leading zero (0) at the beginning of scanned data. To prevent transmission, scan Off. Default = On. * On HH492 User Guide...

  • Page 94: Upc-E1

    Most U.P.C. barcodes lead with the 0 number system. For these codes, use UPC-E0 (page 79). If you need to read codes that lead with the 1 number system, use the UPC-E1 On selection. Default = Off. UPC-E1 On * UPC-E1 Off HH492 User Guide...

  • Page 95: Ean/Jan-13

    UPC-A Converted to EAN-13 * Do not Convert UPC-A EAN/JAN-13 Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of the scanned data or not. Default = On. * On HH492 User Guide...

  • Page 96: Ean/Jan-13 Addenda Required

    * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-13 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-13 barcodes that have addenda. Default = Not Required. Required * Not Required HH492 User Guide...

  • Page 97: Isbn Translate

    EAN-13 with Extended Coupon Code (page 78). ISBN Translate When On is scanned, EAN-13 Bookland symbols are translated into their equivalent ISBN number format. Default = Off. * Off EAN/JAN-8 <Default All EAN/JAN-8 Settings> EAN/JAN-8 On/Off * On HH492 User Guide...

  • Page 98: Ean/Jan-8 Check Digit

    * 2 Digit Addenda Off 5 Digit Addenda On * 5 Digit Addenda Off EAN/JAN-8 Addenda Required When Required is scanned, the scanner will only read EAN/JAN-8 barcodes that have addenda. Default = Not Required. Required * Not Required HH492 User Guide...

  • Page 99: Ean/Jan-8 Addenda Separator

    When Check Character is set to Validate Type 10/11 and Transmit, the scanner will only read MSI barcodes printed with the specified type check character(s), and will transmit the character(s) at the end of the scanned data. HH492 User Guide...

  • Page 100: Msi Message Length

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 4-48. Minimum Default = 4, Maximum Default = 48. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 101: Gs1 Databar Omnidirectional

    GS1 DataBar Omnidirectional < Default All GS1 DataBar Omnidirectional Settings > GS1 DataBar Omnidirectional On/Off * On GS1 DataBar Limited < Default All GS1 DataBar Limited Settings > GS1 DataBar Limited On/Off * On HH492 User Guide...

  • Page 102: Gs1 Databar Expanded

    Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 4-74. Minimum Default = 4, Maximum Default = 74. Minimum Message Length Maximum Message Length Codablock A <Default All Codablock A Settings> Codablock A On/Off HH492 User Guide...

  • Page 103: Codablock A Message Length

    <Default All Codablock F Settings> Codablock F On/Off * Off If you are reading Code 128 barcodes, Codablock F should remain disabled. If you are enabling Codablock F, you should disable Code 128 (see Code 128 on page 73). HH492 User Guide...

  • Page 104: Codablock F Message Length

    PDF417 Message Length Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750. Minimum Message Length HH492 User Guide...

  • Page 105: Micropdf417

    PDF417 barcodes. When this selection is enabled, these multiple barcodes are assembled into a single data string. Default = On. * On MicroPDF417 < Default All MicroPDF417 Settings > MicroPDF417 On/Off * Off HH492 User Guide...

  • Page 106: Gs1 Composite Codes

    Note: If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the GS1 Databar code. See Coupon GS1 DataBar Output (page 78) for further information. HH492 User Guide...

  • Page 107: Gs1 Emulation

    GS1-128 AIM ID, ]C1 (see Symbology Charts on page 121). If EAN8 to EAN13 Conversion is scanned, all EAN8 barcodes are converted to EAN13 format. Default = GS1 Emulation Off. GS1-128 Emulation GS1 DataBar Emulation HH492 User Guide...

  • Page 108: Tcif Linked Code 39 (Tlc39)

    TLC39 On is selected. The linear component may be decoded as Code 39 even if TLC39 is off. Default = Off. * Off QR Code < Default All QR Code Settings > QR Code On/Off This selection applies to both QR Code and Micro QR Code. * On HH492 User Guide...

  • Page 109: Qr Code Message Length

    QR Code that is scanned and buffered. One long beep is emitted after the last QR Code is scanned and the data is complete. Not compatible with Presentation mode. Default = One Scan. * One Scan HH492 User Guide...

  • Page 110: Qr Code Page

    128), and scan the value and the Save barcode from the Programming Chart, beginning on page 133. The data characters should then appear properly. QR Code Page Data Matrix < Default All Data Matrix Settings > Data Matrix On/Off * On HH492 User Guide...

  • Page 111: Data Matrix Message Length

    128), and scan the value and the Save barcode from the Programming Chart, beginning on page 133. The data characters should then appear properly. Data Matrix Code Page MaxiCode < Default All MaxiCode Settings > MaxiCode On/Off * Off HH492 User Guide...

  • Page 112: Maxicode Message Length

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-3832. Minimum Default = 1, Maximum Default = 3832. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 113: Aztec Append

    If this is the case, scan the barcode below, select the code page with which the barcodes were created (see ISO 2022/ISO 646 HH492 User Guide...

  • Page 114: Chinese Sensible (Han Xin) Code

    Scan the barcodes below to change the message length. Refer to Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 1-7833. Minimum Default = 1, Maximum Default = 7833. Minimum Message Length Maximum Message Length HH492 User Guide...

  • Page 115: Postal Codes - 2D

    * 2D Postal Codes Off Single 2D Postal Codes: Australian Post On British Post On Canadian Post On Intelligent Mail Barcode On Japanese Post On KIX Post On Planet Code On Also see Planet Code Check Digit, page 105. Postal-4i On HH492 User Guide...

  • Page 116: Combination 2D Postal Codes

    Post On Intelligent Mail Barcode and Postnet with B and B’ Fields On Postnet and Postal-4i On Postnet and Intelligent Mail Barcode On Postal-4i and Intelligent Mail Barcode On Postal-4i and Postnet with B and B’ Fields On HH492 User Guide...
  • Page 117 Postal-4i, and Intelligent Mail Barcode On Postnet, Postal-4i, and Intelligent Mail Barcode On Planet Code, Postal-4i, and Postnet with B and B’ Fields On Planet Code, Intelligent Mail Barcode, and Postnet with B and B’ Fields On HH492 User Guide...

  • Page 118: Planet Code Check Digit

    * Don’t Transmit Check Digit Postnet Check Digit This selection allows you to specify whether the check digit should be transmitted at the end of Postnet data. Default = Don’t Transmit. Transmit Check Digit * Don’t Transmit Check Digit HH492 User Guide...

  • Page 119: Australian Post Interpretation

    * Bar Output Numeric N Table Alphanumeric C Table Combination C and N Tables Postal Codes - Linear The following lists linear postal codes. Any combination of linear postal code selections can be active at a time. HH492 User Guide...

  • Page 120: China Post (Hong Kong 2 Of 5)

    Message Length Description (page 58) for additional information. Minimum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80. Minimum Message Length Maximum Message Length Korea Post <Default All Korea Post Settings> Korea Post HH492 User Guide...

  • Page 121: Korea Post Message Length

    Minimum Message Length Maximum Message Length Korea Post Check Digit This selection allows you to specify whether the check digit should be transmitted or not. Default = Don’t Transmit. Transmit Check Digit * Don’t Transmit Check Digit HH492 User Guide...

  • Page 122: Chapter 8 - Utilities

    The programming function will still occur, but in addition, the content of that programming code is output to the terminal. Note: This feature should not be used during normal scanner operation. HH492 User Guide...

  • Page 123: Reset The Factory Defaults

    See Cordless System Operation beginning on page 41 for additional information. Menu Commands, beginning on page 244, list the factory default settings for each of the commands (indicated by an asterisk (*) on the programming pages). HH492 User Guide...

  • Page 124: Chapter 9 - Product Specifications

    CHAPTER PRODUCT SPECIFICATIONS HH492 Scanner Product Specifications Parameter Specification Mechanical Height 6.53 inches (165.78mm) Length 3.33 inches (84.72mm) Width 2.52 inches (64mm) Weight 6.7 oz. (190g) Electrical Battery: Lithium Ion 2850 mAH lithium-ion Number of Scans Up to 50,000 per charge...

  • Page 125: Communication Base Product Specifications

    41° F to +104° F (5° C to +40° C) Storage -40° F to +140° F (-40° C to +60° C) Humidity Up to 95% non-condensing Mechanical Drop Operational after 2 drops from 3.3 feet (1 m) to concrete HH492 User Guide...

  • Page 126: Depth Of Field Charts

    5 mil Code 39 10 mil Code 39 14.4 13 mil UPC-A 15.7 20 mil Code 39 24.2 6.7 mil PDF417 10 mil PDF417 10 mil Data Matrix 10 mil QR Code 20 mil QR Code 12.8 NYS DL HH492 User Guide...

  • Page 127: Guaranteed Performance

    5 mil Code 39 10 mil Code 39 13 mil UPC-A 14.6 20 mil Code 39 17.9 6.7 mil PDF417 10 mil PDF417 10.2 10 mil Data Matrix 10 mil QR Code 20 mil QR Code NYS DL HH492 User Guide...

  • Page 128: Standard Connector Pinouts

    Standard Connector Pinouts Note: The following pin assignments are not compatible with some Honeywell legacy products. Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage not covered by your warranty.

  • Page 129: Required Safety Labels

    Required Safety Labels Scanner Illumination output Part Number, Compliance Serial Number Label and Revision location Information location Base Part Number, Serial Number, Revision, and Compliance Information location HH492 User Guide...

  • Page 130: Chapter 10 - Maintenance And Troubleshooting

    (e.g., acetone) on the housing or window. Solvents may damage the finish or the window. Caution: Ensure all components are dry prior to mating the scanner with charging accessories or other peripheral devices. Mating wet components may cause damage not covered by the warranty. HH492 User Guide...

  • Page 131: Inspect Cords And Connectors

    When properly seated, the connector is held in the scanner’s handle by a flexible retention tab. The interface cable is designed to be field replaceable. • Order replacement cables from Honeywell or from an authorized distributor. • When ordering a replacement cable, specify the cable part number of the original interface cable.

  • Page 132: Troubleshoot

    Troubleshoot Troubleshoot a Base Note: Visit the Services and Support section of our website (sps.honeywell.com) to check for the latest software for both the scanner and the base. If your base is not functioning properly, review the following troubleshooting guidelines to try to isolate the problem.
  • Page 133 The scanner won’t read your barcode at all. • Scan the sample barcodes in the back of this manual. If the scanner reads the sample barcodes, check that your barcode is readable. • Verify that your barcode symbology is enabled (see Chapter HH492 User Guide...

  • Page 134: Chapter A - Reference Charts

    Code 39 (supports Full ASCII mode) 0, 1, 3, 4, 5, 7 TCIF Linked Code 39 (TLC39) Code 93 and 93i 0-9, A-Z, 0, 1, 3, 4 EAN-13 (including Bookland EAN) EAN-13 with Add-On EAN-13 with Extended Coupon Code EAN-8 HH492 User Guide...

  • Page 135: 2D Symbologies

    0, 1, 2, 3, 8, 9, A, B, C UPC-A UPC-A with Add-On UPC-A with Extended Coupon Code UPC-E UPC-E with Add-On UPC-E1 Add Honeywell Code ID 5C80 Add AIM Code ID 5C81 Add Backslash 5C5C Batch mode quantity 2D Symbologies...

  • Page 136: Postal Symbologies

    QR Code Micro QR Code Postal Symbologies Honeywell Possible modifiers Postal Symbology All Symbologies Australian Post British Post Canadian Post China Post InfoMail Intelligent Mail Barcode Japanese Post KIX (Netherlands) Post Korea Post Planet Code Postal-4i Postnet HH492 User Guide...

  • Page 137: Ascii Conversion Chart (Code

    PrtScn CTRL+ R Backspace CTRL+ S Save Back Tab CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ] CTRL+ ^ CTRL+ - ⌂ NP Enter HH492 User Guide...

  • Page 138: Lower Ascii Reference Table

    „ ä Insert 0x52 … à Delete 0x53 † å Home 0x47 ‡ ç 0x4F ˆ ê Page Up 0x49 ‰ ë Page Down 0x51 Š è Right ALT 0x38 ‹ ï Right CTRL 0x1D HH492 User Guide...
  • Page 139 0x1D ° ░ ± ▒ ² ▓ ³ │ ´ ┤ µ ╡ ¶ ╢ · ╖ ¸ ╕ ¹ ╣ º ║ » ╗ ¼ ╝ ½ ╜ ¾ ╛ ¿ ┐ À └ Á ┴ HH492 User Guide...
  • Page 140 σ æ µ ç τ è Φ é Θ ê Ω ë δ ì ∞ í φ î ε ï ∩ ð ≡ ñ ± ò ≥ ó ≤ ô ⌠ õ ⌡ ö ÷ ÷ ≈ HH492 User Guide...

  • Page 141: Iso 2022/Iso 646 Character Replacements

    (standard ASCII) Automatic National Character ISO/IEC 2022 2 (default) Replacement Binary Code page Default “Automatic National Character replacement” will select the below Honeywell Code Page options for Code128, Code 39 and Code 93. United States ISO/IEC 646-06 Canada ISO /IEC 646-121...
  • Page 142 ù à ò è ì § Ã Ç Õ ã ç õ ° § ¡ Ñ ¿ ° ñ ç ˜ · ¡ Ñ Ç ¿ ´ ñ ç ¨ ISO / IEC 646 National Character Replacements HH492 User Guide...

  • Page 143: Keyboard Key References

    1F 20 21 22 23 24 25 26 27 28 29 5C 61 66 2E 2F 30 31 32 33 34 35 36 37 5D 62 67 4F 54 59 3A 3B 3C 3E 3F 38 40 105 Key European Style Keyboard HH492 User Guide...

  • Page 144: Sample Symbols

    0 123456 7890 EAN-13 9 780330 290951 Code 128 Code 39 Code 128 BC321 Codabar A13579B Code 93 Straight 2 of 5 Industrial 123456 123456-9$ Matrix 2 of 5 6543210 RSS-14 PDF417 Car Registration (01) 00123456789012 Postnet Zip Code HH492 User Guide...
  • Page 145 SAMPLE SYMBOLS (CONTINUED) Data Matrix QR Code Test Symbol Numbers MaxiCode Test Message Micro PDF417 Test Message 4-CB (4-State Customer Barcode) 01,234,567094,987654321,01234567891 ID-tag (UPU 4-State) J18CUSA8E6N062315014880T HH492 User Guide...

  • Page 146: Programming Chart

    PROGRAMMING CHART HH492 User Guide...
  • Page 147 PROGRAMMING CHART (CONTINUED) Save Discard Reset Note: If you make an error while scanning the letters or digits (before scanning Save), scan Discard, scan the correct letters or digits, and Save again. HH492 User Guide...
  • Page 149 Honeywell 855 S. Mint St. Charlotte, NC 28202 sps.honeywell.com ™ HH492-EN-UG-01 Rev B 2/23...
