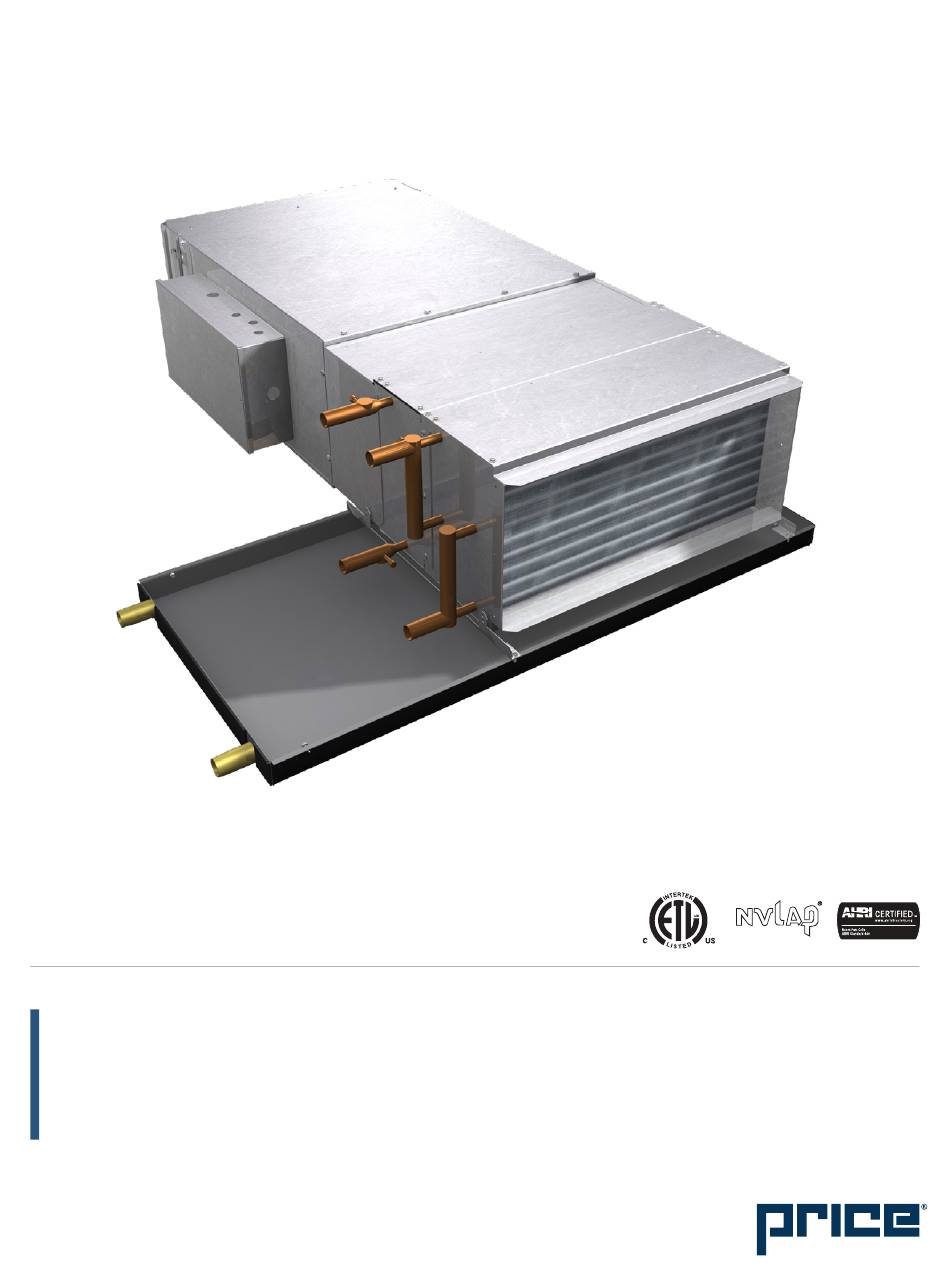

- Page 1 MANUAL – INSTALLATION NVLAP LAB CODE 200874-0 Fan Coils - Horizontal Genesis & Genesis Quiet FCHG / FCHGQ Series v200 – Issue Date: 08/23/24 © 2024 Price Industries Limited. All rights reserved.
-
Page 2: Table Of Contents
fan coils – horizontal genesis & genesis quiet TABLE OF CONTENTS Product Overview Safety Precautions ............1 Caution to Contractors ..........1 Receiving Inspection ............. 1 FCHG / FCHGQ Accessories ........6 FCHG / FCHGQ Accessories Data ........ 7 Installation & Mounting Instructions Product Installation ............ -
Page 3: Product Overview Safety Precautions
C. Use this unit only in the manner All Price Fan Coil units are inspected before shipment. After unpacking the assembly, intended by the manufacturer. If you check it for damage. If any damage to the products is found, report it immediately have any questions, contact the to the delivery carrier. - Page 4 fan coils – horizontal genesis & genesis quiet PRODUCT OVERVIEW fchg - DiMensional Data Optional: (CAD) Bottom Access Doors 4” x 6 ” 2” (51) (102 x 171) ” (83) Slip & Drive 14” (356) Optional: Auxiliary Electrical Control Box Drain Pan for Foam Lined Connection Piping Package...
- Page 5 fan coils – horizontal genesis & genesis quiet PRODUCT OVERVIEW fchg - DiMensional Data Dimensions, in. [mm] Unit Max. Fan Flow, Outlet Duct Size Size CFM [L/s] 500 [236] 21 [533] 9 [229] 21 [533] 10 1/2 [267] 800 [377] 21 [533] 9 [229] 21 [533]...
- Page 6 fan coils – horizontal genesis & genesis quiet PRODUCT OVERVIEW fchgq - DiMensional Data Optional: (CAD) Bottom Access Doors 4” x 6 ” 2” (51) (102 x 171) ” (83) Slip & Drive 14” (356) Optional: Auxiliary Electrical Control Box Drain Pan for Foam Lined Connection Piping Package...
- Page 7 fan coils – horizontal genesis & genesis quiet PRODUCT OVERVIEW fchgq - DiMensional Data Dimensions, in. [mm] Unit Max. Fan Flow, Outlet Duct Size Size CFM [L/s] 495 [233] 21 [533] 9 [229] 21 [533] 10 1/2 [267] 760 [358] 21 [533] 9 [229] 21 [533]...
-
Page 8: Fchg / Fchgq Accessories
SLIP & DRIVE ELECTRICAL CONTROL BOX ” (248) Primary / Fresh Air Inlet * 10” 1” (25) (254) * FRESH AIR INLET IS SUPPLIED WITH PRICE MULTIPOINT SP300 FLOW SENSOR AND LOW LEAKAGE 1” (25) AIR FLOW CONTROL DAMPER. ” SENSOR... -
Page 9: Fchg / Fchgq Accessories Data
fan coils – horizontal genesis & genesis quiet PRODUCT OVERVIEW fchg / fchgq accessories Data Filter Sizes, in [mm] Primary / Fresh Return Air Inlet - A, In [Mm] Unit Size 6 [152] or 8 [203] 10 [254] Size 20 7/8 [530] 10 1/4 [260] 20/30 20 7/8 [530]... -
Page 10: Installation & Mounting Instructions Product Installation
INSTALLATION & MOUNTING INSTRUCTIONS Product installation oPtional hanger BracKets Price Fan Coils are designed to be durable and manufactured for sturdy construction. the units must still be handled with great care and no force or pressure applied to the coil or piping. -
Page 11: Drain Pan
fan coils – horizontal genesis & genesis quiet INSTALLATION & MOUNTING INSTRUCTIONS Drain Pan caution: Do not insulate over drain slots. Make sure drain slots in coils are not blocked so water can drain. (Figure 4). Ensure to use the upper mounting holes when mounting nearest to drain pan and the lower holes when mounting Position the drain connection so that the mounting bracket at the end of the drain pan. -
Page 12: Fchgq Silencer
fan coils – horizontal genesis & genesis quiet INSTALLATION & MOUNTING INSTRUCTIONS fchgq silencer figure 1 Install slip cleats onto the discharge of the unit. Hook the diverter edge into the discharge of the unit as shown in Figure 1. Ensure the bottom flange extending from the silencer engages into the bottom slip cleat (Figure 1). -
Page 13: Fchg/Fchgq Filter Replacement
fan coils – horizontal genesis & genesis quiet INSTALLATION & MOUNTING INSTRUCTIONS fchg/fchgq filter replacement figure 1 to remove the filter, open the snap latches on the side of the filter rack, and remove the filter access panel (Figure 1). Slide out the filter (Figure 2). -
Page 14: Start Up & Operation
fan coils – horizontal genesis & genesis quiet INSTALLATION & MOUNTING INSTRUCTIONS start up & operation Air System Balancing All duct-work must be complete and connected, and all General grilles, filters, access doors and panels must be properly Before beginning start up operation, familiarize yourself with installed to establish actual system operating conditions the unit, options, accessories, controls so you understand BEFORE beginning air balancing operations. - Page 15 fan coils – horizontal genesis & genesis quiet INSTALLATION & MOUNTING INSTRUCTIONS Filters Unit Size the filters should be replaced on a regular basis. the time 20 7/8 [530] 10 1/4 [260] interval between each replacement should be established 20 7/8 [530] 10 1/4 [260] based on regular inspection of the filter and should be 25 7/8 [657]...
-
Page 16: Maintenance
Fan and Motor Coils Disconnect all incoming power before servicing the unit. Disconnect all incoming power before servicing the unit. Price Fan Coil units are supplied with permanently to access coils for servicing, remove blower and motor lubricated motors. assemblies. -
Page 17: Fchg/Fchgq Electric Coil Removal Instructions
fan coils – horizontal genesis & genesis quiet MAINTENANCE fchg/fchgq electric coil removal instructions figure 1 caution: Disconnect all incoming power before any electrical installation or service is performed on the unit(s). Ensure line power is off to the Fan Coil Control Panel. the control panel contains hazardous voltages when energized;... -
Page 18: Replacement Parts
fan coils – horizontal genesis & genesis quiet MAINTENANCE replacement Parts Component Part Number Description 019169-001 115V - 1/8 HP (Size 20) 019169-006 208-240V - 1/4 HP (Size 20) 019169-002 277V - 1/8 HP (Size 20) PSC Fan Motors 019152-002 115V - 1/4 HP (Sizes 30 &... - Page 19 fan coils – horizontal genesis & genesis quiet MAINTENANCE replacement Parts Component Part Number Description Fuse Block 019459-001 Fuse Block 600V 30A 01903-001 115/277V Single Pole Disconnect Switch 019903-003 240V two Pole 019874-001 5µF 019874-002 10µF Capacitors 019874-003 15µF 019874-006 7.5µF 019874-007 20µF...
-
Page 20: Installation Checklist
fan coils – horizontal genesis & genesis quiet MAINTENANCE installation checklist Receiving & Inspection Cooling/heating Connections Electrical Connections Unit received undamaged Unit mounted level and plumb Refer to unit wiring diagram All parts accounted for Proper access available for unit and ... - Page 21 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com. © 2024 Price Industries Limited. All rights reserved.
