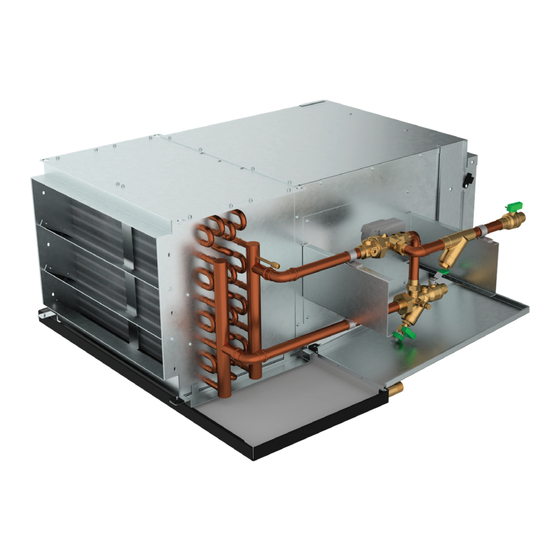

Horizontal high performance fan coils

Advertisement

Quick Links

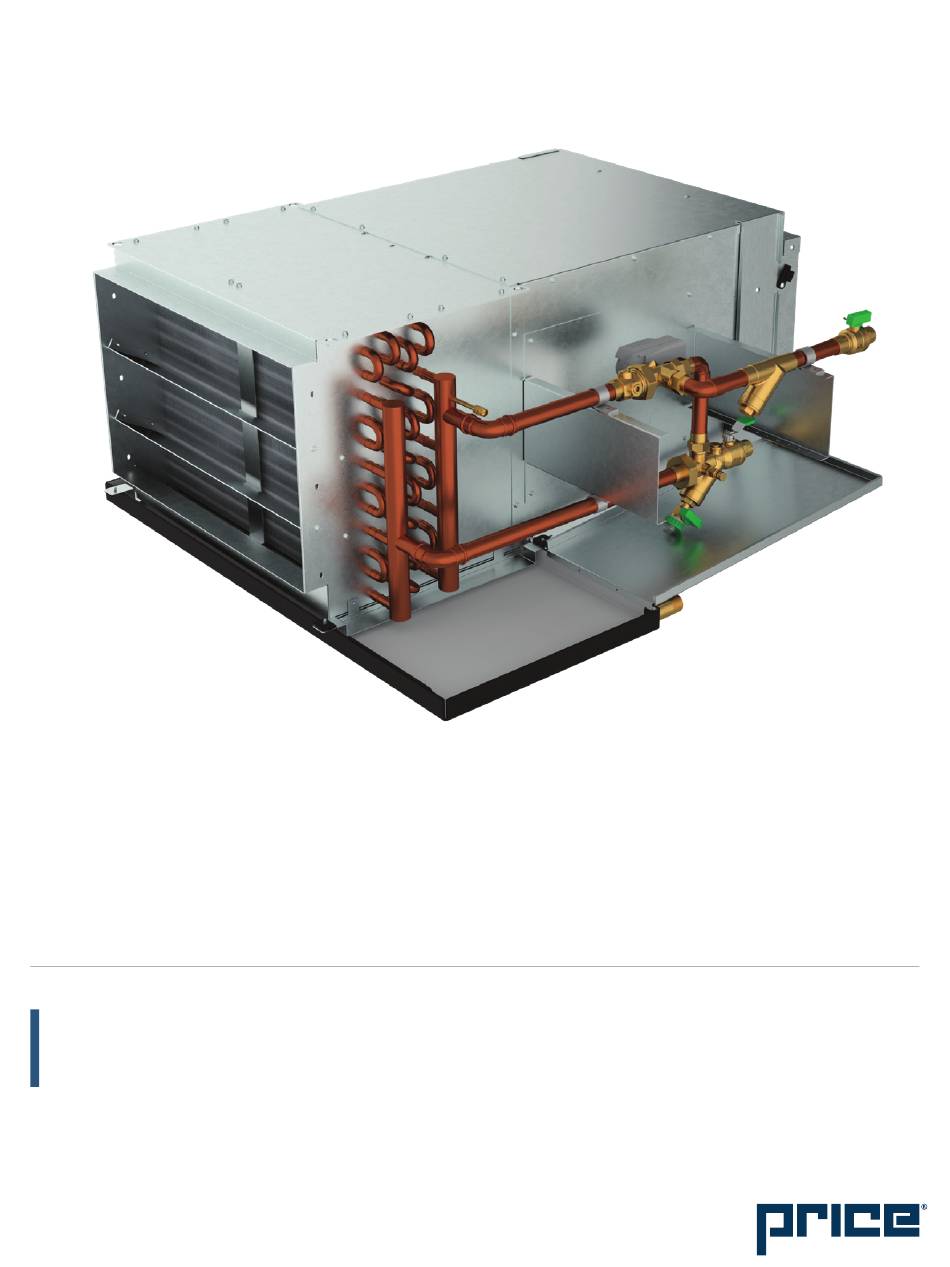

MANUAL – INSTALLATION
Horizontal High Performance Fan Coils
FHP
v200 – Issue Date: 08/14/24
© 2024 Price Industries Limited. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Price FHP

  • Page 1 MANUAL – INSTALLATION Horizontal High Performance Fan Coils v200 – Issue Date: 08/14/24 © 2024 Price Industries Limited. All rights reserved.
  • Page 2: Table Of Contents

    HORIZONTAL HIGH PERFORMANCE FAN COILS TABLE OF CONTENTS Product Overview Safety Precautions ............1 Caution to Contractors ..........2 Caution to Users ............2 Receiving Inspection ............2 Dimensional Data ............3 Installation & Mounting Instructions General ................4 Electrical Connection .............4 Cooling/Heating Pipe Connections ........5 Mounting the Unit ............5 Start Up &...
  • Page 3: Product Overview Safety Precautions

    HORIZONTAL HIGH PERFORMANCE FAN COILS PRODUCT OVERVIEW Safety Precautions WARNING: Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. WARNING: When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. WARNING: Protect flammable materials nearby when brazing, Use flame and heat protection barriers where needed.
  • Page 4: Caution To Contractors

    Receiving Inspection All Price Fan Coil units are inspected before shipment. After unpacking the assembly, check it for damage. If any damage to the products is found, report it immediately to the delivery carrier. Ensure that all packing material is removed from the inside of the unit, especially around the blower wheel and coil section.
  • Page 5: Dimensional Data

    HORIZONTAL HIGH PERFORMANCE FAN COILS PRODUCT OVERVIEW DIMENSIONAL DATA - FHPE FHPP FHPE Length (L) Model Size Width (W) Height (H) Cooling or Preheat or Heating Only Reheat 16 in. (406 mm) 20 in. (508 mm) 24 in. (610 mm) 14 ¼...
  • Page 6: Installation & Mounting Instructions General

    General Price Fan coils are designed to be durable and manufactured for sturdy construction. The units must still be handled with great care and no force or pressure applied to the coil or piping. When handled, the unit should be carried in an upright position holding onto the mounting points on the horizontal units and holding onto the bottom of the vertical units.
  • Page 7: Cooling/Heating Pipe Connections

    HORIZONTAL HIGH PERFORMANCE FAN COILS INSTALLATION & MOUNTING INSTRUCTIONS Cooling/Heating Pipe Connections The piping must be installed in a counter flow configuration to achieve optimal performance. The water inlet should be located on the leaving air side of the coil and the outlet should be located on the entering air side of the coil as shown below. The valve packages are easily damaged when introduced to excessive amounts of heat.
  • Page 8 HORIZONTAL HIGH PERFORMANCE FAN COILS INSTALLATION & MOUNTING INSTRUCTIONS Install ductwork to comply with ASHRAE Fundamentals Handbook, local building codes and the National Electric Code. Locate unit support in accordance with the mechanical and structural plans. Hanging rods should be securely attached to joints or to mounting anchors which are properly secured to slab construction with lugs or poured in place anchors.
  • Page 9 LOCATIONS (HB) EXPOSED REAR RETURN 2024-02-05 DATE DRAWN: SUBMITTAL DATE: SPEC. SYMBOL: 2024-02-05 SHEET 1 OF 4 FHP-1-1 © Copyright PRICE INDUSTRIES 2023 SHEET 1 OF 4 FHP-1-1 FASTEN HANGER MAX 3.5 [88] BRACKET TO CEILING MAX 3.5 [88] ISOLATOR...
  • Page 10: Start Up & Operations

    HORIZONTAL HIGH PERFORMANCE FAN COILS INSTALLATION & MOUNTING INSTRUCTIONS Start Up & Operation General Before beginning start up operation, familiarize yourself with the unit, options, accessories, controls so you understand proper system operation. All personnel should have a good working knowledge of general start-up procedures and have the appropriate start-up and balancing guides available for consultation.
  • Page 11: Water System Balancing

    HORIZONTAL HIGH PERFORMANCE FAN COILS INSTALLATION & MOUNTING INSTRUCTIONS FAN AND MOTOR ROTATION Water System Balancing A complete knowledge of the hydronic system, its components, and controls is essential to proper water system balancing and this procedure should not be attempted by unqualified personnel. The system must be complete and all components must be in operating condition BEFORE beginning water system balancing operations.
  • Page 12: Maintenance Safety

    MAINTENANCE Safety Periodic maintenance should be performed by a train professional. Price Fan Coil units are supplied with permanently lubricated motors. Fan and Motor Disconnect all incoming power before servicing the unit. Price Fan Coil units are supplied with permanently lubricated motors.
  • Page 13: Filter(S)

    HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Filter(s) Inspect return air filters on a regular basis to avoid excessive restriction of air flow. Clean or replace filters as required. Filter can be accessed from either side of unit or from the bottom. CAUTION: Do not operate unit without filters or filter access panels installed.
  • Page 14 HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Component Part # Description 509377-102 FHP 06, 1 ROW, 2 CIR, LH 509377-103 FHP 06, 1 ROW, 3 CIR, LH 509377-202 FHP 08, 1 ROW, 2 CIR, LH 509377-203 FHP 08, 1 ROW, 3 CIR, LH...
  • Page 15 HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Component Part # Description 509384-102 FHP 06, 2 ROW, 2 CIR, RH 509384-103 FHP 06, 2 ROW, 3 CIR, RH 509384-202 FHP 08, 2 ROW, 2 CIR, RH 509384-203 FHP 08, 2 ROW, 3 CIR, RH...
  • Page 16 HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Component Part # Description 509380-102 FHP 06, 4 ROW, 2 CIR, LH 509380-104 FHP 06, 4 ROW, 4 CIR, LH 509380-202 FHP 08, 4 ROW, 2 CIR, LH 509380-204 FHP 08, 4 ROW, 4 CIR, LH...
  • Page 17 HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Component Part # Description 509387-103 FHP 06, 6 ROW, 3 CIR, RH 509387-104 FHP 06, 6 ROW, 4 CIR, RH 509387-203 FHP 08, 6 ROW, 3 CIR, RH 509387-204 FHP 08, 6 ROW, 4 CIR, RH...
  • Page 18 FHP 18, 26 019186-001 ECM Cable, 2 ft. (FHP 06, 08, 10) FHP 06, 08, 10 019186-002 ECM Cable, 6 ft. (FHP 12, 16, 18, 20, 26) FHP 12, 16, 18, 20, 26 232953-100 232953-100 ECM Speed Controller ECM Speed Controller...
  • Page 19: Installation Checklist

    HORIZONTAL HIGH PERFORMANCE FAN COILS MAINTENANCE Installation Checklist Receiving & Inspection  Receiving & inspection  Unit received undamaged  All parts accounted for  Unit arrangement/hand correct Handling and Installation  Unit mounted level and plumb  Correct electrical service ...
  • Page 20 HORIZONTAL HIGH PERFORMANCE FAN COILS NOTES HORIZONTAL HIGH PERFORMANCE FAN COILS - Manual | priceindustries.com...
  • Page 21 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com. © 2024 Price Industries Limited. All rights reserved.
